10 Pair Module 50 Pair MDF Terminal Block PC / PPT With Dust Cover Back Frame

  • 10 Pair Module 50 Pair MDF Terminal Block PC / PPT With Dust Cover Back Frame
  • 10 Pair Module 50 Pair MDF Terminal Block PC / PPT With Dust Cover Back Frame
  • 10 Pair Module 50 Pair MDF Terminal Block PC / PPT With Dust Cover Back Frame
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number XL-011E-50MDF
Minimum Order Quantity 200
Price Negotiable
Delivery Time Negotiable
Supply Ability 10000PCS/WEEK

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 50 Pair MDF TERMINAL BLOCK Connection Phosphor Bronze
Standard Cat5e Color White Body Grey Base
Application Networking, Telecommunication Material PC Or PPT
Highlight

110 wiring block

,

110 connecting block
Leave a Message
Product Description

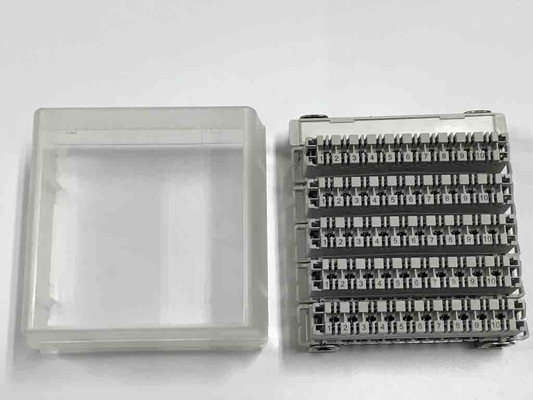

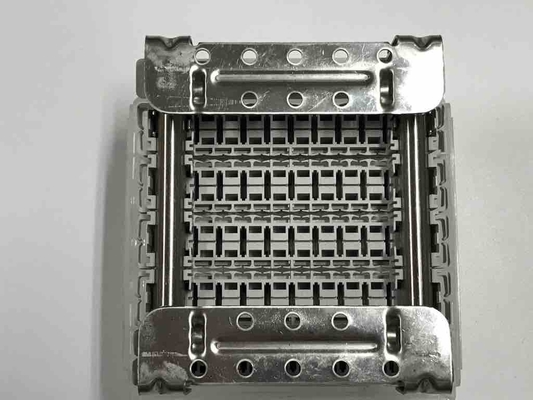

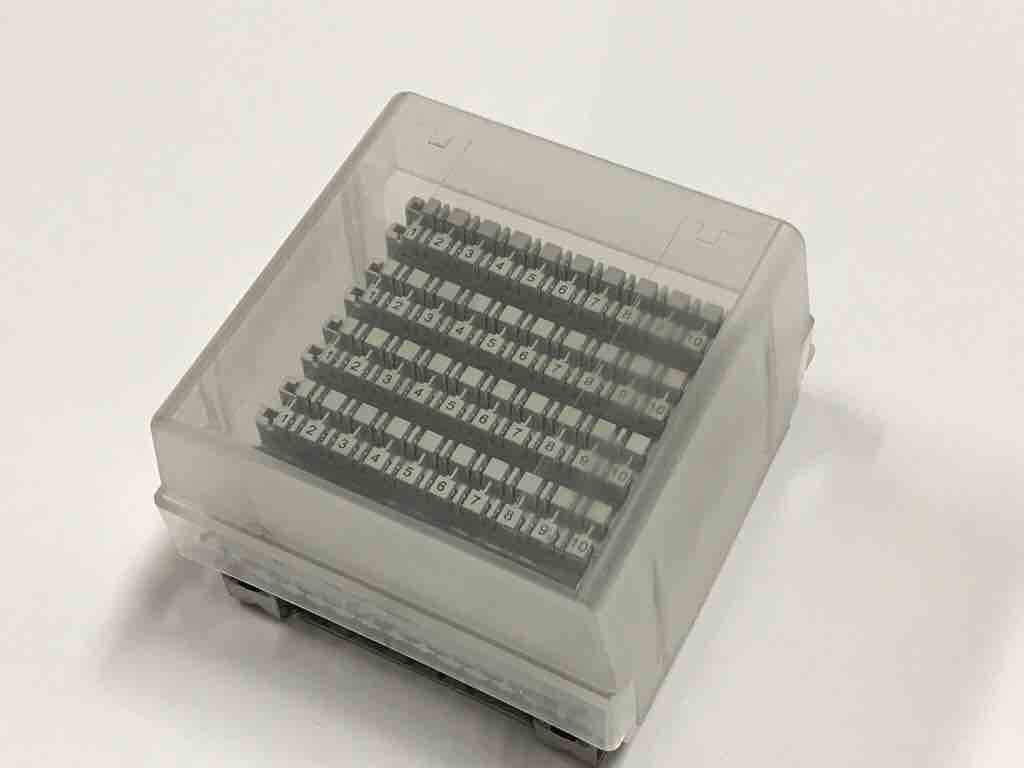

Highband 10 Pair module 50 pair MDF terminal block with dust cover back frame



Highband disconnection modules are superior high speed data and voice cross connect modules.

These modules enable high speed LAN and WAN systems maximum headroom in transmission performance. These modules are with phosphor bronze IDC contacts with silver plating. The gas tight contacts ensure a reliable and long lasting connection.

These modules can be either patched, jumpered and used in a patch by exception configuration.

High performance cross connection system enabling the user to both jumper and patch on the same module. Very easy to install and maintain. Terminates 2 four pair UTP cables. Recommended use is to hard wire the entire system and use patch cords(which will over-ride the installed connections) for all the adds, moves and changs. Modules also allow for centre port test  access for individual date circuits, minimising any network downtime. Identical dimensions to 10 pair LSA-PLUS Serier 2 modules, allowing normal mounting hardware to be used. Dedicated frames also available -see frames, racks and cabinets section.



Technical Parameters

Working Temperature:
-25℃ ～ 60℃
Storage Temperature:
-30℃ ～80℃
Relative Humidity:
≤85%(+30℃)
Complying Standard:
ANSI/EIA/TIA 568A Cat.5
ISO/IEC 11801 Cat.5

Patching Cycles:
750
Wire Re-terminations:
>200
Wire Diameter for Copper Conductors:
0.40 - 0.65 mm (26-22 AWG)
Wire Diameter for Insulations:
0.70 - 1.40 mm
Rated Voltage:
150 VAC
Insulation Resistance (500 VDC):
>500,000 MΩ
Flammability Rating:
UL 94 V-0
