Follow 3M Standard 9700G/TR 10 Pair Splicing Connection Module for Telecommunications with Gel

Place of Origin China
Brand Name ANSHI
Certification ISO9001, SGS, UL
Model Number AS-3M-10
Document 10 Pairs Splicing - gel.pdf
Minimum Order Quantity 100 pieces
Price $1~$2
Packaging Details 1 piece/bag
Delivery Time 1~25 Work Day
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability 1000 pieces / day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 10 Pair Splicing Module Meterial PC
Specifications 10 Pairs Application Telecommunication
Color Yellow And Transparent Cover
Highlight

110 connecting block

,

mdf terminal block

Leave a Message
Product Description

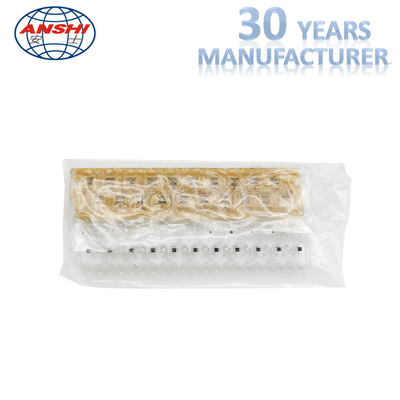

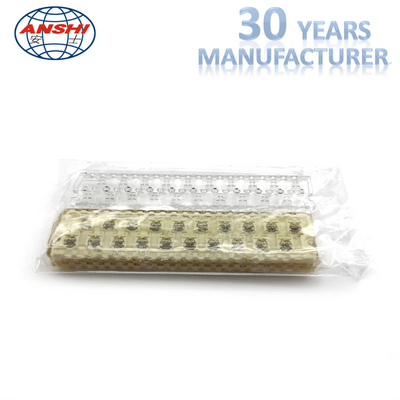

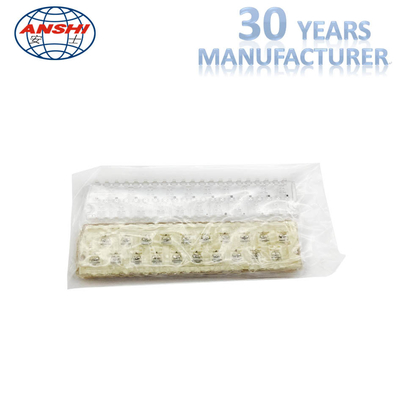

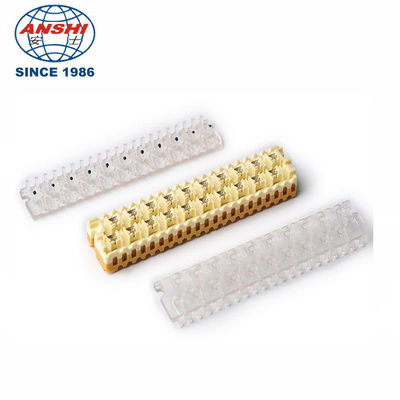

Follow 3M Standard 9700G/TR 10 Pair Splicing Connection Module for Telecommunications with Gel
Application

apply to telephone wiring connection.

Description
  • 10 pairs Splicing Module designed for 0.65mm-0.32mm (22-28AWG) cooper or copper-clad steel connector with insulation diameters 1.65mm(0.065’’)
  • The module can be filled with a moisture resistant compound in order to provide moisture proof connections.
  • The connector can provide total environmental sealing around IDC-contacts.
Dimensions
  • The length is 165mm (6.50 in). The width is 15.2 mm (0.60in). The crimp Height is 9.8mm (0.39in)
Material suitability
  • The material component
    • Plastic part: durable polycarbonate with durable, high impact material, Transparent lid and yellow main body
    • Contact pin: phosphor bronze with plated tin surface
  • All materials is suitable for operation in the tropic with maximum temperature up to 70℃
  • All materials used in the connectors shall be non-toxic and dermatologically safe

Connectors can retain the electrical & mechanical properties in the test report over working temperature range -30℃ to 70℃ and humidity range of 0% to 95%

Follow 3M Standard 9700G/TR 10 Pair Splicing Connection Module for Telecommunications with Gel 0
Optional:

10 Pairs Splicing Module Without Gel Filled-Equip 3M Standard 9700D/TR
