8 Pairs Krone Disconnection Module CAT5E Highband Module Cat5e Standard
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PC Or ABS | Connection | Phosphor Bronze |
|---|---|---|---|
| Standard | Cat5e | Install | Install With XL-020 Or XL-020D |
| Color | White Body Grey Base | Application | Networking, Telecommunication |
| Highlight | 110 connecting block,mdf terminal block |
||
Product Description

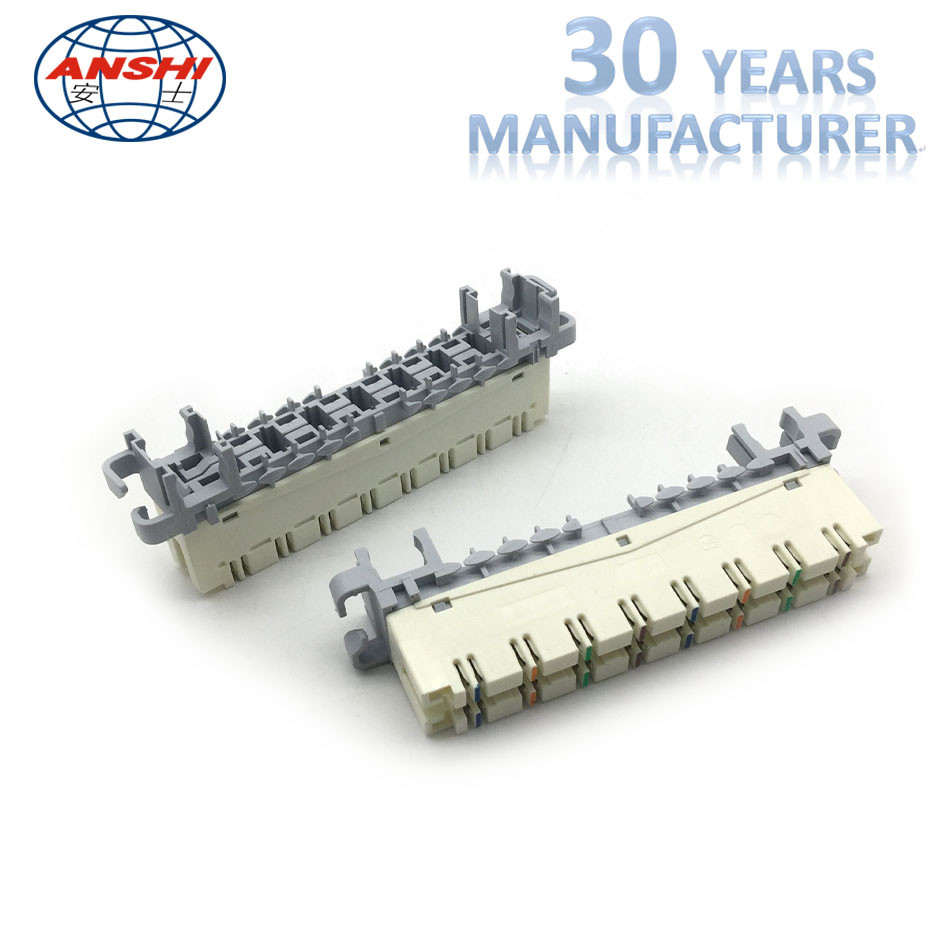

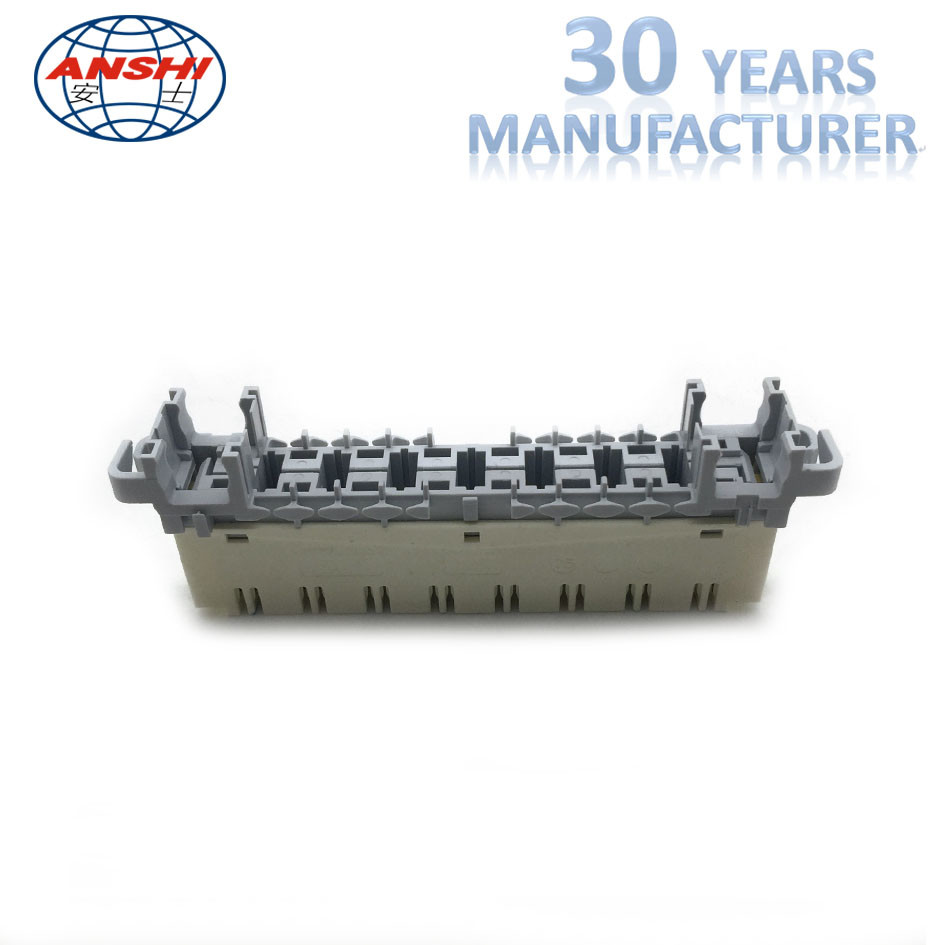

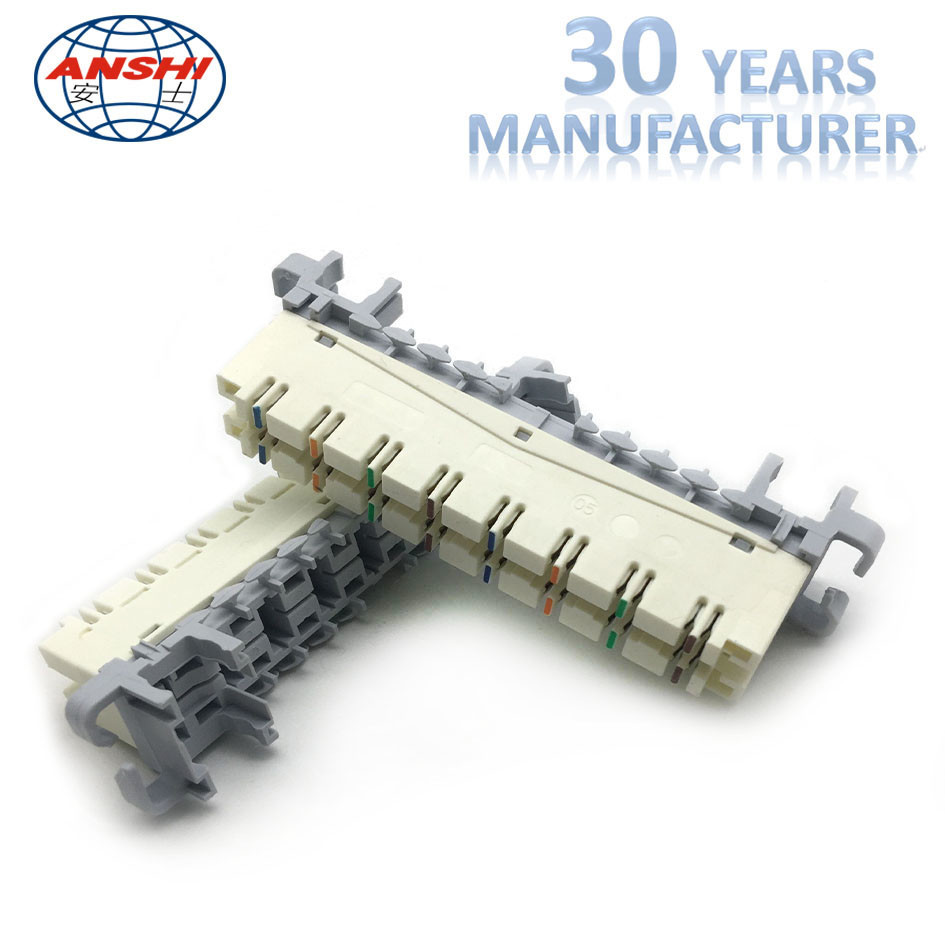

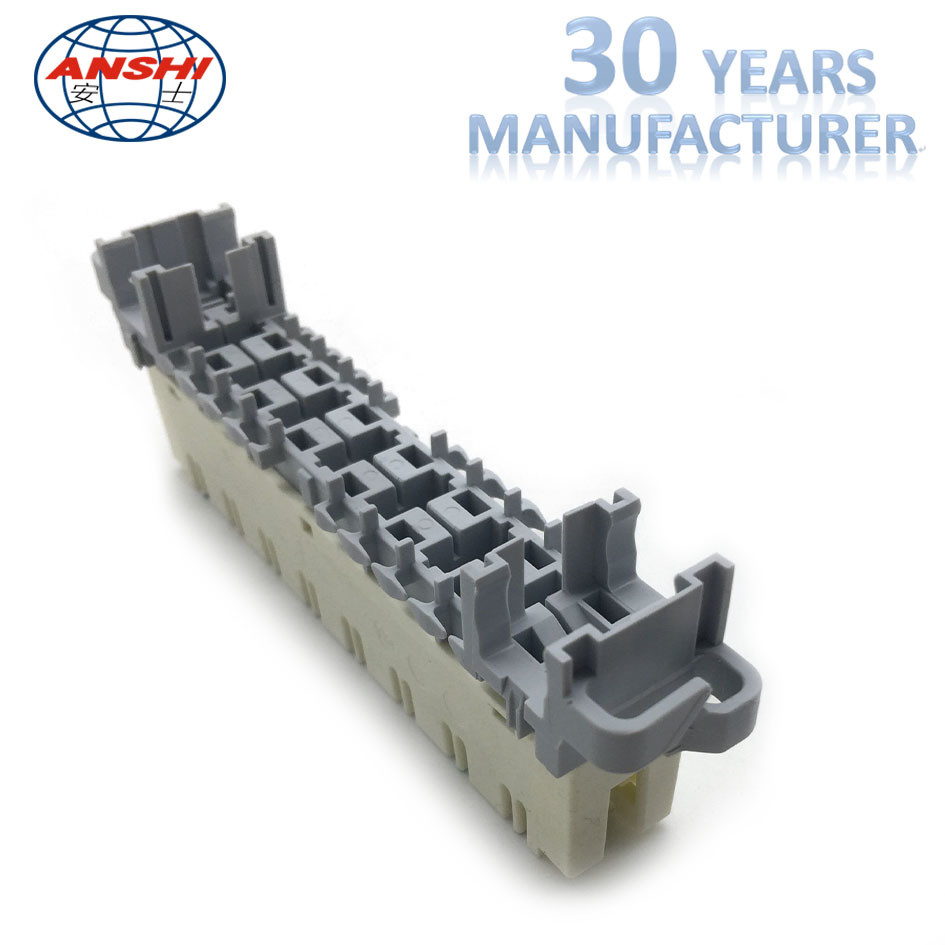

CAT5E Highband Module Krone 8 Pairs Disconnection Module
High performance cross connection system enabling the user to both jumper and patch on the same module. Very easy to install and maintain. Terminates 2 four pair UTP cables. Recommended use is to hard wire the entire system and use patch cords(which will over-ride the installed connections) for all the adds, moves and changs. Modules also allow for centre port test access for individual date circuits, minimising any network downtime. Identical dimensions to 10 pair LSA-PLUS Serier 2 modules, allowing normal mounting hardware to be used. Dedicated frames also available -see frames, racks and cabinets section.
| Environment for use | |
| Operating temperature range | -40ºC to +80ºC |
| Transmission, performance and reliability | 93% non-condensing |
| Transmission, performance and reliability: | ANSI/EIA/TIA 568A Cat. 5 |
| ISO/IEC 11801 Cat. 5 | |
| Number of patching cycles | 750 |
| Number of wire reterminations: | ≥200 |
| Wire diameter range for solid and stranded copper conductors | 0.40 - 0.65 mm* (26-22 AWG) |
| Wire insulation diameter range (PE, PVC) |
0.70 - 1.40 mm |
| Voltage rating | 150 VAC |
| Insulation resistance | 500,000 MW at 500 VDC |
| Safety: | UL 1863 |
Features:
1) From the closet to the workstation, the 110 connect system offers a complete,
cost-effective means to wire a building for unshielded and shielded twisted pair,
fiber optic and coaxial applications
2) Patch panels and jacks are available in T568A, T568B and RJ25C (3-pair) wiring
standards, making the 110 connect system adaptable to changing requirement
3) With clamp modules used for 19" cabinet, complete reed construction and
modularization design
4) IDC: phosphor bronze and silver plating (20 - 50 inches)
5) Suitable diameter: 0.4 - 0.6mm
6) Durability: 200 cycles
7) Anti-burn performance: plastic parAt made from PC, meeting international
standards
8) Intermediate resistance: no more than 2.5mΩ in normal atmosphere pressure
(not including bulk resistor)
9) Insulated resistance: no less than 1,000MΩ in normal atmosphere
pressure
10) The intensity of anti-currency: DC 1,000V (AC, 700V), no puncture and
flash-over phenomenon in one minute. In accordance with industry standard
11) Label: clear label to ensure easy operation
12) Type: 110 modules
13) Provides 100 pairs, without-legs
14) Standard: international ISO / IEC11801 and TIA / EIA568
15) Combines easy termination features of 110-style punch-down system with proven
performance characteristics of modular jacks.
