High Speed, High Quality, Best Service
|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Product Name:||Fiber Optic Cross Connection Cabinet||Material:||SMC|
|Capacity:||288 Core||Application:||FTTH System|
optical distribution box,
fiber optic splitter box

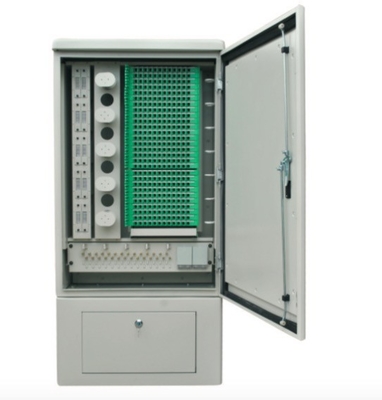

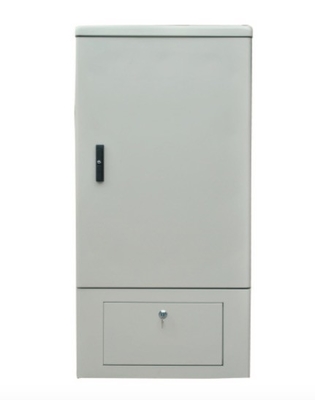

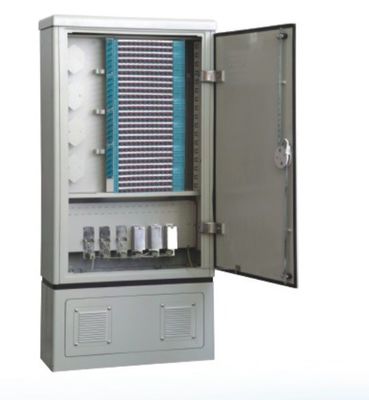

Fiber optic Cable transfer Cabinet is the equipment mainly used for outdoor cable connections, distribution and dispatch, and through optical fiber activities and patch cable connect the fiber optic cable and the core flexible.
GXF series holds excellent function, secure, reliable, flexible dispa-tching core,applied to optical fiber LAN,MANS ,OAN and so on.
Cabinet was made by high-intensity SMC unsaturated polyester anticorrosion special synthetic material, high-performance insulation can withstand drastic ch-anges in climate and poor working conditions
2. Product Characters
1) Cabinet can withstand accidents or vicious destruction.
2) Could make the optical weld directly and have the disk storage functions.
3) The Splice Tray could be extraction and operate out of the cabinet.
4) Adapter installation of 35°ramps to ensure that fiber radius of curvature is larger than 40mm ,avoiding arc to shoot eyes directly.
5) Card-fit installation of FC, SC adaptor.
6) Being with fixing,stripping and grounding protection device of a reliable op-tical cable.
7) To provide all kinds of accessories,to avoid the accidents of fiber by mec-hanical damage.
8) Fiber distribution and dispatch both are positive operation.
3. Performance (Use conditions )
1) Environmental temperature:-20°C~+60°C
2) Storage temperature: -25°C~+55°C
3) Relative humidity: ≤95%(+40°C)
4) Atmospheric pressure: 70Kpa~106Kpa
5) Photoelectric properties: Connector loss (including the insertion,swaps ,repeat)≤0.5Db
6) Insertion loss: ≤0.2dB
7) Additional losses interchangeability :≤0.2dB
8) Additional repetitive loss: ≤0.1dB(inserted after1000)
9) Return loss: FC/PC≥45 dB FC/UPC≥50 dB FC/APC≥60 dB
10) Plug durable life greater than 1000.
11) The insulation resistance between high-pressure defense and the rack is greater than 1000 M Ω (500 V / DC)
12) Making contact DC-3000V for 1 minute between rack with high press-ure defense and the rack , having no breakdown and no arc phenomenon oc-curring .
4. Adaptability indicator
1) Nominal wavelength: 850nm,1310nm,1550nm.
2) Light activities connector: GB/T12707-1991 meeting the standard requir-ements of GB/T12707-1991
3) Optical fiber, optical cable should be consistent with the provisions of GB/T11819-1989 and GB/T7424-1987.
5. Sealing performance
1) Dust-free: Superior to the requirements of GB4208/IP65 level.
2) Waterproof: 80 KPa pressure, ± 60 ° impact Cabinet 15 minutes, the watercan not enter the Cabinet.
6. Cabinet load capacity
1) Cabinet capable not less than 1000 N positive pressure.
2) Side of the surface be capable of not less than 500 N positive pressu-re.
3) Door hinge can be capable of not less than 300 N perpendicular to t-he door of the pressure.
4) Impact resistance: X, Y, Z three axial impose the peak speed is 300 m/s, for the duration of the impact is 6 ms, without any damage and injury.
1. Dimension : 1450*760*320mm(H*W*D)
2. capacity : 288 core
