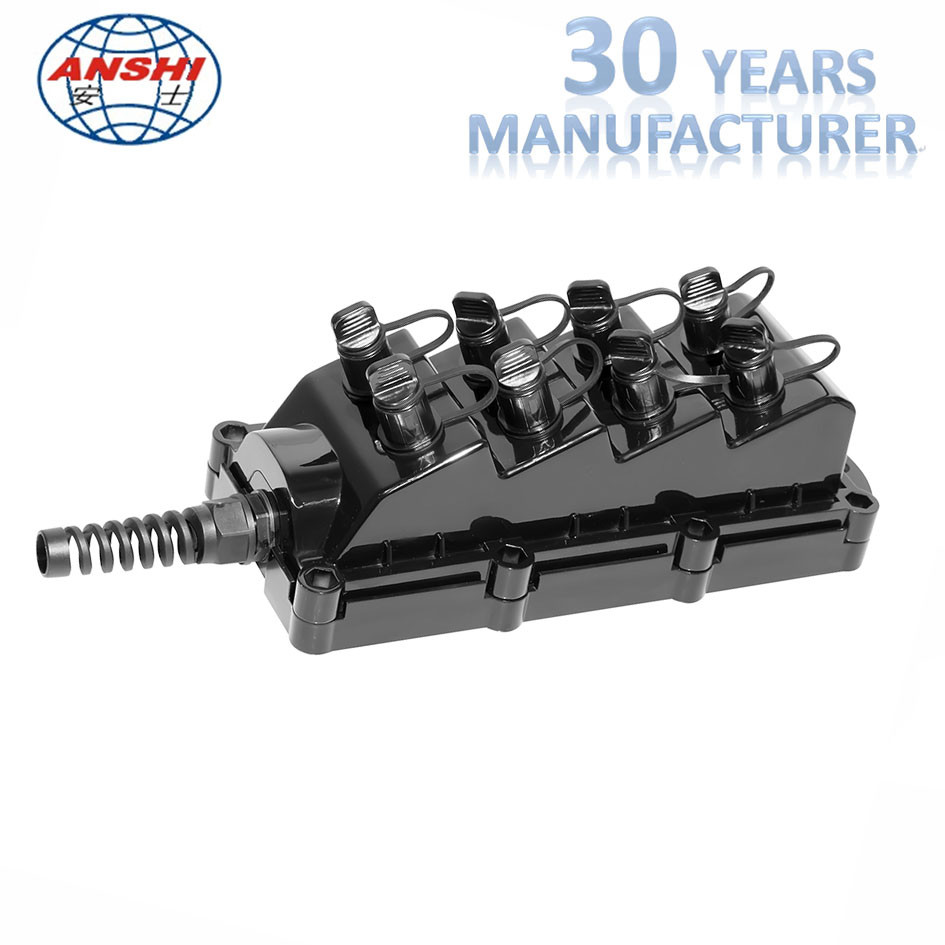

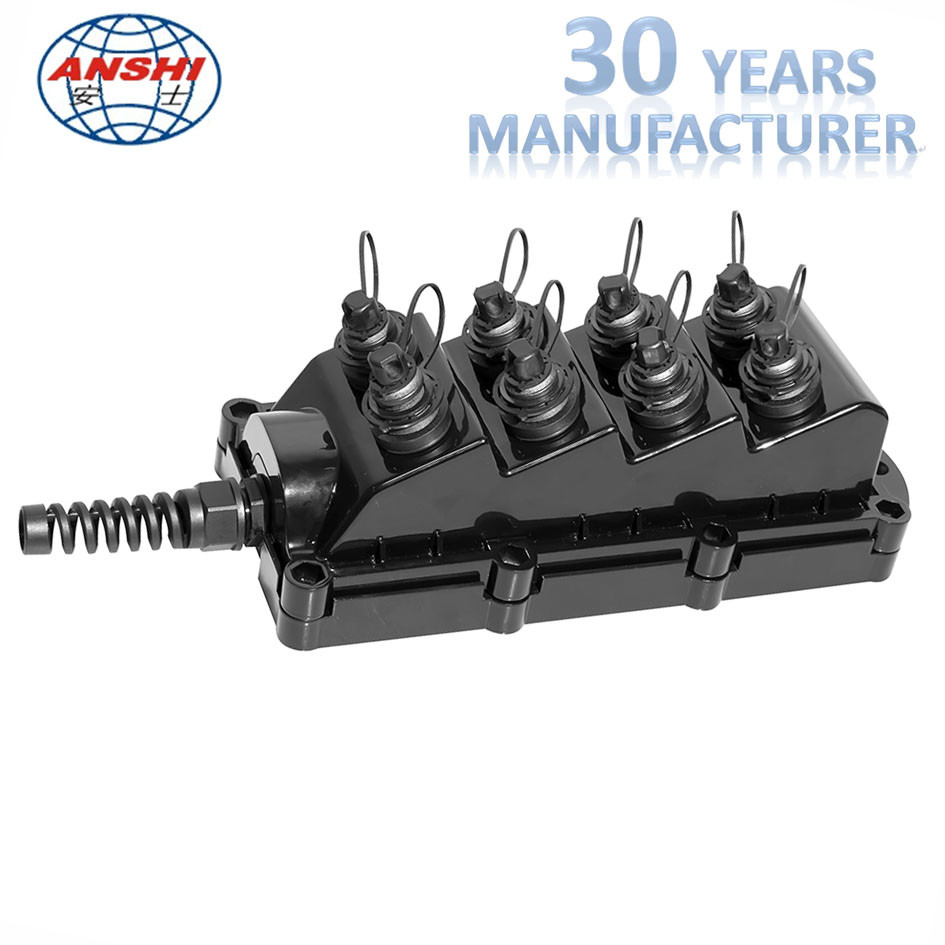

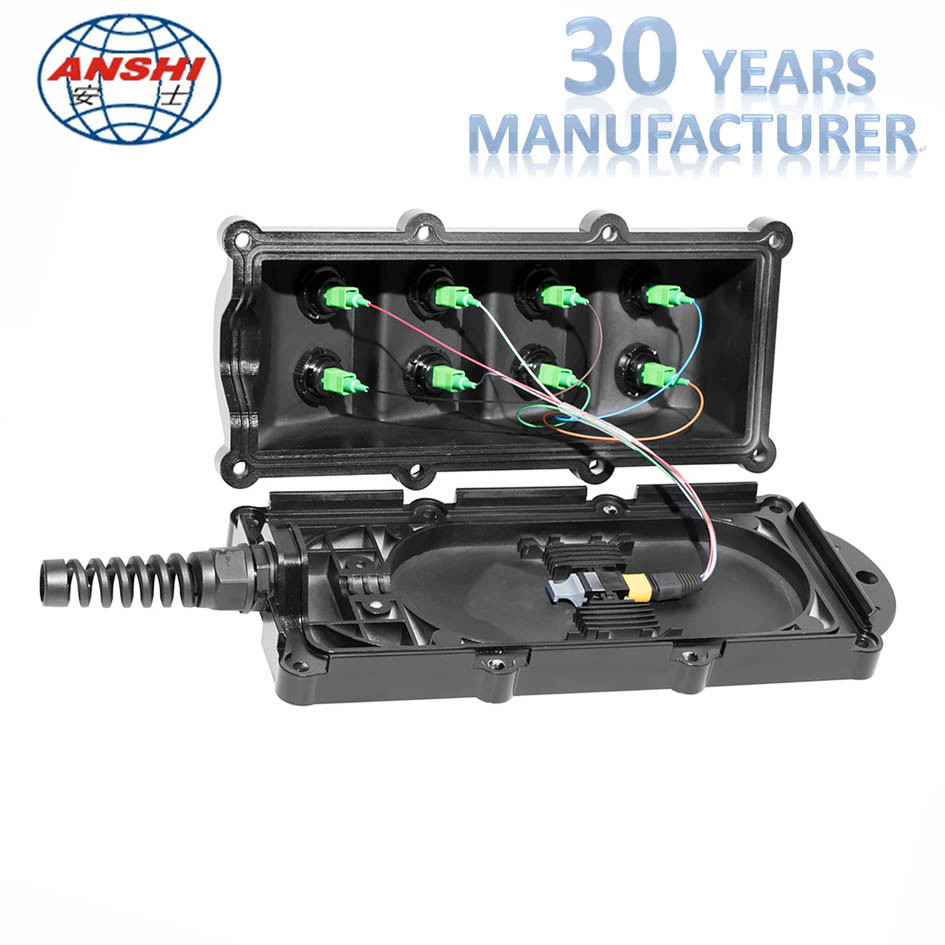

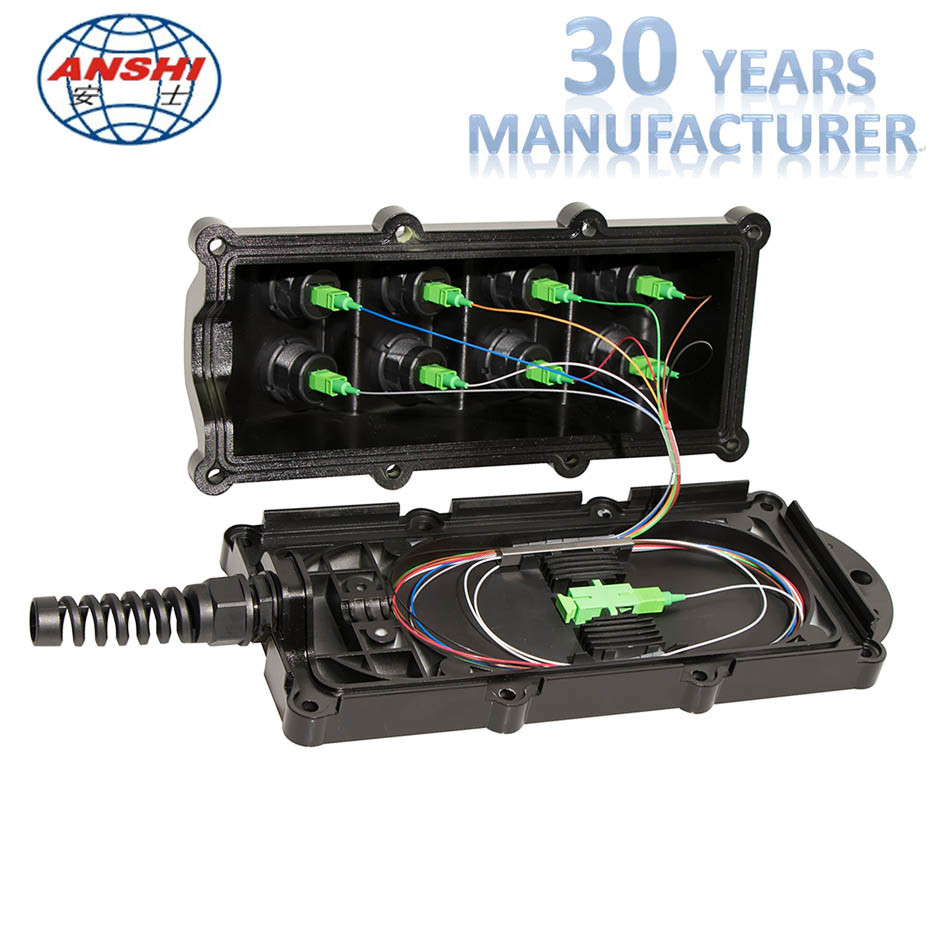

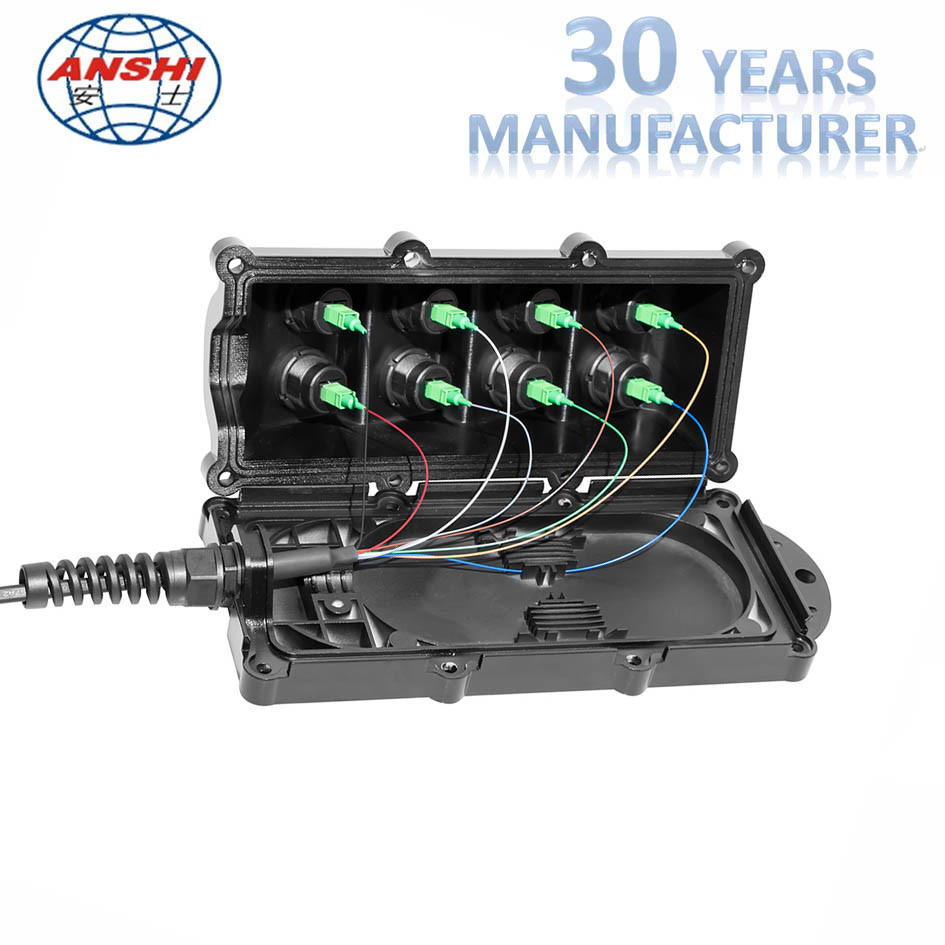

ROHS Outdoor Fiber Optic Distribution Box

  • ROHS Outdoor Fiber Optic Distribution Box
  • ROHS Outdoor Fiber Optic Distribution Box
  • ROHS Outdoor Fiber Optic Distribution Box
  • ROHS Outdoor Fiber Optic Distribution Box
  • ROHS Outdoor Fiber Optic Distribution Box
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-ODF-FDB-ODVA
Minimum Order Quantity Can Discuss
Price Negotiable
Supply Ability 1000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Mini Waterproof Enclosure Adapter Port Type MINI SC,H Connector (Optitap),MINI IPMPO,ODVA
Capacity 8 Core Fire Retardant UL 94V-0
No. Of Fusion Max. 24 PCS No. Of PLC 1 ~ 2 PCS
Cable Type Hybrid Or Non-hybrid Cable Strength Member Armoured Or Non-armoured
Highlight

rohs outdoor fiber optic distribution box

,

rohs outdoor optical distribution box

,

armoured outdoor fiber optic distribution box
Leave a Message
Product Description

Fiber Optical ODLC/ODC/Fullax/ODVA/Mini SC

/Waterproof Multifunction Box Fiber Optic Terminal Box





FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.



Applications


1. FTTH field
2. FTTA field
3. Trunk cable connecting
4. Prospecting or military communication



Features


1. High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
2. Factory-sealed or field assembly.
3. IP68 water and dust protection
4. Strong enough: working under 1200N pulling force long term.
5. From 2 to 12 ports for single or multifiber harsh connectors.
6. Available with PLC or splice sleeve for fiber divide .
7. IP68 waterproof rating.
8. Wall-mounting, aerial installation or holding pole installation.
9. Decreased angle surface and height make sure no connector interfering when operating.
10. Meet IEC 61753-1 standard.
11. Cost effective: save 40% operating time.



Product Parameters
Dimensions(LxWxH)
200x120x85mm(4Core)
280x120x85mm(8Core)
Ingress Protection
IP68
Working Temperature
-40~85℃
Cable Strength Member
Armoured or Non-armoured
Cable Type
Hybrid or non-hybrid
Round Cable OD
5.0mm to 14.0mm
Flat Cable Dimension
4.6x8.9mm
Cable Jacket Material
LSZH,PE or TPU
Bending Radius
20D
Cable Crush Resistance
200N/cm long term
Tensile Strength
1200N long term
UV Resistance
ISO 4892-3
Fire Protection Rating
UL94-V0
Number of PLC
1to 2pcs
Number of Fusion Protection Steeve
1to 24pcs





Configuration

Standard
Optional
Input Hole
PG13.5
MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Output Hole
MINI SC,H connector
MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Extend Hole
Closed
MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized



ROHS Outdoor Fiber Optic Distribution Box 0
