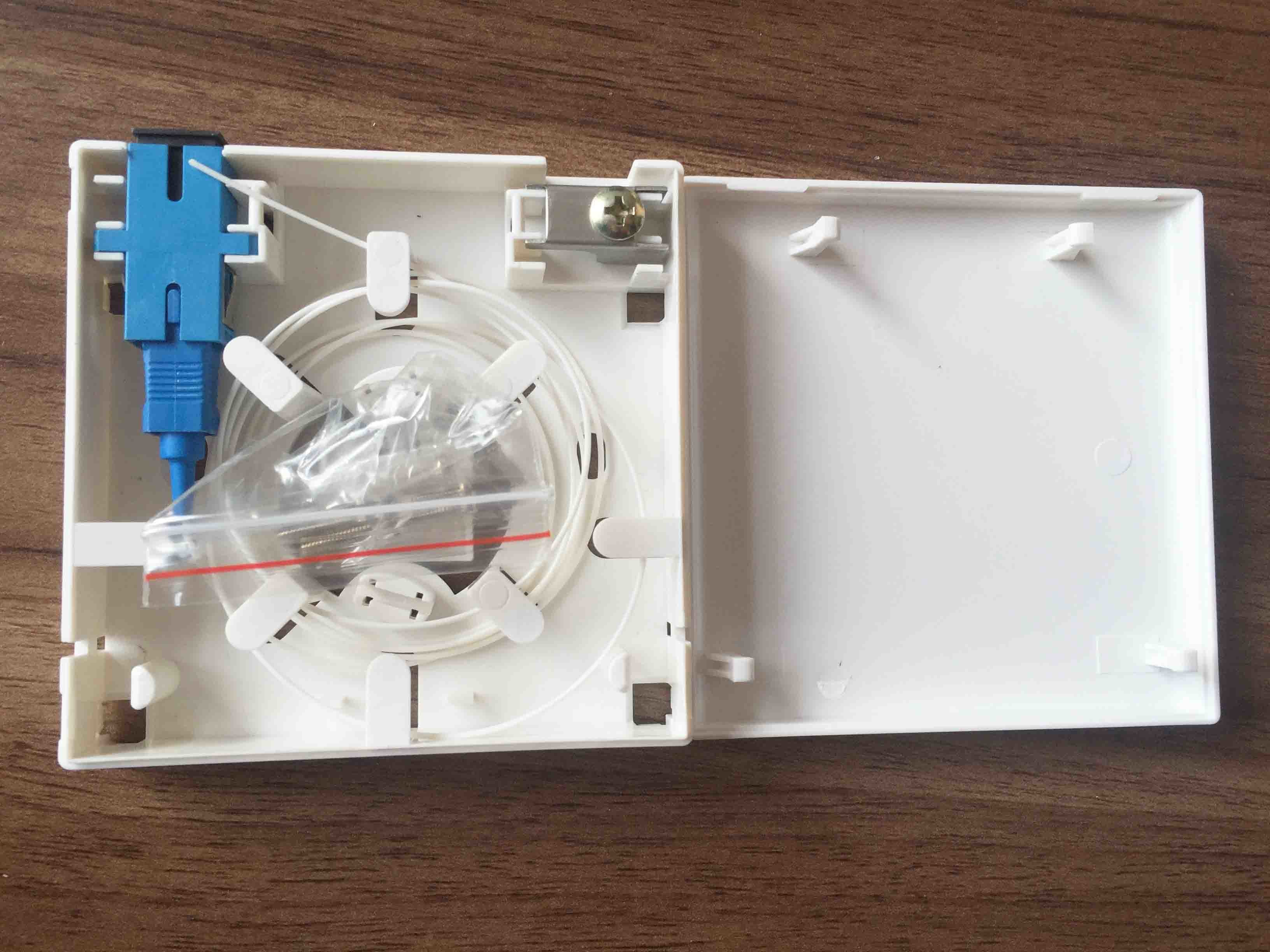

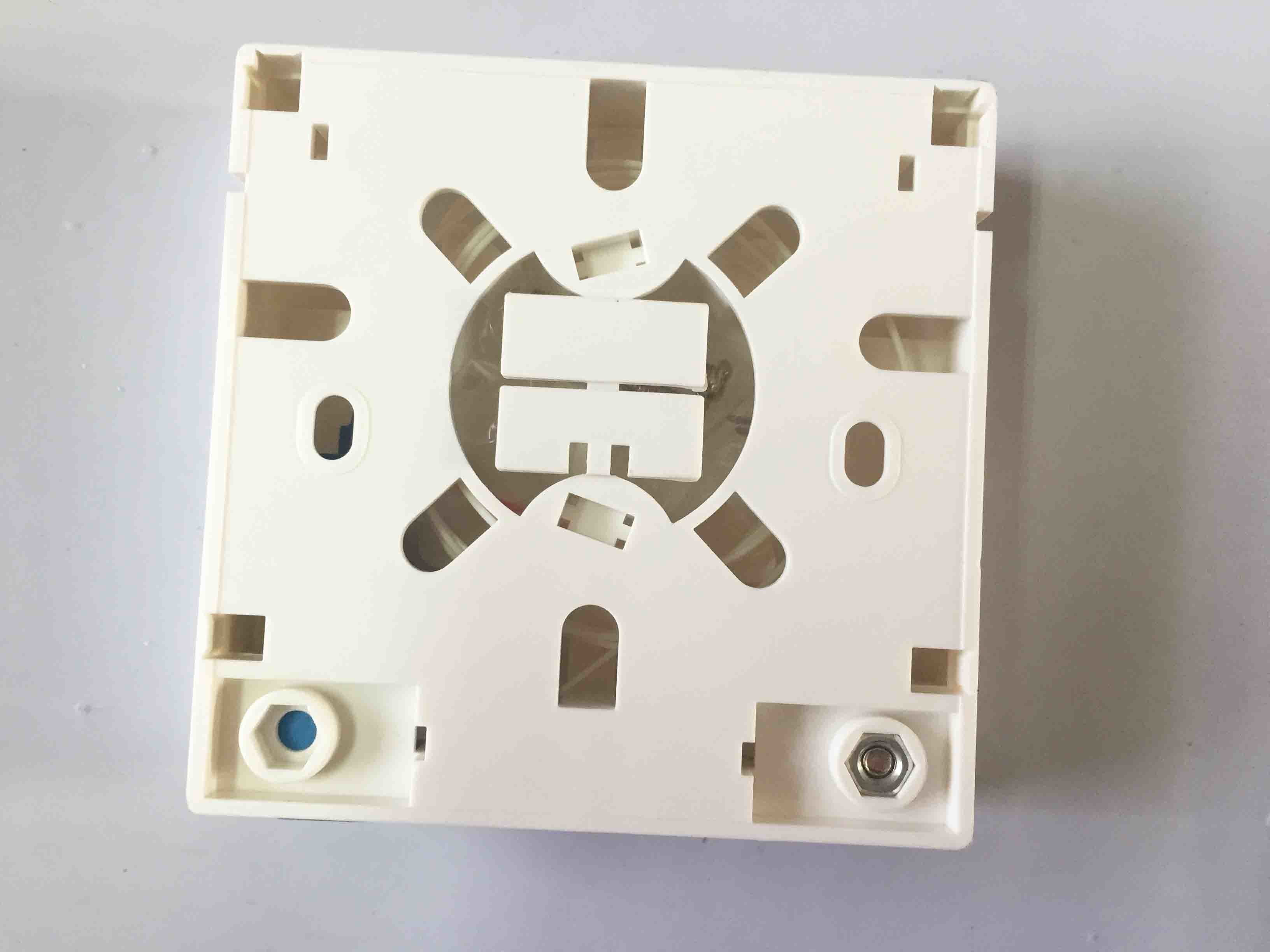

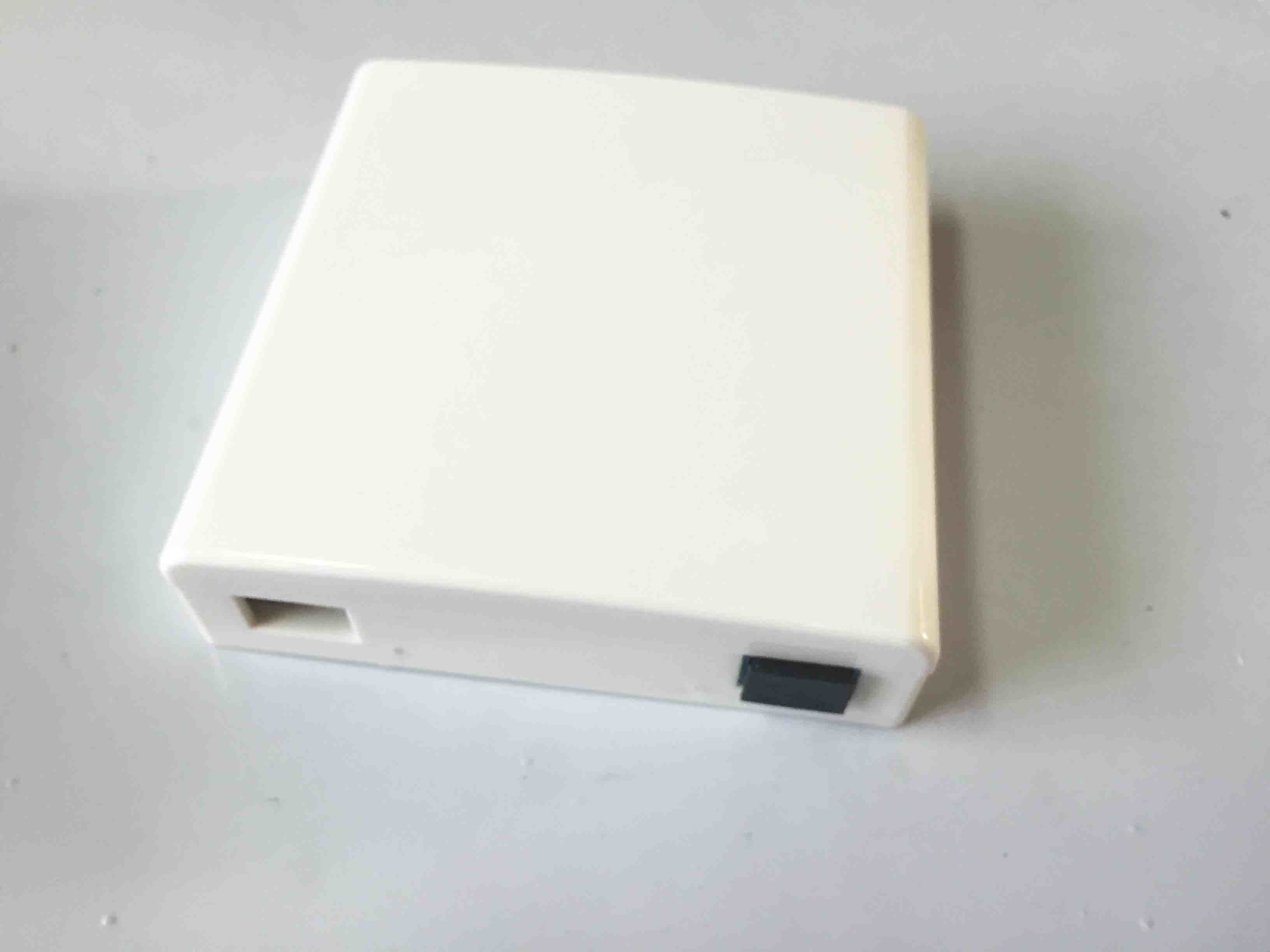

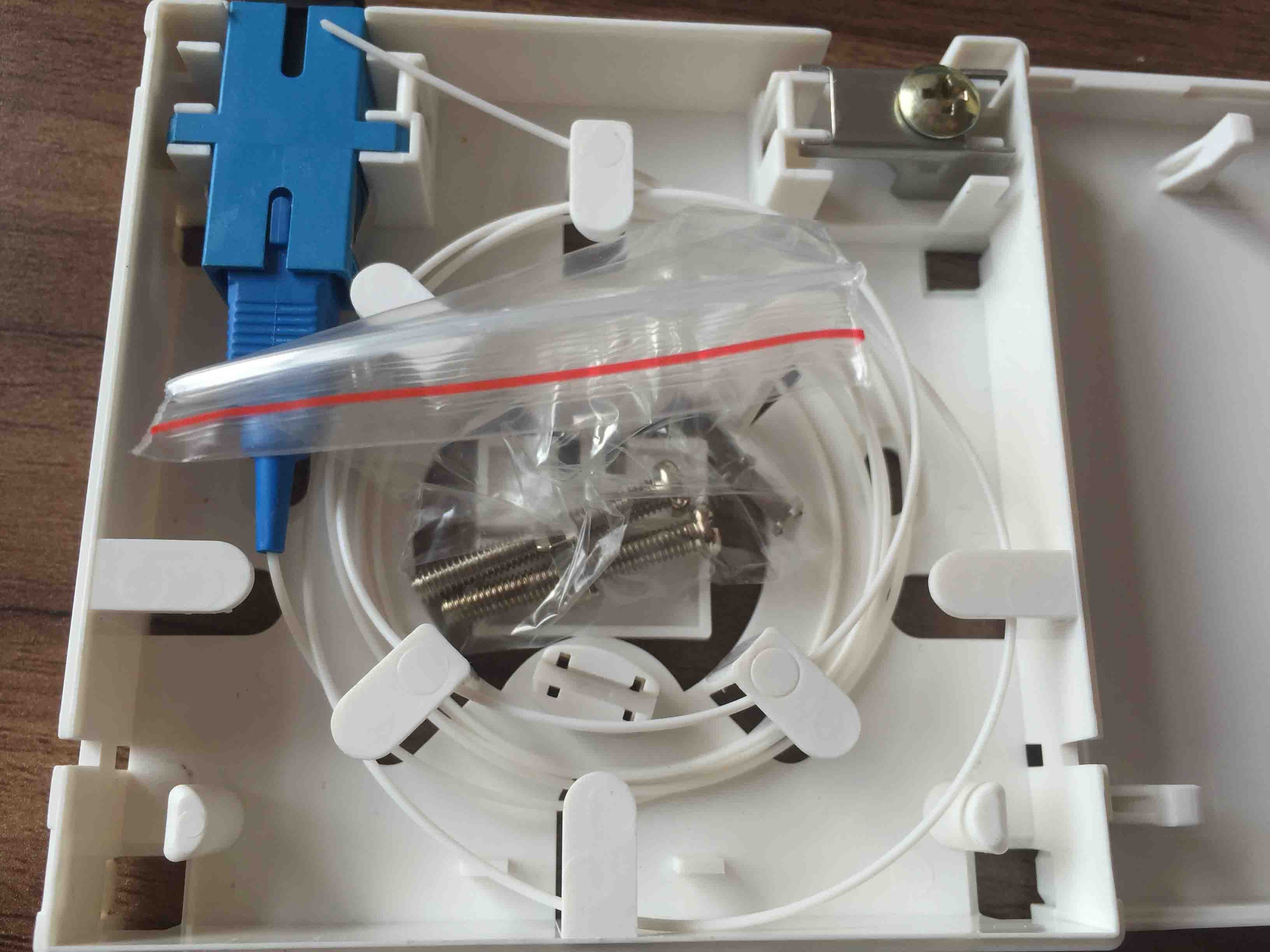

White ABS Material Optical Distribution Box 2 Ports Fiber Optic Faceplate

Fiber Optic FTTH SC Faceplate 2 ports fiber optic indoor faceplate, ABS material

Key Specifications/Special Features:

• Features:
  • Reasonable inner space design
  • Suitable bending radius
  • Protect optical fiber
  • Realize FTTD (fiber to the desktop) system
  • Dimensions: (L) 86 x (W) 86 x (D) 27mm
• Applications:
  • A user end product to realize optical fiber to desktop solution
  • It can be used in home or working area to accomplish double-core fiber access and port output
  • Used in the end termination of residential buildings and villas, to fix and splice with pigtails
• Performance index:
  • Small size, light weight, pleasing in appearance
  • Wall mounted with mechanical protection function
  • Max fiber capacity 4 to 16 fibers, 4 to 16 adapter output
  • Coordinating with FC strip-type optical adapter, it generates more options in term of fiber interfaces for users, SC, LC and SC/FC are all available
  • Hinge and convenient press-pull button lock design greatly reduced installation strength
  • Very thin and matches with other A86 panels in homes and also meet the open or concealed cabling for optical cables

Product Configuration:

• Configuration 1: Body, Cover
• Configuration 2: Body, Cover, Plastic Fastener
• Configuration 3: Body, Cover, Plastic Fastener, Platen, Polts, Clamp
• Configuration 4: Body, Cover, Plastic Fastener, Platen, Polts, Dual Pressure.

Implementing Measure and Meet requirement:

• Adhibition 1: when the single core covered optical cable through the wall, and switch with single output, use the configuration 1 and configuration 2.
• Adhibition 2: when the double cores covered optical cable through the wall, and switch with double output, use the configuration 2.
• Adhibition 3: when the Outdoor optical cable through the wall, and switch with single output, use the configuration 3 and configuration 4.
• Adhibition 4: when the Outdoor optical cable through the wall, and switch with multi mode pigtails, use the configuration 3 and configuration 4.
• Adhibition 5 when the Outdoor optical cable through the wall, and switch with multi mode pigtails, and switch with multicovered optical cables, use the configuration 3 and configuration 4.
