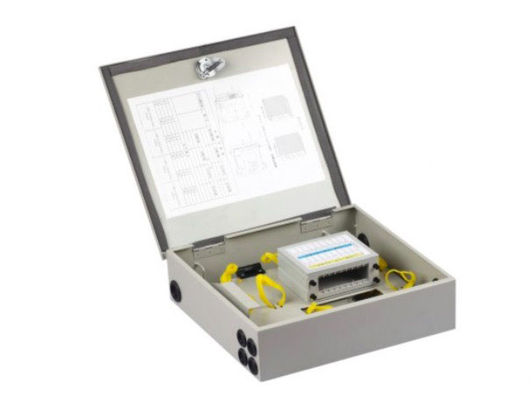

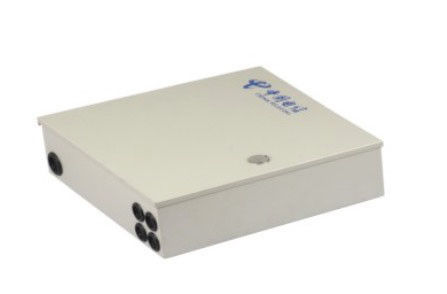

Outdoor / Indoor Waterproof Terminal Box , 24 Core Wall Mounted FDB Optical Splitter Box

24 core Fiber distribution box fiber optic terminal box wall mounted FDB splice box

Production Description

Fiber optic distribution box is used for the distribution connection of cable and fiber optic communication

devices. It leads out optic signal from drop cable to pigtails by splicing in the box. It can be used for protective

connection of cable and layout pigtails, and fiber optic termination of fiber access network. It is suitable for

outdoor, corridor, weak current silo or connection points of vilas, for the splicing, storage and distribution of

local cable or drop cable, with capacity of  8 cores.

Feature

• Made of high strength cold rolled steel.
• Distributing optic into 24, 32, 48 paths by PLC splitter, protecting optic fiber to terminal, easy to operate
• Can be installed with PLC splitter, optional splice tray, lock with a key
• Entering fiber cables of 1~48 cores capacity fuse and splice with pigtails, connecting PLC splitter pigtails.
• FTTH cable connecting the PLC splitter pigtails through SC, FC, LC duplex adapters panel, entering into building or home.
• IP 65 Protection Rating, antirust, dustproof, impact resistance, excellently stable performance, long lifespan.
• OEM and customer's designation are acceptable

Installation way

• Wall mounting, pole mounting, corridor, stairs mounted, desktop mounted, mounted in cabinet. ApplicationFTTx Solution, Telecom network, CATV.

Packaging & shipping

• Packaging: Plastic bags&carton box
• Shipping: International Express: Fedex, DHL, UPS, TNT and EMS etc; Air and sea shipment if the quantity is big.

Technical Parameter

Working temperature: -20°C~+60°C

Relative humidity: ≤90%(+30℃)

Atmosphere pressure:62-106Kpa

Insertion Loss:lL ≤0.3dB(PC), 1L ≤0.3dB(APC)

Return Loss: PL≥40dB(PC), RL≥50dB(UPC), RL≥60dB(APC)

Accessories

Splice cassette and cable management tools, installation nuts and bolts,

heat shrinking tube, rubber seal, hose clamp.

Application

FTTH, FTTB, FTTC

Telecommunication Network

Local Area Network

CATV
