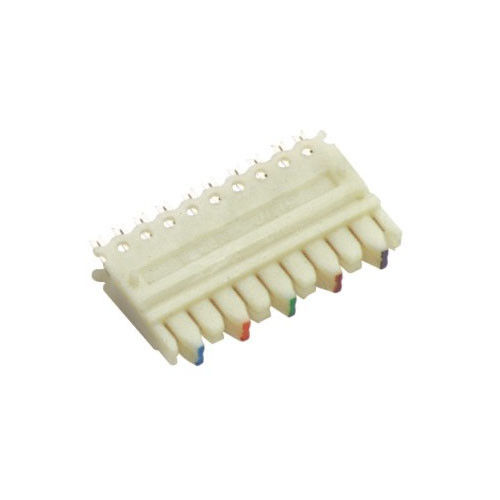

5 Pairs 110 Terminal Block 110 Type Connecting Block IDC Wiring Connection Block

Place of Origin China
Brand Name ANSHI
Certification ISO9001, SGS, UL
Model Number XL-4025B
Minimum Order Quantity 10000
Price Negotiable

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 110 Wiring Block Meterial PC
Specifications 5 Pairs Application Telecommunication
Use Used With 110 Terminal Patch Panel Color White
Highlight

110 wiring block

,

110 connecting block

Leave a Message
Product Description

5 pairs 110 Terminal Block 110 Type Connecting block idc wiring Connection block



Specification:
1. Wiring Blocks, 100 Pair&200 Pairs, 19'' Rack Mounted
2. simple design, reduce the charges of installation
3. install in the specific wall or frame
4. OEM & ODM are provided
5. Fire retardant molded plastic block with horizontal index strip



ELECTRICAL:

1. VOLTAGE RATING: 125 VAC RMS

2. CURRENT RATING: 1.5 AMP

3. CONTACT RESISTANCE: 100 MILLIOHMS MAX

4. INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 500 VDC

5. DIELECTRIC STRENGTH: 750 VAC RMS 60HZ, 1MIN

MATERIAL:

1. PANEL FRAME: CARBON STEEL, POWDER COATING IN BLACK COLOR

2. BASE MATERIAL: PC UL94V-0

3. CABLE BINDER MATERIAL: PC UL94V-0

4. LEG MATERIAL: PC UL94V-0

5. IDC HOUSING AND PLATE: PC UL94V-0

6.TERMINALS MATERIAL: PHOSPHOR BRONZE T=0.8mm

7.WIRE: AWG 24~26
