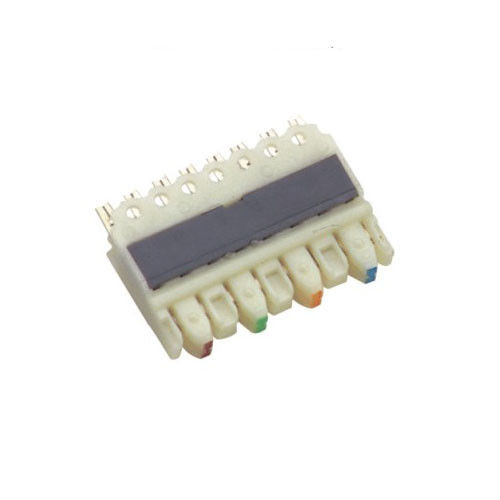

110 IDC Terminal Block For Telecommunication , Cat5e 4 Pairs 110 Connecting Block

110 IDC Terminal Block For Telecommunication , Cat5e 4 Pairs 110 Connecting Block

  • 110 IDC Terminal Block For Telecommunication , Cat5e 4 Pairs 110 Connecting Block
110 IDC Terminal Block For Telecommunication , Cat5e 4 Pairs 110 Connecting Block
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ISO9001, SGS, UL
Model Number: XL-4025A
Payment & Shipping Terms:
Minimum Order Quantity: 10000
Price: Negotiable
Contact Now
Detailed Product Description
Name: 110 Punch Block Meterial: PC
Specifications: 4 Pairs Application: Telecommunication
Use: Used With 110 Terminal Patch Panel Color: White
High Light:

110 connecting block

,

mdf terminal block

110 Terminal Block 4 pairs 110 Type Connecting block terminal block



110 Type Connecting block , Cat5e 4 pairs





electrical:



1. voltage rating: 125 vac rms

2. current rating: 1.5 amp

3. contact resistance: 100 milliohms max

4. insulation resistance: 1000 megohms min @ 500 vdc

5. dielectric strength: 750 vac rms 60hz, 1min



material:



1. panel frame: carbon steel, powder coating in black color

2. base material: pc ul94v-0

3. cable binder material: pc ul94v-0

4. leg material: pc ul94v-0

5. idc housing and plate: pc ul94v-0

6. terminals material: phosphor bronze t=0.8mm

7. wire: awg 24~26
