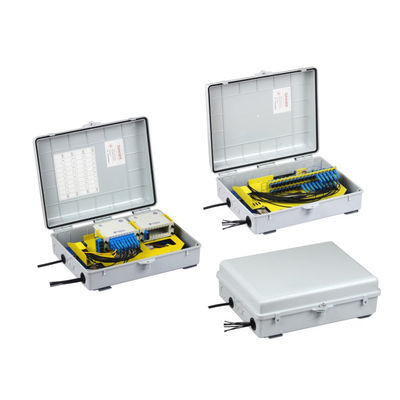

2 * 32 Fiber Distribution Box 48 Core Fiber Optic Junction Box For Outdoor / Indoor

2 * 32 Fiber Distribution Box 48 Core Fiber Optic Junction Box For Outdoor / Indoor

  • 2 * 32 Fiber Distribution Box 48 Core Fiber Optic Junction Box For Outdoor / Indoor
2 * 32 Fiber Distribution Box 48 Core Fiber Optic Junction Box For Outdoor / Indoor
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ROHS, ISO9001
Model Number: AS-ODF-FDB-48A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Supply Ability: 2000pcs/week
Contact Now
Detailed Product Description
Product Name: Optical Distribution Box Material: PC+ABS
Protection Grade: IP65 Install: Wall Mounting Type And Pole
Environment: Outdoor Or Indoor Dimension: 420*320*132
Sealing Method: With Key Function: Waterproof
Capacity: 48 Core SC Application: FTTH System
High Light:

optical distribution box

,

fiber optic splitter box

48 core Fiber optic distribution box FTTH 2*32 Outdoor fiber Splitter distribution box



Production Description



Fiber optic distribution box is used for the distribution connection of cable and fiber optic communication

devices. It leads out optic signal from drop cable to pigtails by splicing in the box. It can be used for protective

connection of cable and layout pigtails, and fiber optic termination of fiber access network. It is suitable for

outdoor, corridor, weak current silo or connection points of vilas, for the splicing, storage and distribution of

local cable or drop cable, with capacity of  48 cores.



Features



1. The box is made of imported flame retardant material, with aging resistant and ultra violet resistant characters

2. Sealing with pressed strip, waterproof and dustproof with IP65

3. Special screw and key for its door lock; can be installed on wall or mounted on pole

4. Spare pigtails and drop cable can be save in storage part, convenience for maintenance

5. Special lock device for outlet of drop cable

6. Bilayer structure, bottom for splicing and upper layer for splitting and distribution

7. There are 48 positions for adapters of FC, SC or ST

8. Maximum 2 pieces of splice tray for satisfying of connection





Technical Parameter



Working temperature: -20°C~+60°C

Relative humidity: ≤90%(+30℃)

Atmosphere pressure:62-106Kpa

Insertion Loss:lL ≤0.3dB(PC), 1L ≤0.3dB(APC)

Return Loss: PL≥40dB(PC), RL≥50dB(UPC), RL≥60dB(APC)



Accessories



Splice cassette and cable management tools, installation nuts and bolts,

heat shrinking tube, rubber seal, hose clamp.



Application



FTTH, FTTB, FTTC

Telecommunication Network

Local Area Network

CATV
