1 * 16 Fiber Distribution Box Cable Termination Box 24 Core For FTTH System

Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-ODF-FDB-24C
Minimum Order Quantity 100
Price Negotiable
Supply Ability 2000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Fiber Optic Termination Box Material PC+ABS
Protection Grade IP65 Install Wall Mounting Type And Pole
Environment Outdoor Or Indoor Dimension 310*230*90
Sealing Method With Key Function Waterproof
Capacity 24 Core SC Application FTTH System

waterproof junction box


fiber optic splitter box

Leave a Message
Product Description

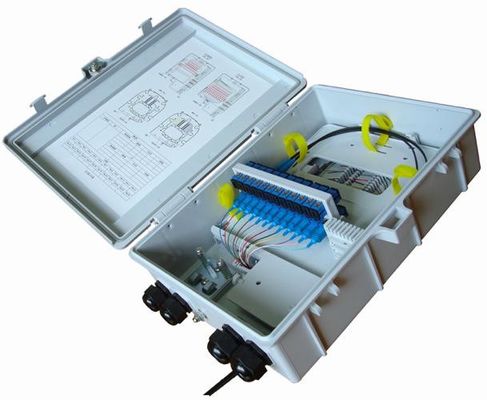

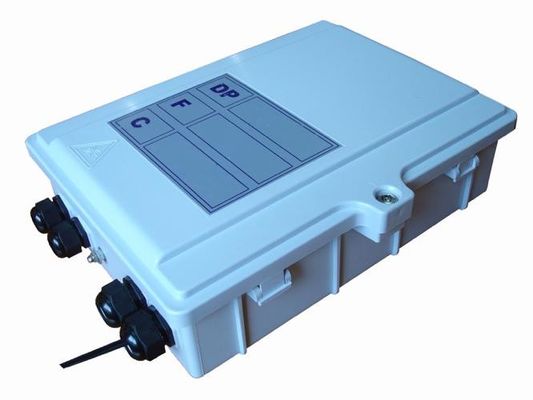

24 core Fiber optic distribution box FTTH 1*16 Outdoor fiber Splitter distribution box


Production Description


Fiber optic distribution box is used for the distribution connection of cable and fiber optic communication

devices. It leads out optic signal from drop cable to pigtails by splicing in the box. It can be used for protective

connection of cable and layout pigtails, and fiber optic termination of fiber access network. It is suitable for

outdoor, corridor, weak current silo or connection points of vilas, for the splicing, storage and distribution of

local cable or drop cable, with capacity of 24 cores or 48 cores.




1. The box is made of imported flame retardant material, with aging resistant and ultra violet resistant characters

2. Sealing with pressed strip, waterproof and dustproof with IP65

3. Special screw and key for its door lock; can be installed on wall or mounted on pole

4. Spare pigtails and drop cable can be save in storage part, convenience for maintenance

5. Special lock device for outlet of drop cable

6. Bilayer structure, bottom for splicing and upper layer for splitting and distribution

7. There are 24-48 positions for adapters of FC, SC or ST

8. Maximum 2 pieces of splice tray for satisfying of connection


Technical Parameter


Working temperature: -20°C~+60°C

Relative humidity: ≤90%(+30℃)

Atmosphere pressure:62-106Kpa

Insertion Loss:lL ≤0.3dB(PC), 1L ≤0.3dB(APC)

Return Loss: PL≥40dB(PC), RL≥50dB(UPC), RL≥60dB(APC)




Splice cassette and cable management tools, installation nuts and bolts,

heat shrinking tube, rubber seal, hose clamp.
