200 pair 110 Terminal Block 19" 1U 110 Cross Connect Distribution Frame Patch Panel

Place of Origin CHINA
Brand Name ANSHI
Certification ISO9001
Model Number XL-4020-1B
Minimum Order Quantity 100
Price Negotiable
Supply Ability 5000/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name 110 Punch Block INSTALL 19"
Height 2U Capacity 200 Pairs
Application Network Copper Conductor 0.4-0.7mm( 22-26 AWG Solid Wire)

110 connecting block


mdf terminal block

Leave a Message
Product Description

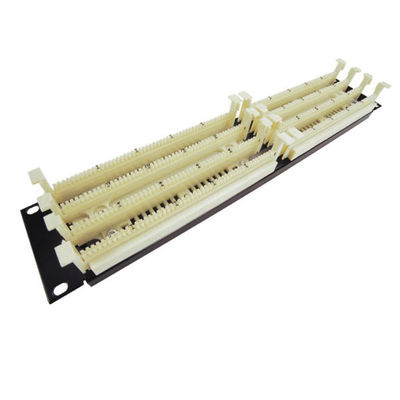

200 pair 110 Terminal Block 19" 1U 110 Cross Connect Distribution Frame Patch Panel


With 110 IDC connector.

We offer a complete set .

All parts including: 110 connect block(100 pairs or 200 pairs).

19'' Metal back panel,label holder,4-pair 110 IDC connector,5 pair 110 IDC Connector. 110 Cross connect block with 19'' back panel is suitable for all kinds of 19'' standard of mounting frame or cabinet. This product combines the easy terminaltion features of the 110-style Punch-down system with the proven performance characteristics of modular jacks.

From the closed to the workstation,the 110 cross connect system offers a complete,cost-effective means to wire a buliding for unshielded twisted pair applications.

Patch panels and jacks are available in T568A, T568b wiring standards; Making the 110 connect system adaptable to changing requirements.





1. 110 telephone distribution block with 110-type connectors.



2. 100-pair 110 distribution block can be used as a termination point for all

high-density voice and data cabling applications, including Category 5.


3. These blocks can be used as a distribution device or in wiring closets and

equipment rooms.


4. Each 110 IDC unit contains double-ended insulation displacement quick

clips that terminate 22-26 gauge solid wire.


5. These clips provide gas-tight connections and are fully enclosed in non-

conductive plastic to eliminate the possibility of accidental contacts or

“hits” on sensitive circuits.


6. A 110 punchdown tool is required for proper installation. Includes:

  • 10 C-4 clips (8-wire)
  • 2 C-5 clips (10-wire)
  • mounting board
  • label strip
  • 89D mounting bracket
