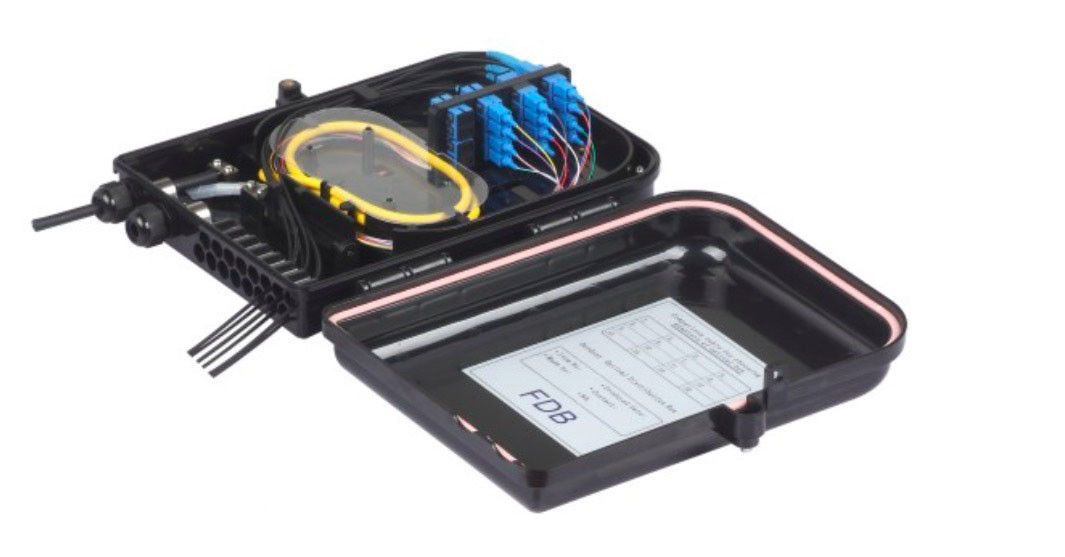

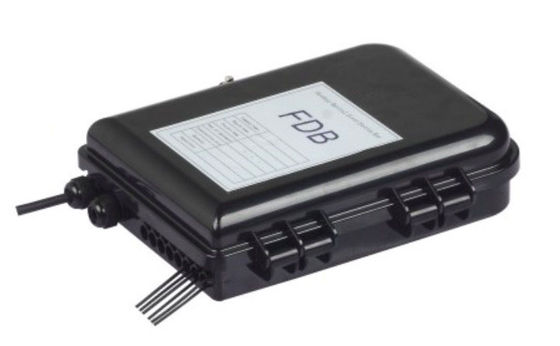

Waterproof 16 Core Optical Fiber Distribution Box For FTTH

  • Waterproof 16 Core Optical Fiber Distribution Box For FTTH
  • Waterproof 16 Core Optical Fiber Distribution Box For FTTH
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-ODF-FDB-16
Minimum Order Quantity 100
Price Negotiable
Supply Ability 2000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 16 Core SC Material ABS Or PC+ABS
Protection Grade IP55 Install Wall Mounting Type And Pole
Environment Outside Dimension 300*223.5*92
Sealing Method With Key Function Waterproof
Highlight

optical distribution box

,

waterproof junction box
Leave a Message
Product Description

FTTH 16 core Fiber optic distribution box termination box fiber terminal box waterproof



Key Features



Good Repetition Good Exchange High thermal stability

Low Insertion Loss High Return Loss Great repetition

High-precision mechanical Installation is simple High density

High environmental stability



Applicance


This distribution box terminates outside optical cables with up to 16 fibers; it allocates 16 adapters for connecting with max 16 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.



Features


ABS material used ensures the body strong and light
Protection Level: IP55
Water-proof design for outdoor uses, lock provided for extra security
Easy installations: Ready for wall mount – installation kit provided
Adjustable adapter slotused – to suit different size pigtails
Space saving! Double-layer design for easier installation and maintenances
Lower layer for splicing, also suitable for mini splitters
Upper layer for adapters, connectors and fiber distribution
Cable fixing units provided for fixing the outdoor optical cable
Both cable glands and tie-wraps accessible
Pre-connectorized cables supported (pre-connected with fast-connectors)
Bend radius protected and cable routing paths provided



Specifications



Function: FTTH Cable splicing distribution /termination box
Splitter type: customized
Splitter installation position: customized
Adaptor type: SC/LC
Max ratio: 16/32 core
Fiber Type Corning SMF-28TM,9/125µm
Splice tray quantity: 1pc
Cable: Drop cable, outdoor cable, standard indoor cable
Dimension 300*223.5*92mm(H*W*D)
Optional accessory:

Simplex SC/LC adapters and pigtails or MM
Installation method Wall mounted or pole mounted,outdoor or indoor use
Accessories Keys,plastic expansion screw,self-tapping screws,hose clamps,shrinkable sleeves,etc.
