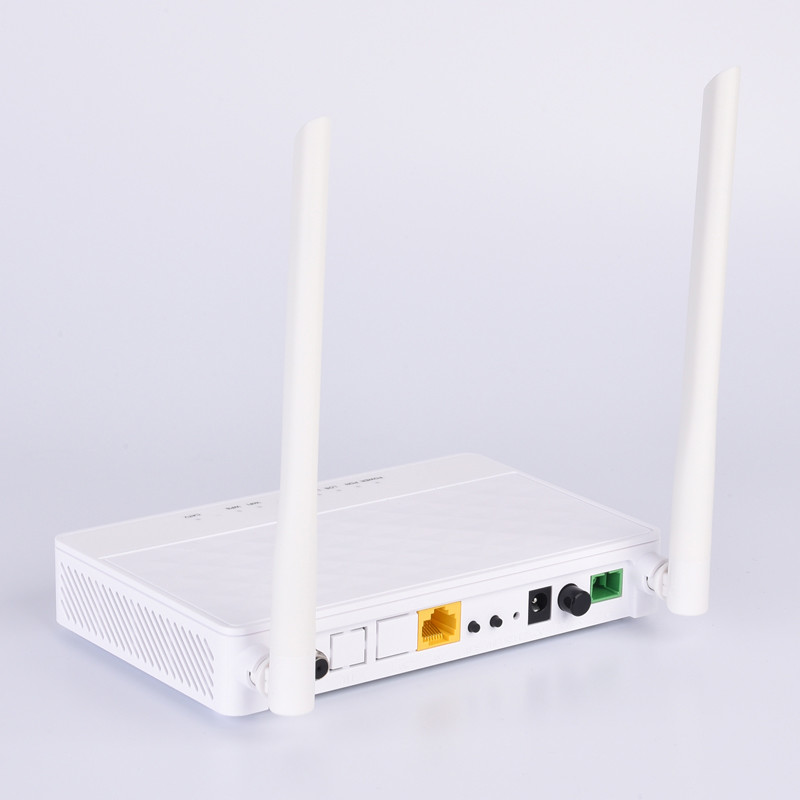

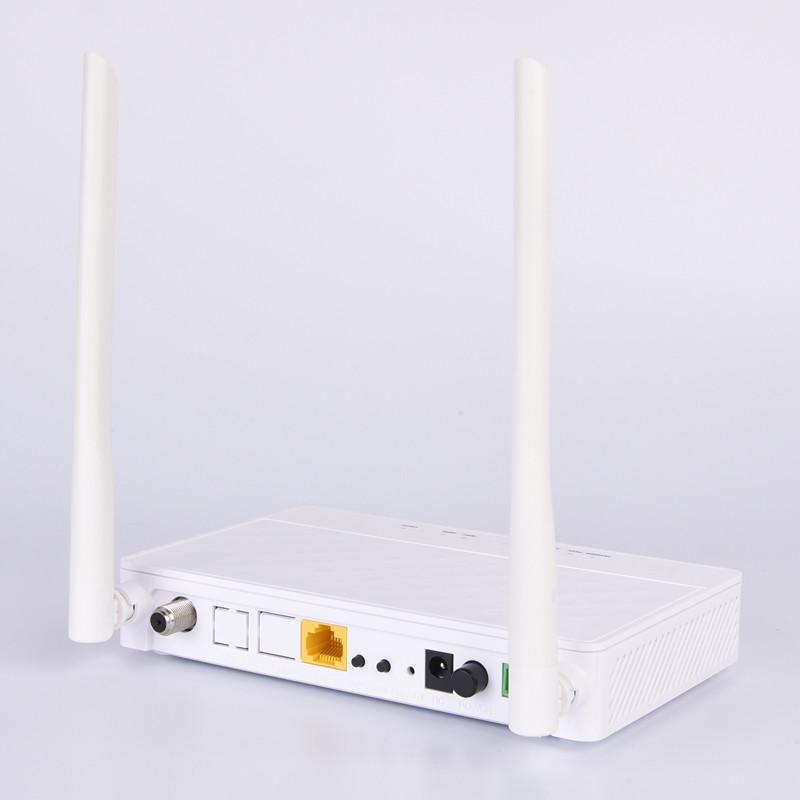

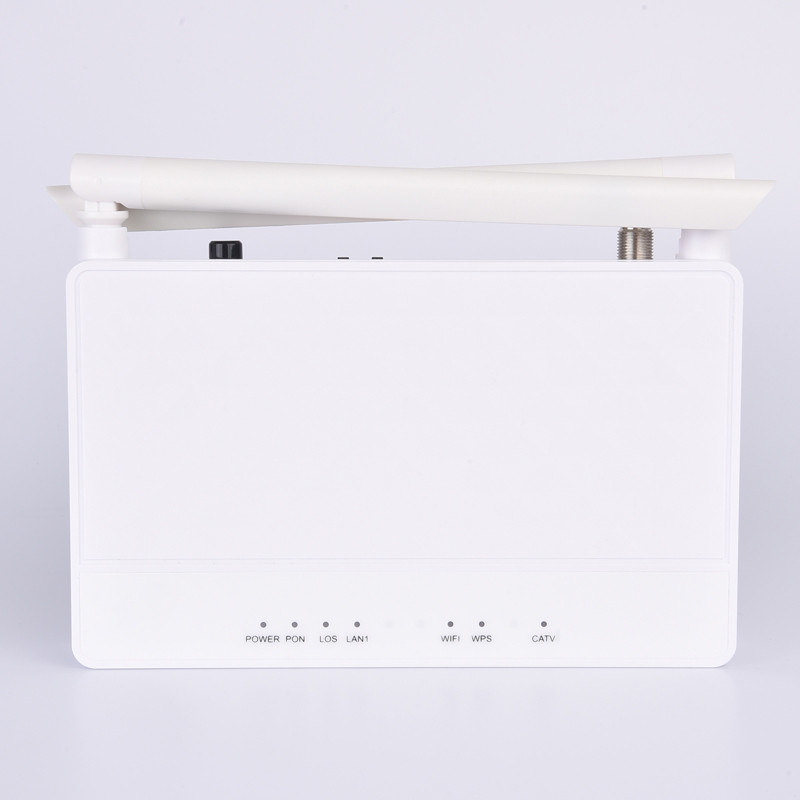

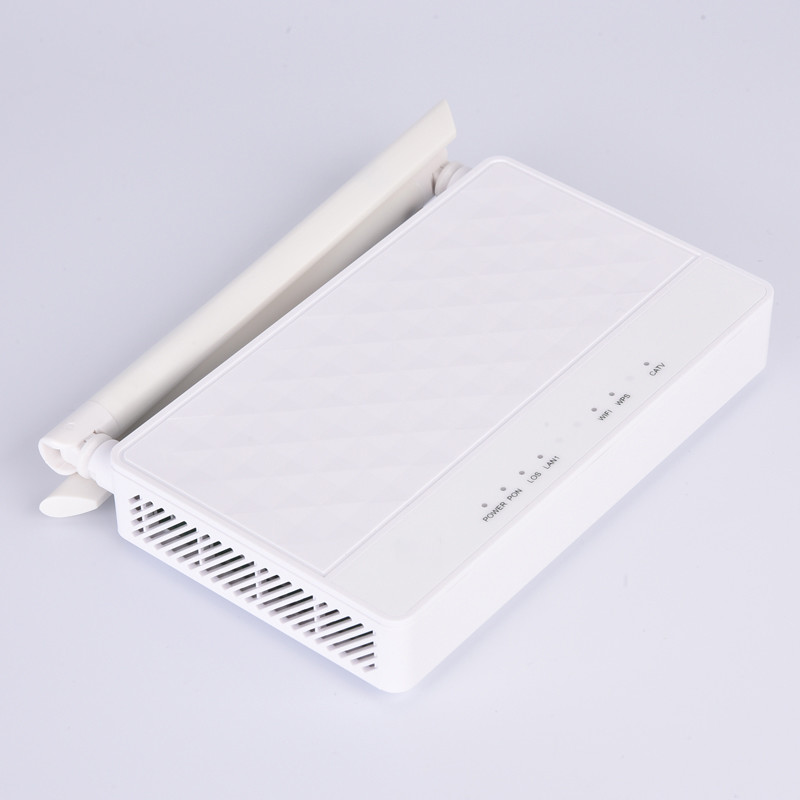

AS-ONU12 1GE+CATV+2.4G WIFI

  • AS-ONU12 1GE+CATV+2.4G WIFI
  • AS-ONU12 1GE+CATV+2.4G WIFI
  • AS-ONU12 1GE+CATV+2.4G WIFI
  • AS-ONU12 1GE+CATV+2.4G WIFI
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ONU12
Minimum Order Quantity Negotiable
Price Negotiable

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1GE+1FE+CATV+2.4G WIFI Size 168*130*28mm
Weight 230g Power Adapter Input 100V～240V AC，50Hz～60Hz
PowerSupply Requirement 12V DC，1.5A Power Consumption <10w
Working Temperature -10°C ~ +45°C Module Type Class B+ SC/APC
Working Wavelength Up 1310nm，down 1490nm ;CATV：1550nm Interface Type 1*RJ45
Highlight

CATV AS-ONU12

,

2.4G WIFI AS-ONU12

,

1GE AS-ONU12
Leave a Message
Product Description

 AS-ONU12 1GE+CATV+2.4G WIFI



Product Overview
AS-ONU12 model ONU is a user terminal device independently developed in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators. AS-ONU12 is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.

Features
♦ Support EPON/GPON mode and switch mode automatically
♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote confifiguration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode
♦ etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support fifirewall level Settings, support based on URL/MAC/ IP/ address frame fifiltering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
♦ Support DDSN, ALG, DMZ and UPNP
♦ Support CATV interface for Video Service

Highlights
♦ Compatible with 95% Third-party OLTs (Including Huawei/ZTE/Fiberhome/BT-PON and so on)
♦ Spport EPON/GPON mode and switch mode automatically
♦ Support Route PPPoE/DHCP/Static IP and Bridge mode
♦ Support ONU auto-discovery/Link detection/remote upgrade of software
♦ Support IPv4/IPv6 dual mode
♦ Support Firewall function and IGMP multicast feature
♦ Support LAN IP and DHCP Server confifiguration
♦ Support Port Forwarding and Loop-Detect


AS-ONU12 1GE+CATV+2.4G WIFI 0AS-ONU12 1GE+CATV+2.4G WIFI 1AS-ONU12 1GE+CATV+2.4G WIFI 2
