AS-ONU27 GPON 1GE+3FE+VOIP+2.4G WIFI

  • AS-ONU27 GPON 1GE+3FE+VOIP+2.4G WIFI
  • AS-ONU27 GPON 1GE+3FE+VOIP+2.4G WIFI
  • AS-ONU27 GPON 1GE+3FE+VOIP+2.4G WIFI
  • AS-ONU27 GPON 1GE+3FE+VOIP+2.4G WIFI
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ONU27
Minimum Order Quantity Negotiable
Price Negotiable

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name XPON 1GE User Interface 1GE+3FE+2.4G WLAN+1USB
Optical Signal Access 1*GPON/EPON Indicator Light POWER/PON/LOS/LAN1/LAN2/LAN3/LAN4/2.4G/WPS
Weight 250g Power Adapter Input 100V～240V AC，50Hz～60Hz
PowerSupply Requirement 12V DC，1.5A Power Consumption <10w
Working Temperature -10°C ~ +45°C Environment Humidity 5% ~ 95% (Non-condensing)
Highlight

AS-ONU27 GPON

,

1GE+3FE+VOIP GPON

,

AS-ONU27 2.4G WIFI
Leave a Message
Product Description

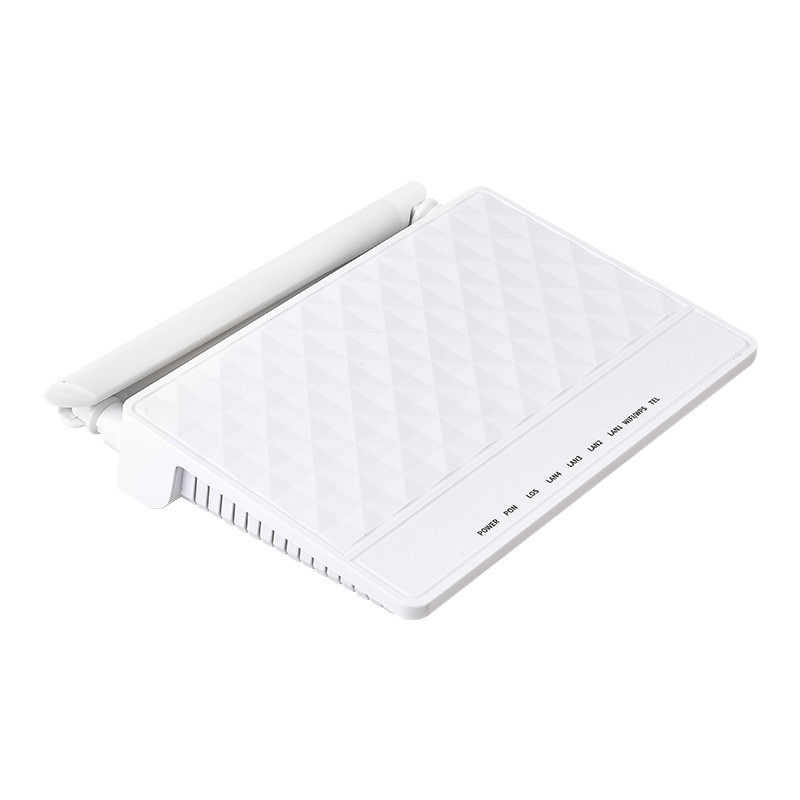

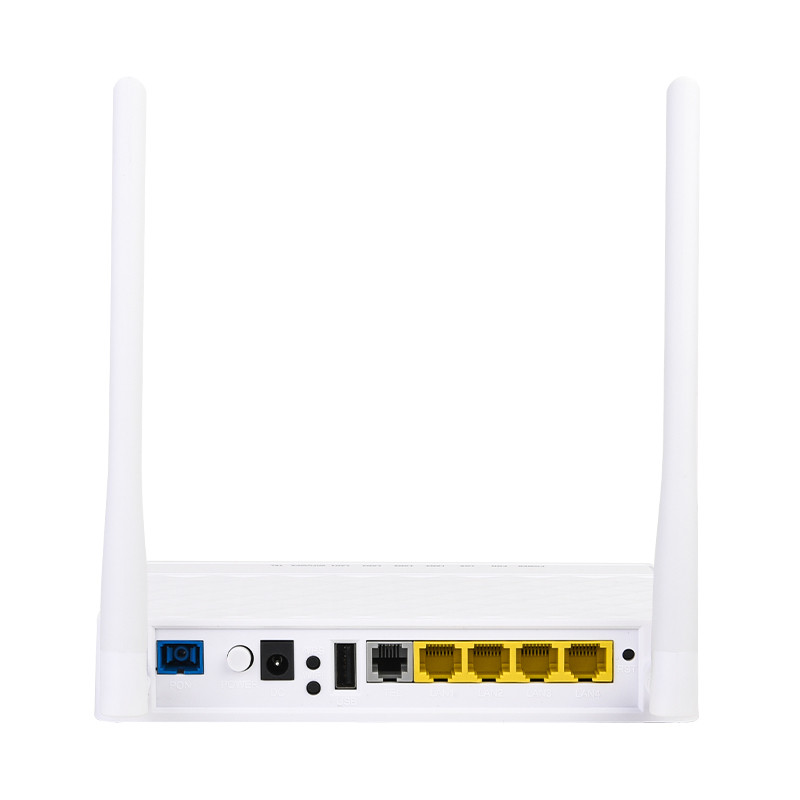

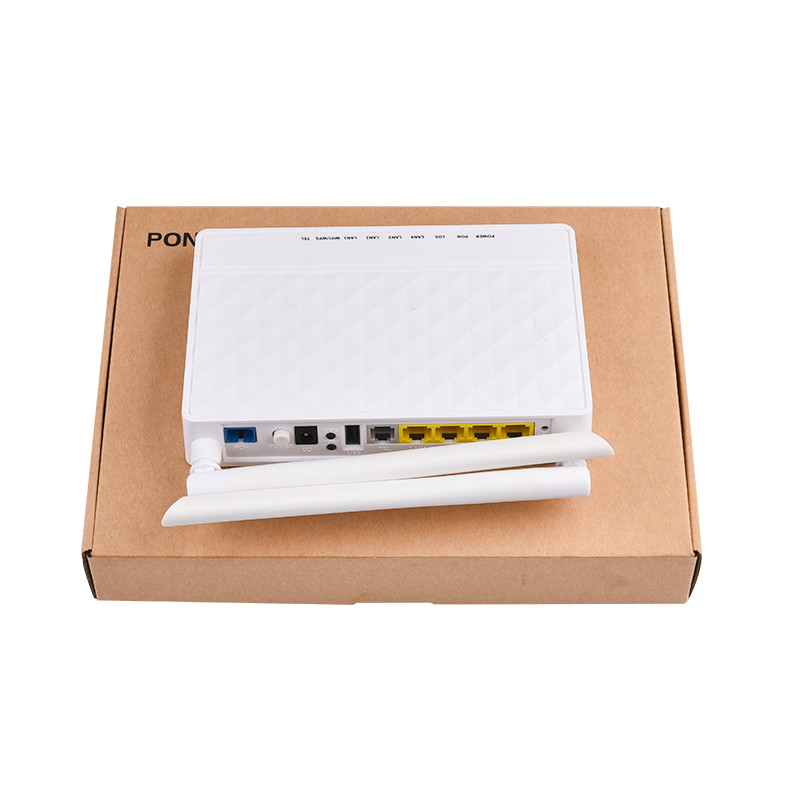

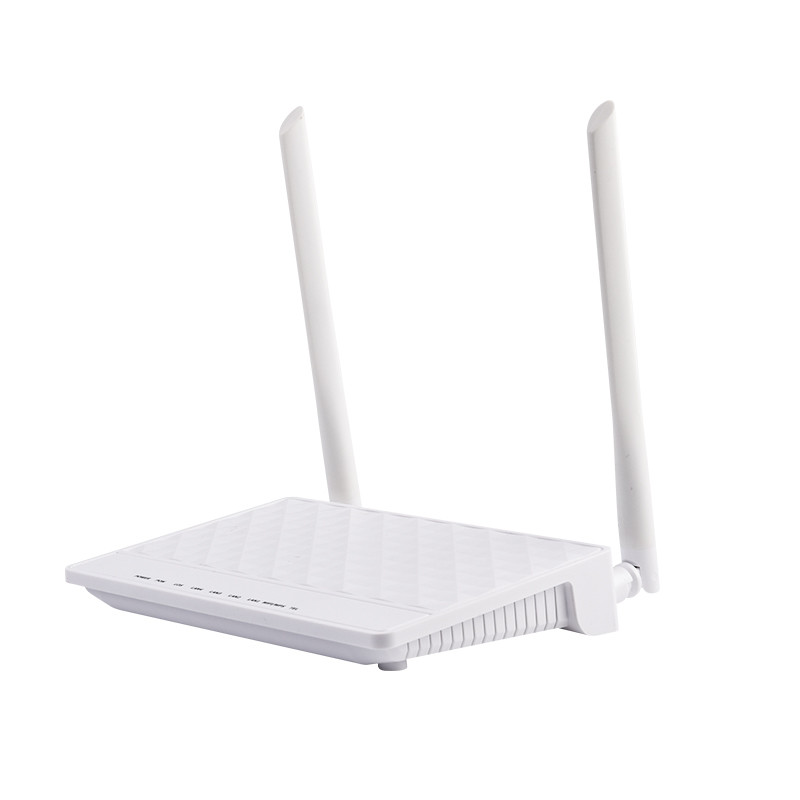

AS-ONU27 1GE+3FE+VOIP+2.4G WIFI



Product Overview

AS-ONU27 model ONU is a user terminal device independently developed in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.AS-ONU27 is an XPON product that can be adapted to EPON and GPON networks without replacing
equipment and firmware.



Features

♦ Support EPON/GPON mode and switch mode automatically

♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Bi-directional FEC
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings
♦ Support DDSN, ALG, DMZ and UPNP



Highlights
♦ Support EPON/GPON mode and switch mode automatically
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Support PPPoE/ Static IP/ DHCP
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple
♦ SSID Settings
♦ Chipest :Realtek
♦ Compatible with 95% Third-party OLTs (Including
♦ Huawei/ZTE/Fiberhome/BT-PON and so on)



AS-ONU27 GPON 1GE+3FE+VOIP+2.4G WIFI 0AS-ONU27 GPON 1GE+3FE+VOIP+2.4G WIFI 1
