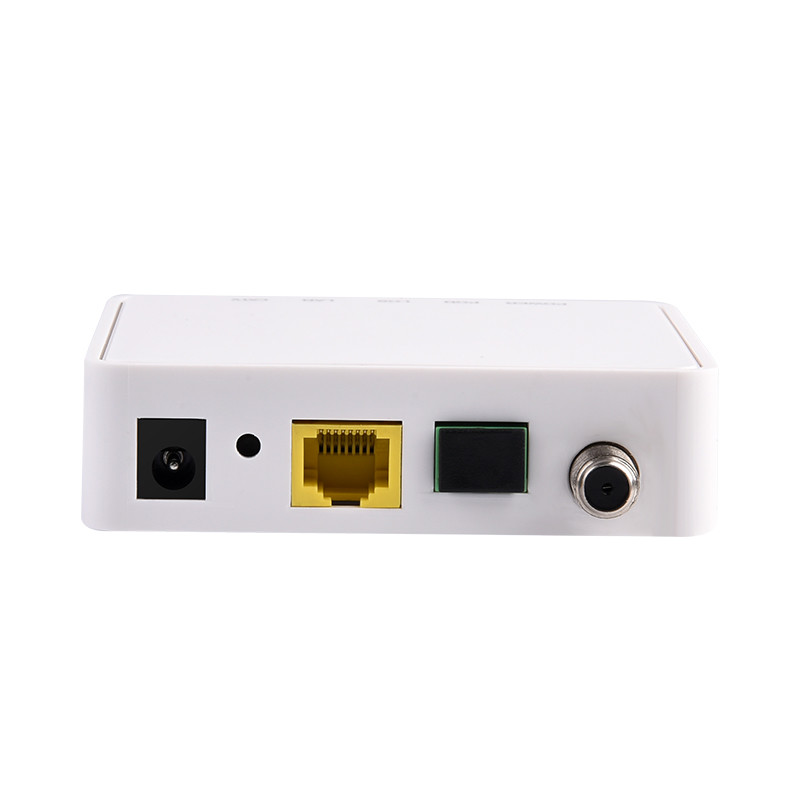

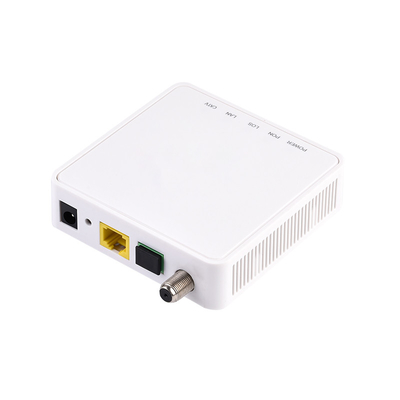

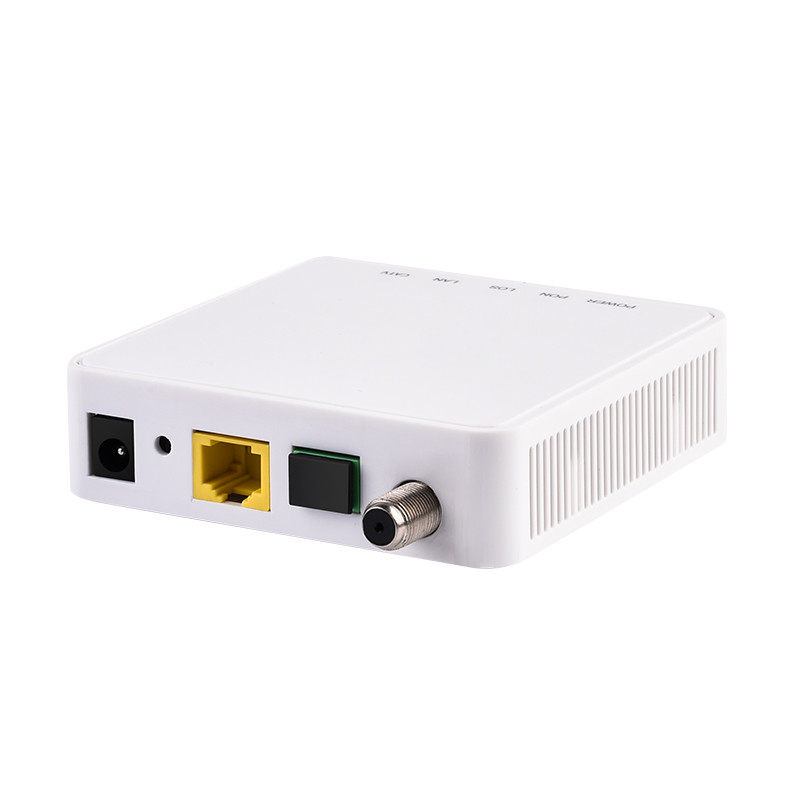

AS-ONU6 1GE+CATV XPON ONU SFU

  • AS-ONU6 1GE+CATV XPON ONU SFU
  • AS-ONU6 1GE+CATV XPON ONU SFU
  • AS-ONU6 1GE+CATV XPON ONU SFU
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ONU6
Minimum Order Quantity Negotiable
Price Negotiable

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1GE+CATV XPON ONU Size 90*90*24mm
Weight 95g Power Adapter Input 100V～240V AC,50Hz～60Hz
PowerSupply Requirement 12V DC, 1A Power Consumption <6w
Working Temperature -10°C ~ +45°C Module Type Class B+ SC/APC
Working Wavelength Up 1310nm，down 1490nm ;CATV：1550nm Interface Type 1* RJ45
Highlight

1GE ONU SFU

,

XPON ONU SFU

,

AS-ONU6 ONU SFU
Leave a Message
Product Description

 AS-ONU6 1GE+CATV XPON ONU SFU



Product Overview
AS-ONU6 model ONU is a user terminal device independently developed in line with such industrial background. The device has built-in two-layer switching function. It is compact and compact, and is an FTTH optical network unit with high performance and low power consumption. AS-ONU6 ONU can automatically switch EPON/GPON working mode and can be used in EPON/GPON network, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.

Features

♦ GPON working mode Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ EPON working mode compliant with IEEE 802.3ah specification and OAM protocol
♦ Supports the WEB configuration function
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, supports Route mode, etc
♦ Supports the configuration of Ethernet interface rates, working modes,MDI/ MDIX auto-negotiation mode, and Pause flow control
♦ Provides performance statistics on all Ethernet lines
♦ Support multicast IGMP snooping
♦ Supports the L2 wire speed forwarding
♦ Supports the AES-128 algorithm for data encryption of downlink data
♦ Support CATV interface for Video Service


Highlights

♦ Compatible with 95% Third-party OLTs (Including Huawei/ZTE/Fiberhome/BT-PON and so on)
♦ Spport EPON/GPON mode and switch mode automatically
♦ Support Route PPPoE/DHCP/Static IP and Bridge mode
♦ Support ONU auto-discovery/Link detection/remote upgrade of software
♦ Support IPv4/IPv6 dual mode
♦ Support Firewall function and IGMP multicast feature
♦ Support LAN IP and DHCP Server configuration
♦ Support Port Forwarding and Loop-Detect



AS-ONU6 1GE+CATV XPON ONU SFU 0AS-ONU6 1GE+CATV XPON ONU SFU 1
