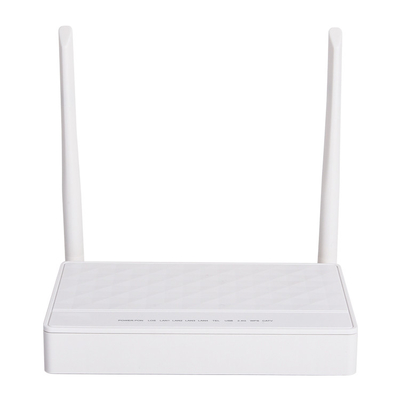

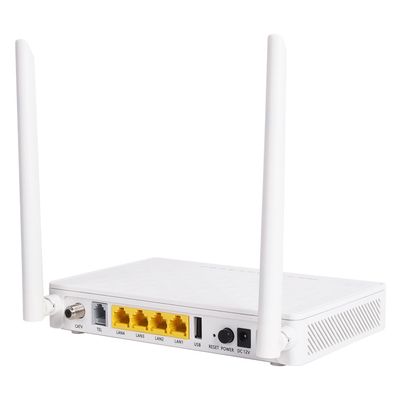

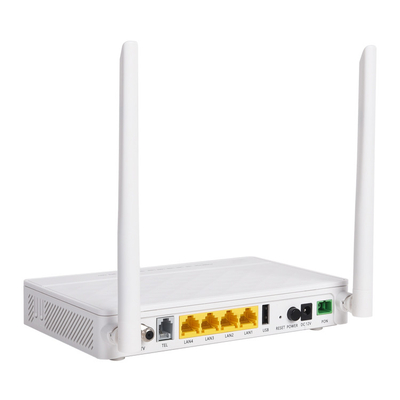

AS- ONU22 1GE+3FE+CATV+2.4G WIFI 1GE+3FE+VOIP+2.4G WLAN+CATV XPON ONU

  • AS- ONU22 1GE+3FE+CATV+2.4G WIFI 1GE+3FE+VOIP+2.4G WLAN+CATV XPON ONU
  • AS- ONU22 1GE+3FE+CATV+2.4G WIFI 1GE+3FE+VOIP+2.4G WLAN+CATV XPON ONU
  • AS- ONU22 1GE+3FE+CATV+2.4G WIFI 1GE+3FE+VOIP+2.4G WLAN+CATV XPON ONU
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ONU22
Minimum Order Quantity Negotiable
Price Negotiable

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1GE+3FE+VOIP+2.4G WLAN+CATV XPON ONU Size 192*148*35mm
Weight 250g Power Adapter Input 100V～240V AC, 50Hz～60Hz
PowerSupply Requirement 12V DC,1.5A Power Consumption <10w
Working Temperature -10°C ~ +45°C
Highlight

AS- ONU22 XPON ONU

,

2.4G XPON ONU

,

WIFI XPON ONU
Leave a Message
Product Description

AS- ONU22 1GE+3FE+CATV+2.4G WIFI 1GE+3FE+VOIP+2.4G WLAN+CATV XPON ONU



Product Overview
AS-ONU22 model ONU is a user terminal device independently developed in line with such industrial background.The device has built-in twolayer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.AS-ONU22 is an XPON product that can be adapted to EPON and GPON networks without replacing equip-ment and firmware.

Features

♦ GPON working mode Compliance with IEEE 802.3ah& itu-t g.984.x standard

♦ GPON:8 T-CONTs,32 GEM Ports
♦ EPON working mode compliant with IEEE 802.3ah specification and OAM protocol
♦ Supports the WEB configuration function
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Layer 3 Home Gateway/CPE features with Hardware
♦ NAT, supports Route mode, etc
♦ Supports the configuration of Ethernet interface
♦ rates, working modes,MDI/ MDIX auto-negotiation mode, and Pause flow control
♦ Provides performance statistics on all Ethernet lines
♦ Support multicast IGMP snooping
♦ Supports the L2 wire speed forwarding
♦ Supports the AES-128 algorithm for data encryption of downlink data

Highlights

♦ Support EPON/GPON mode and switch mode automatically

♦ Support PPPoE/ Static IP/ DHCP
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple
♦ SSID Settings
♦ Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909
♦ Support CATV interface for Video Service,
♦ support to turn off CATV functionality
♦ Chipest :Realtek
♦ Compatible with 95% Third-party OLTs (Including Huawei/ZTE/Fiberhome/BT-PON and so on)
