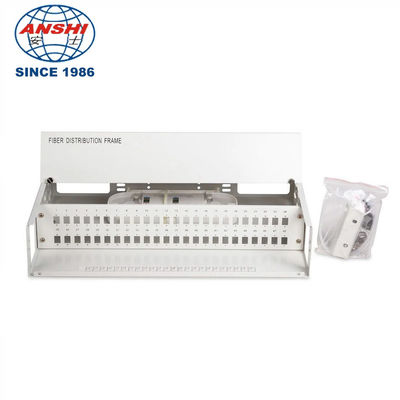

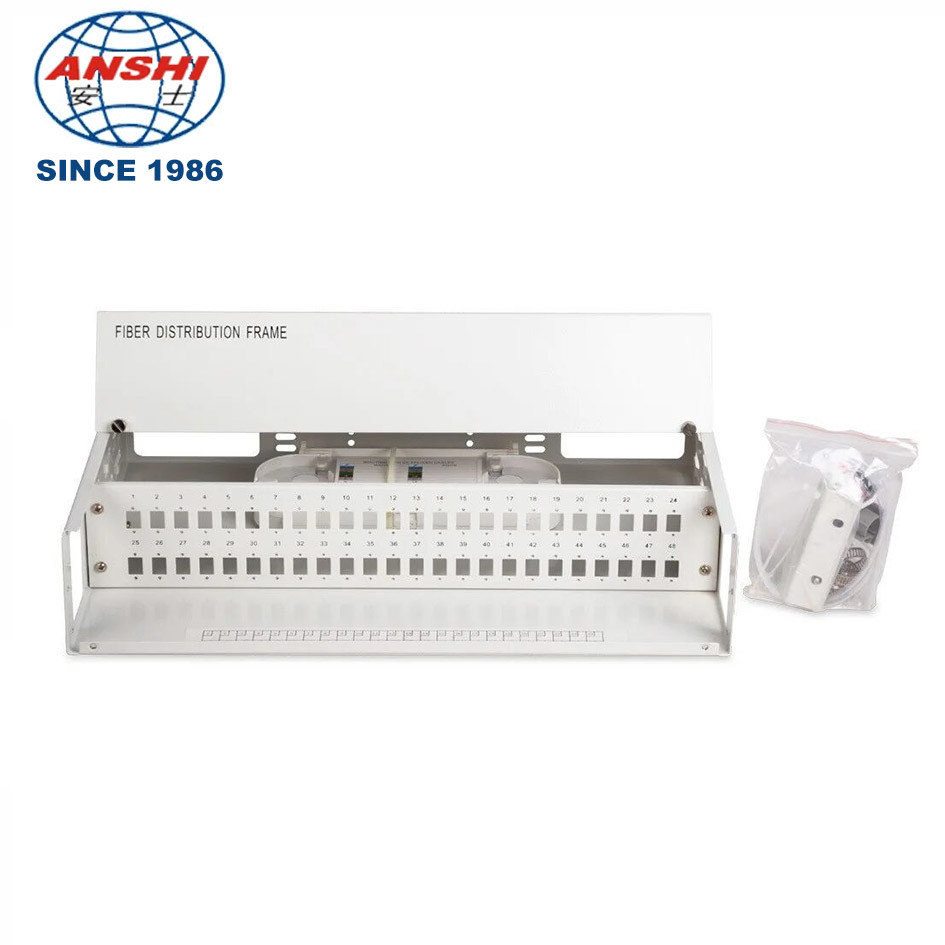

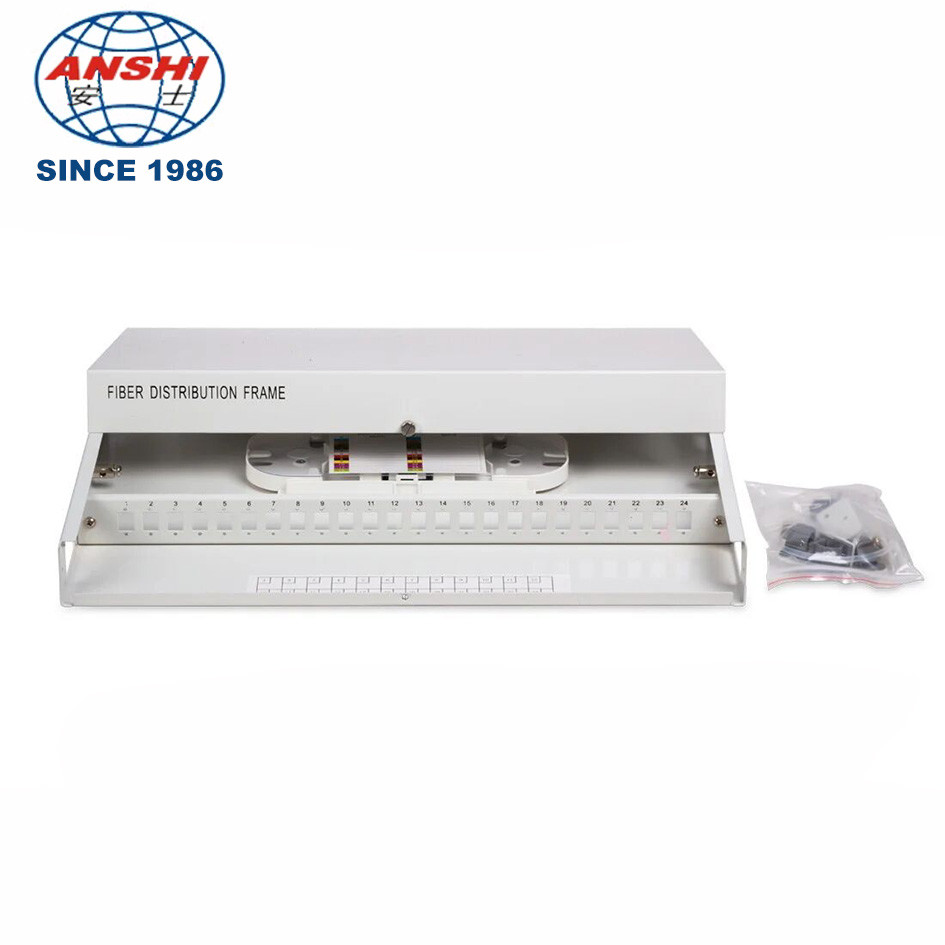

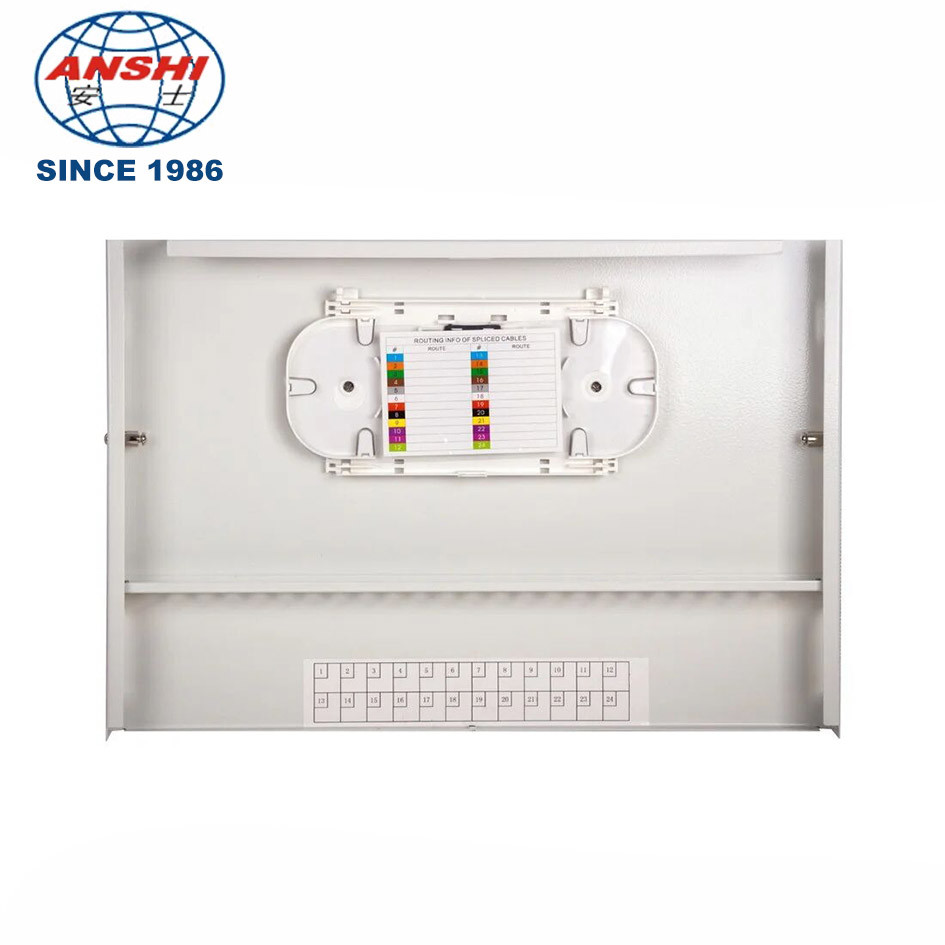

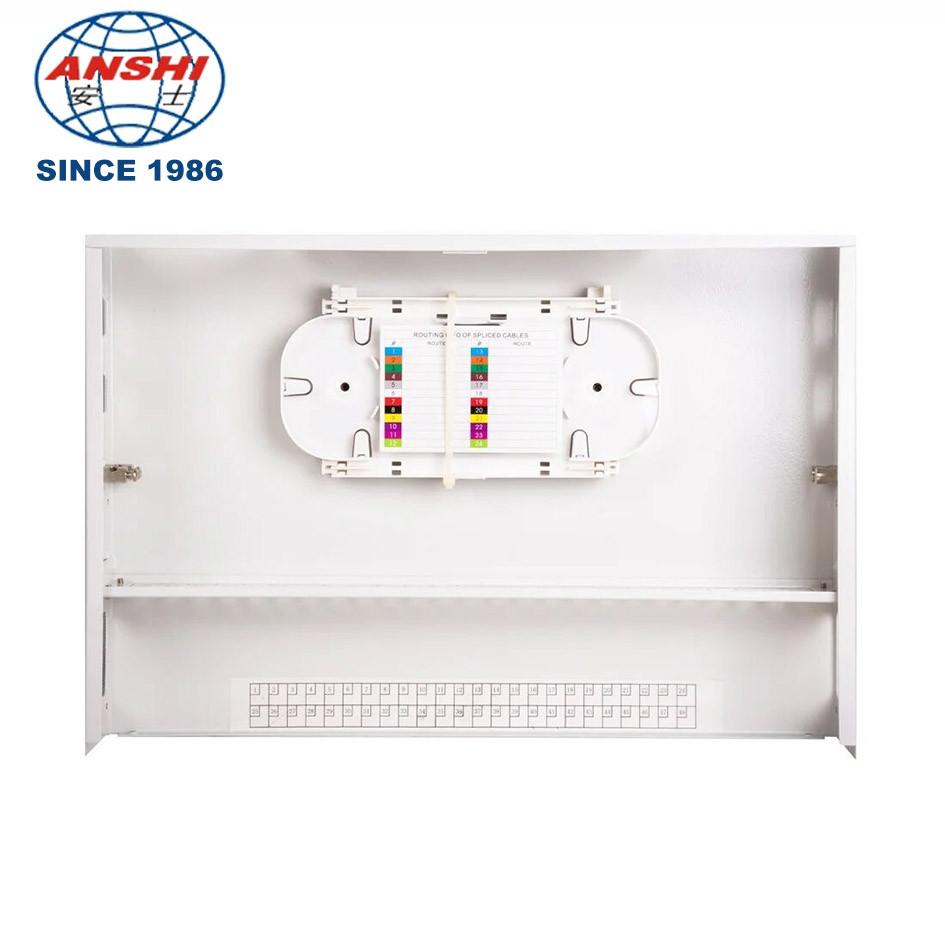

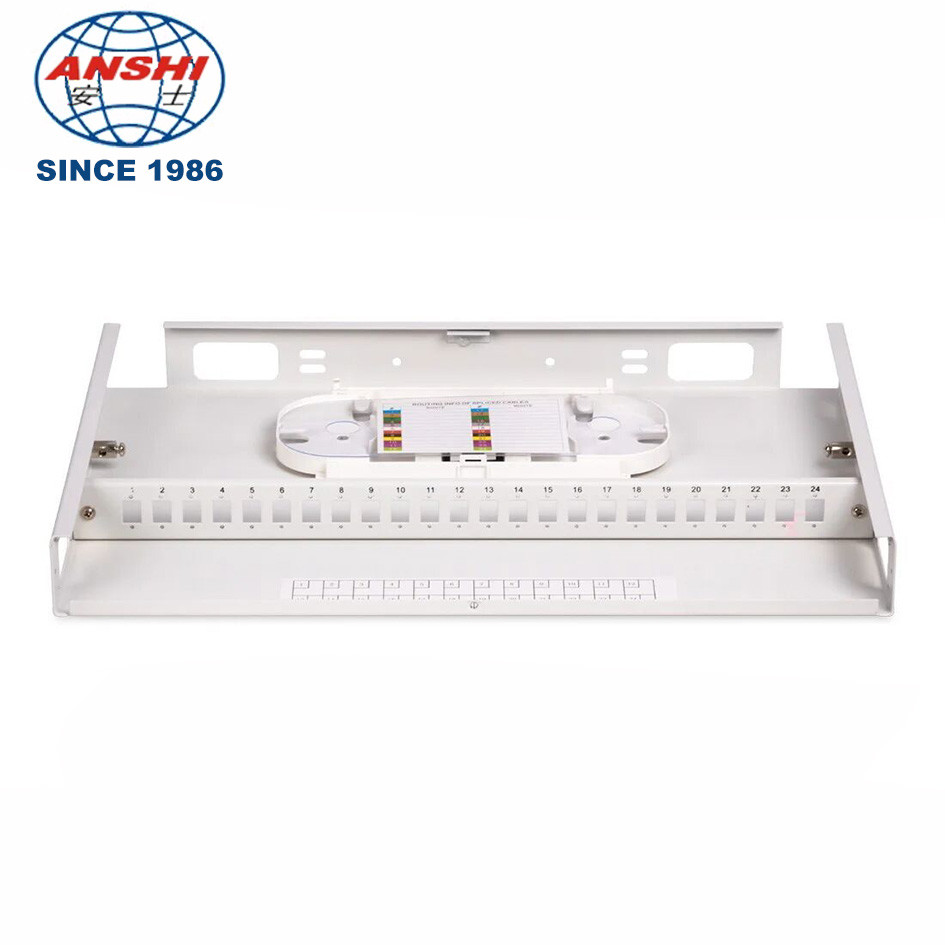

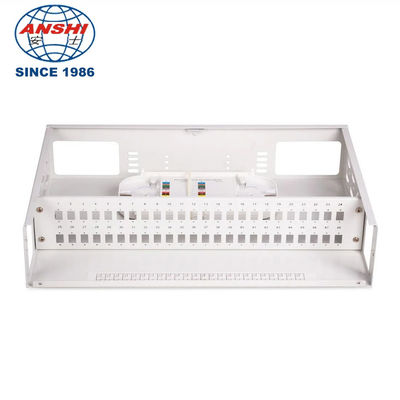

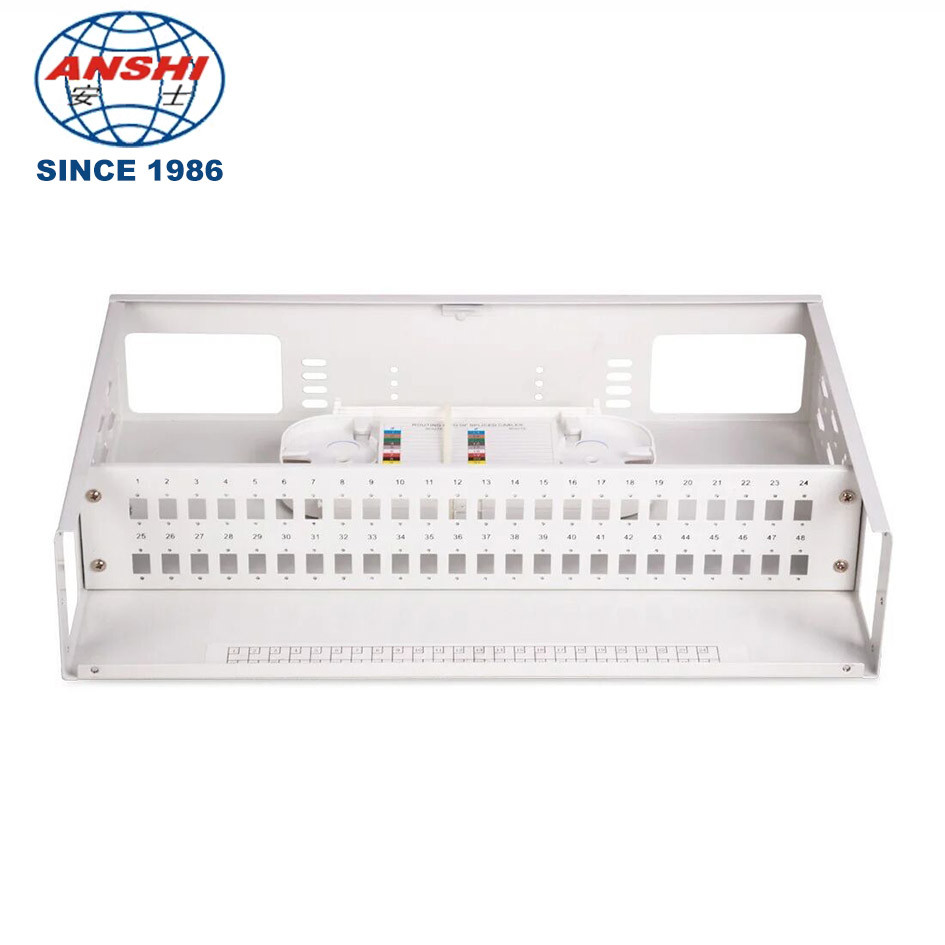

ANSHI Wall Mount Fiber Optic Patch Panel 19 Inch 24 / 48 Port

  • ANSHI Wall Mount Fiber Optic Patch Panel 19 Inch 24 / 48 Port
  • ANSHI Wall Mount Fiber Optic Patch Panel 19 Inch 24 / 48 Port
  • ANSHI Wall Mount Fiber Optic Patch Panel 19 Inch 24 / 48 Port
  • ANSHI Wall Mount Fiber Optic Patch Panel 19 Inch 24 / 48 Port
  • ANSHI Wall Mount Fiber Optic Patch Panel 19 Inch 24 / 48 Port
  • ANSHI Wall Mount Fiber Optic Patch Panel 19 Inch 24 / 48 Port
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-FPP-FDF24/48
Minimum Order Quantity Negotiable
Price Negotiable
Supply Ability 20,000 pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Distribution Frame Installation Wall Mount
Dimension 19” Max Capacity 24/48 Cores
Application FTTH System Color Can Be Customized
Highlight

48 Port Fiber Optic Patch Panel

,

19 Inch Fiber Optic Patch Panel

,

Wall Mount Fiber Optic Distribution Panel
Leave a Message
Product Description

ANSHI 19 Inch Fiber Distribution Frame 24/48 Port Fiber Optic Patch Panel



Product Description

Feature:



Technical Information:


Type: Cable installation, wall mount
Size: 40x38x14cm , 30x30x8.5cm, 40.5x38.2x8.5cm

Capacity: 48 SC, 96 LC
Connector options: SC, SC/APC, LC, LC/APC, ST, FC



Key Features:



1) Standard size, light weight and reasonable structure

2) Splice tray inside changeable

3) Can be used in 19'', 23'' standard distribution frame

4) Suitable for ribbon and single fiber

5) Various panel plate to fit different adapter interface

6) Front mark on the plate is easy for identification and operation

7) 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters

8) Easy for management and operation



Product Application:



1) Telecommunications subscriber loop

2) Fiber to the home (FTTH)

3) LAN/WAN

4) CATV



Electricity Performance:



Environmental temperature -25 - 55°C
Atmosphere pressure 70~106Kpa
Insulating resistance >2×104 MΩ/500VDC
Relative humidity <85%(when the temperature is below 30°C)
Voltage resistance strength Under the effect of 15kv/DC/1min, non-puncture, and no arc-over

ANSHI Wall Mount Fiber Optic Patch Panel 19 Inch 24 / 48 Port 0ANSHI Wall Mount Fiber Optic Patch Panel 19 Inch 24 / 48 Port 1ANSHI Wall Mount Fiber Optic Patch Panel 19 Inch 24 / 48 Port 2
