IP65 16 Port Outdoor Fiber Distribution Box For FTTH

IP65 16 Port Outdoor Fiber Distribution Box For FTTH

  • IP65 16 Port Outdoor Fiber Distribution Box For FTTH
  • IP65 16 Port Outdoor Fiber Distribution Box For FTTH
  • IP65 16 Port Outdoor Fiber Distribution Box For FTTH

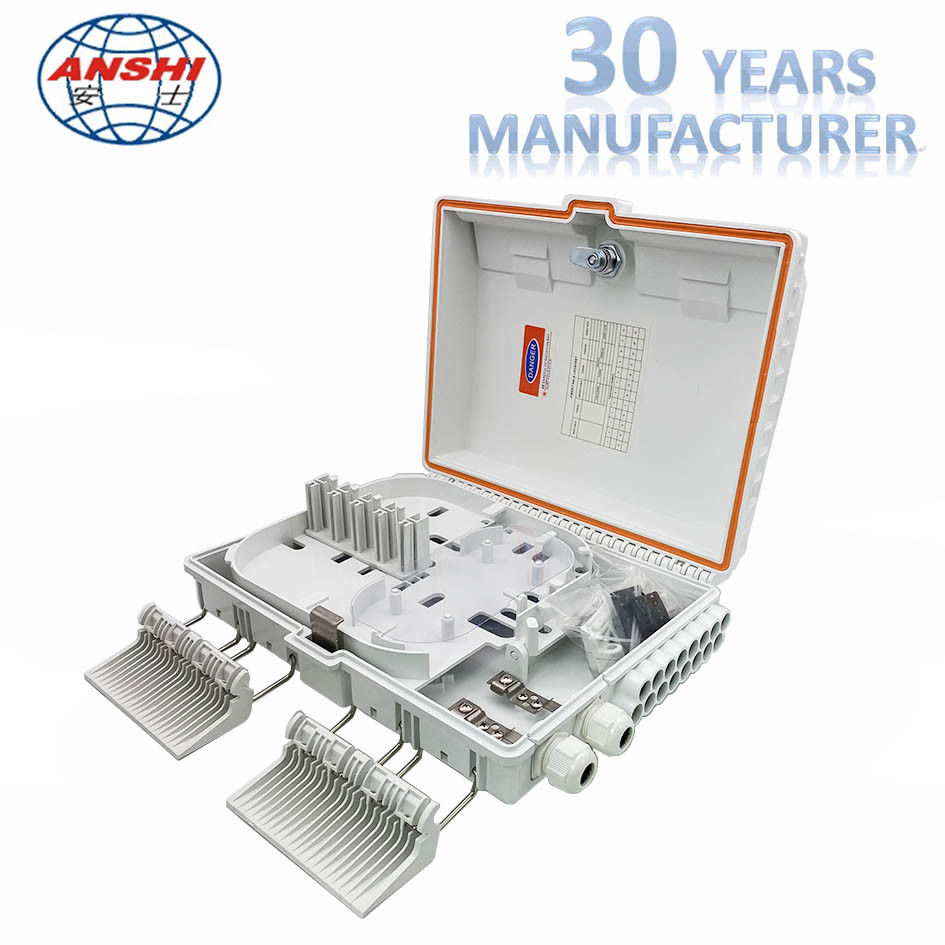

IP65 16 Port Outdoor Fiber Distribution Box For FTTH
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ROHS, ISO9001
Model Number: AS-ODF-FDB-16A
Payment & Shipping Terms:
Minimum Order Quantity: Can Discuss
Price: Negotiable
Supply Ability: 2000pcs/week
Contact Now
Detailed Product Description
Product Name: FTTH Terminal Box Material: ABS Or PC+ABS
Dimension: 300*245*100 Mm IP Rate: IP65
Ports: 2 Inlet 16 Outlet Capacity: 16 Cores
High Light:

16 Port Outdoor Fiber Distribution Box

,

IP65 Outdoor Fiber Distribution Box

,

16 Port FTTH Terminal Box

16 Port Outdoor Fiber Distribution Box Black Outdoor optical distribution Frame



Description:



Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.



Features:



The box is made of ABS, and lifetime is more than 20 years.

It also can be used under -30°c.

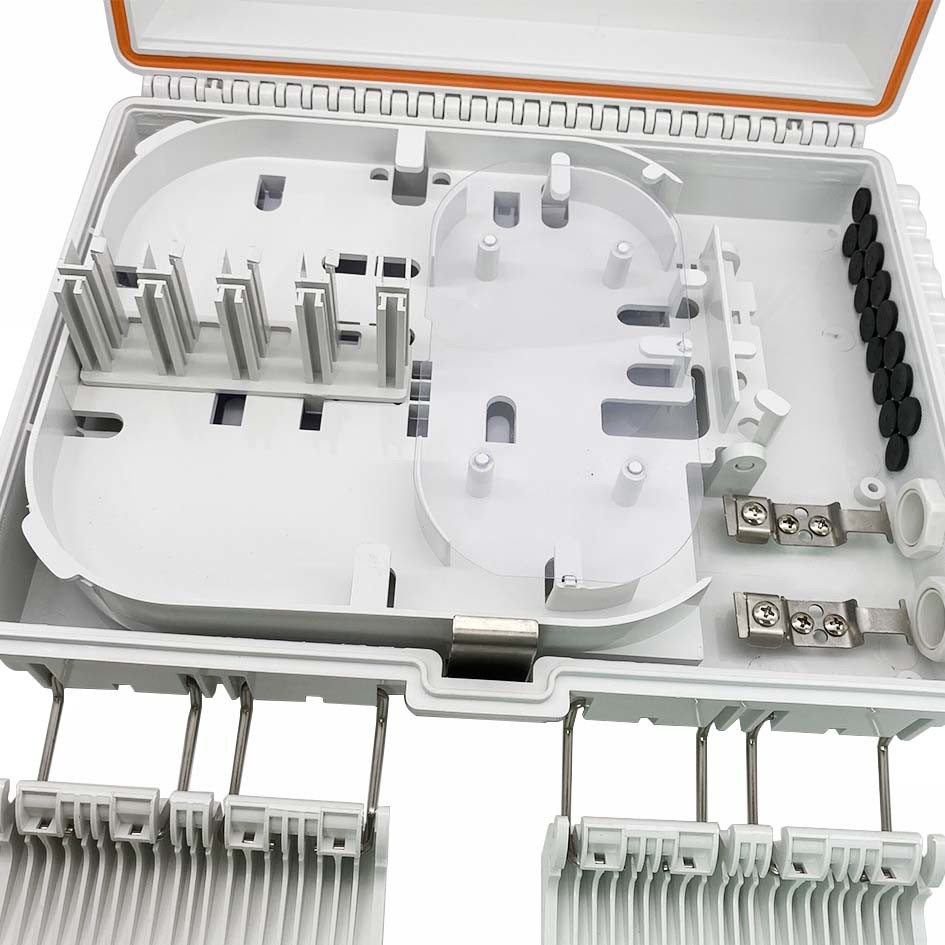

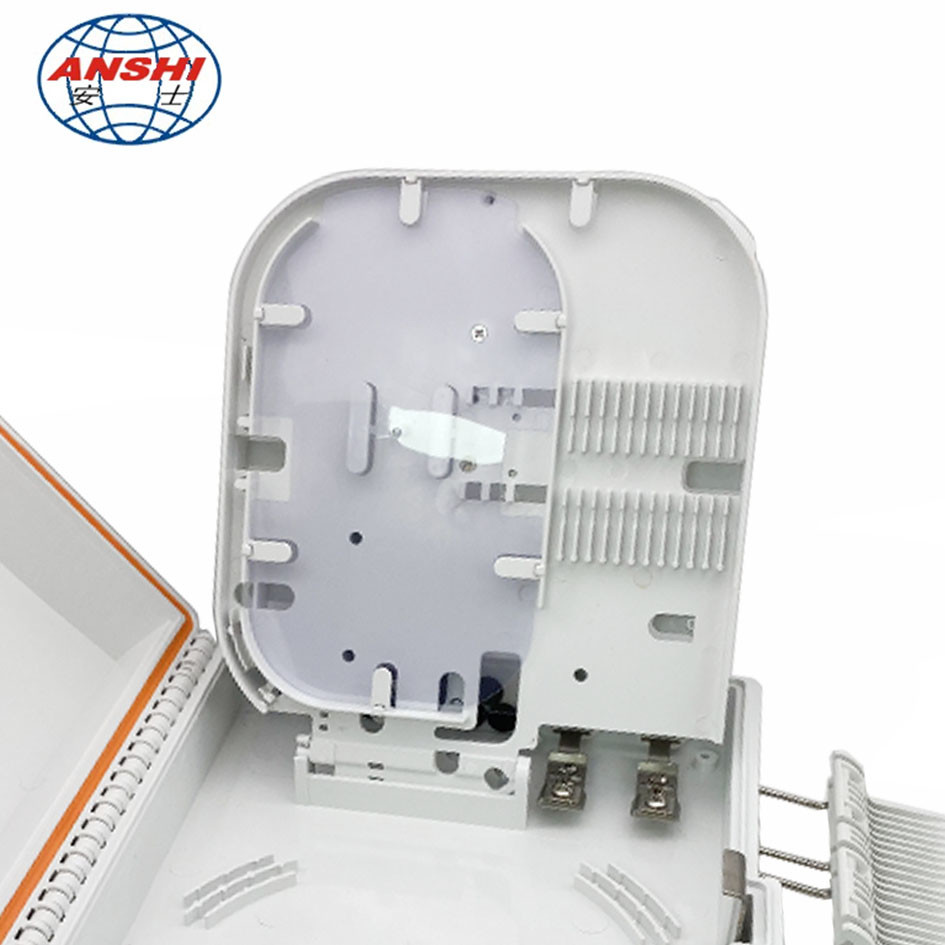

Bi-layer structure design. The upper layer is for optical splitter, the other layer is for fiber splicing.

Easy to operate. Usually installed as wall mounted in the building or at the green belt.

It can accommodate 16 pcs SC Simplex or LC Duplex dapters.

It can be designed to client requirements.

It meets YD/T988-2007 standards.



Application:



FTTH access network

CATV Networks
Telecommunication Networks
Data communications Networks



Operation conditions:

Temperatures:-40℃ — 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa

IP65 16 Port Outdoor Fiber Distribution Box For FTTH 0IP65 16 Port Outdoor Fiber Distribution Box For FTTH 1IP65 16 Port Outdoor Fiber Distribution Box For FTTH 2
