High Speed, High Quality, Best Service
Place of Origin: | China |
Brand Name: | ANSHI |
Certification: | ROHS, ISO9001 |
Model Number: | AS-ODF-FDB-16C |
Minimum Order Quantity: | Can Discuss |
---|---|
Price: | Negotiable |
Supply Ability: | 2000pcs/week |
Product Name: | FTTH Terminal Box | Material: | PC+ABS |
---|---|---|---|

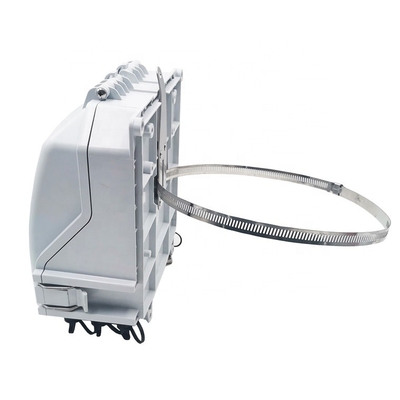

Protection Grade: | IP65 | Install: | Wall Mounting Type And Pole |
Environment: | Outdoor Or Indoor | Sealing Method: | With Key |
Function: | Waterproof | Capacity: | 16 Core SC Simplex Or LC Duplex |
Application: | FTTH System | Dimension: | 208X241X117mm |
High Light: | 16 core ftth distribution box,ip65 ftth distribution box,huawei connector ftth distribution box |

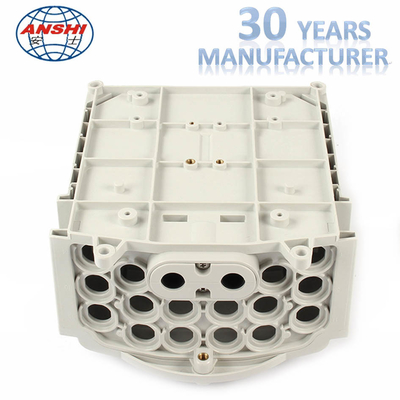

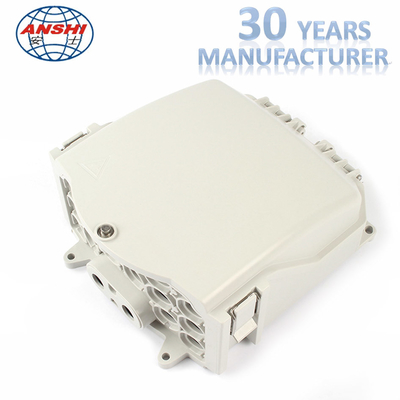

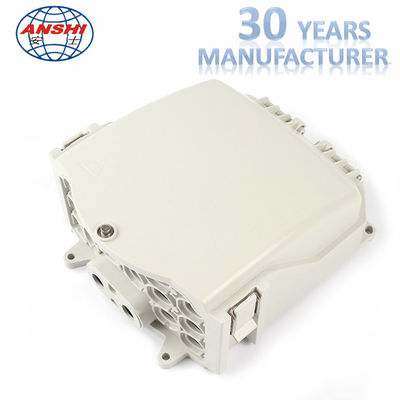

16 Port Outdoor Fiber Distribution Box Black Outdoor optical distribution Frame
Name | FTTA Nap Fiber Distribution Box with Huawei Waterproof Connectors |
Model | AS-ODF-FDB-16C |
Size (Pic 1) A*B*C(mm) | 208X241X117mm |
Installation Size(Pic 2) (mm) | D*E*F: 179*212*126 G*H: 21*52 |
Capacity | 16 Core, Huawei Mini SC IP rated Waterproof connectors |
In-put Port | Cable diameter:12mm |
Output Port | Suitable for HUAWEI Type Waterproof Connector |
Material | PC+ABS |
Protection Grade | IP68 |
Description:
Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
Features:
The box is made of ABS, and lifetime is more than 20 years.
It also can be used under -30°c.

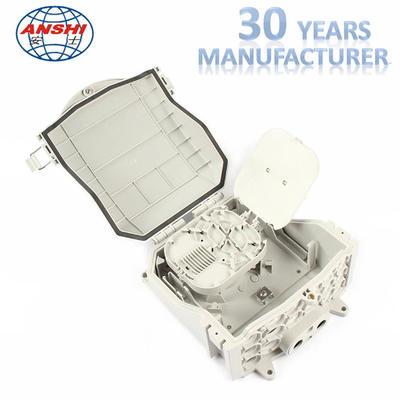

Bi-layer structure design. The upper layer is for optical splitter, the other layer is for fiber splicing.
Easy to operate. Usually installed as wall mounted in the building or at the green belt.
It can accommodate 16 pcs SC Simplex or LC Duplex dapters.
It can be designed to client requirements.
It meets YD/T988-2007 standards.
Application:
FTTH access network
CATV Networks
Telecommunication Networks
Data communications Networks
Operation conditions:
Temperatures:-40℃ — 80℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa
