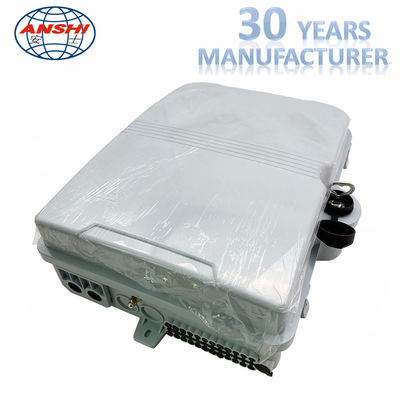

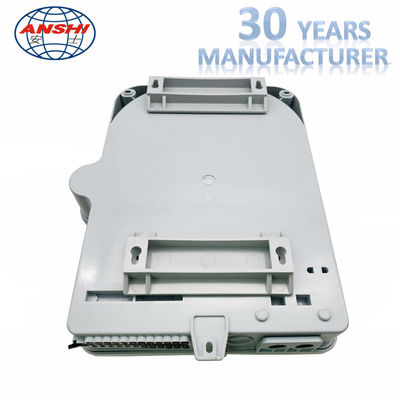

16 Cores PLC Cassette Type or 24 Cores adapter and pigtail Outdoor Fiber Distribution Box

16 Cores PLC Cassette Type or 24 Cores adapter and pigtail Outdoor Fiber Distribution Box

  • 16 Cores PLC Cassette Type or 24 Cores adapter and pigtail Outdoor Fiber Distribution Box
  • 16 Cores PLC Cassette Type or 24 Cores adapter and pigtail Outdoor Fiber Distribution Box
  • 16 Cores PLC Cassette Type or 24 Cores adapter and pigtail Outdoor Fiber Distribution Box
  • 16 Cores PLC Cassette Type or 24 Cores adapter and pigtail Outdoor Fiber Distribution Box
16 Cores PLC Cassette Type or 24 Cores adapter and pigtail Outdoor Fiber Distribution Box
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ROHS, ISO9001
Model Number: AS-ODF-FDB-24E
Payment & Shipping Terms:
Minimum Order Quantity: Can Discuss
Price: Negotiable
Supply Ability: 2000pcs/week
Contact Now
Detailed Product Description
Product Name: FTTH Terminal Box Material: PC
Protection Grade: IP55 Install: Wall Mounting Type And Pole
Environment: Outdoor Or Indoor Sealing Method: With Key
Function: Waterproof Capacity: 24 Core SC Simplex Or LC Duplex
Application: FTTH System Size: 330x240x100mm

24 Port Outdoor Fiber Distribution Box Black Outdoor optical distribution Frame



Description:



Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.



Features:



The box is made of PC, and lifetime is more than 20 years.

It also can be used under -30°c.

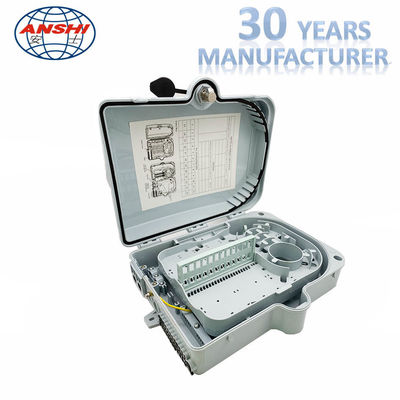

Bi-layer structure design. The upper layer is for optical splitter, the other layer is for fiber splicing.

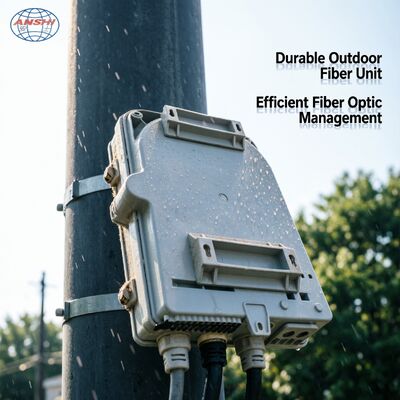

Easy to operate. Usually installed as wall mounted in the building or at the green belt.

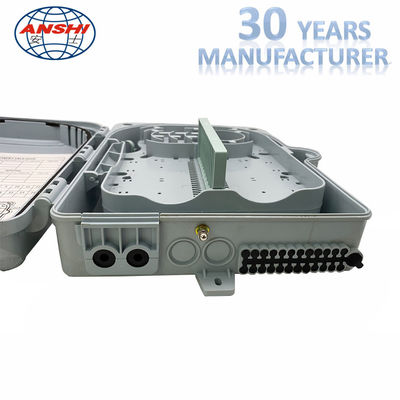

It can accommodate 24 pcs SC Simplex or LC Duplex dapters.

It can be designed to client requirements.

It meets YD/T988-2007 standards.



Application:



FTTH access network

CATV Networks
Telecommunication Networks
Data communications Networks



Operation conditions:

Temperatures:-40℃ — 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa
