Wall Mounting IP68 FTTH 144 Port Fiber Optic Closure

  • Wall Mounting IP68 FTTH 144 Port Fiber Optic Closure
  • Wall Mounting IP68 FTTH 144 Port Fiber Optic Closure
  • Wall Mounting IP68 FTTH 144 Port Fiber Optic Closure
  • Wall Mounting IP68 FTTH 144 Port Fiber Optic Closure
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-GPJ-JTH
Minimum Order Quantity Can Discuss
Price Negotiable
Supply Ability 2000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name FTTH Terminal Box Protection Grade IP68
Install Wall Mounting Type And Pole Environment Outdoor Or Indoor
Sealing Method With Key Function Waterproof
Capacity 144 Core SC Simplex Or LC Duplex Application FTTH System
Highlight

IP68 FTTH Terminal Box

,

144 Port Fiber Optic Closure
Leave a Message
Product Description

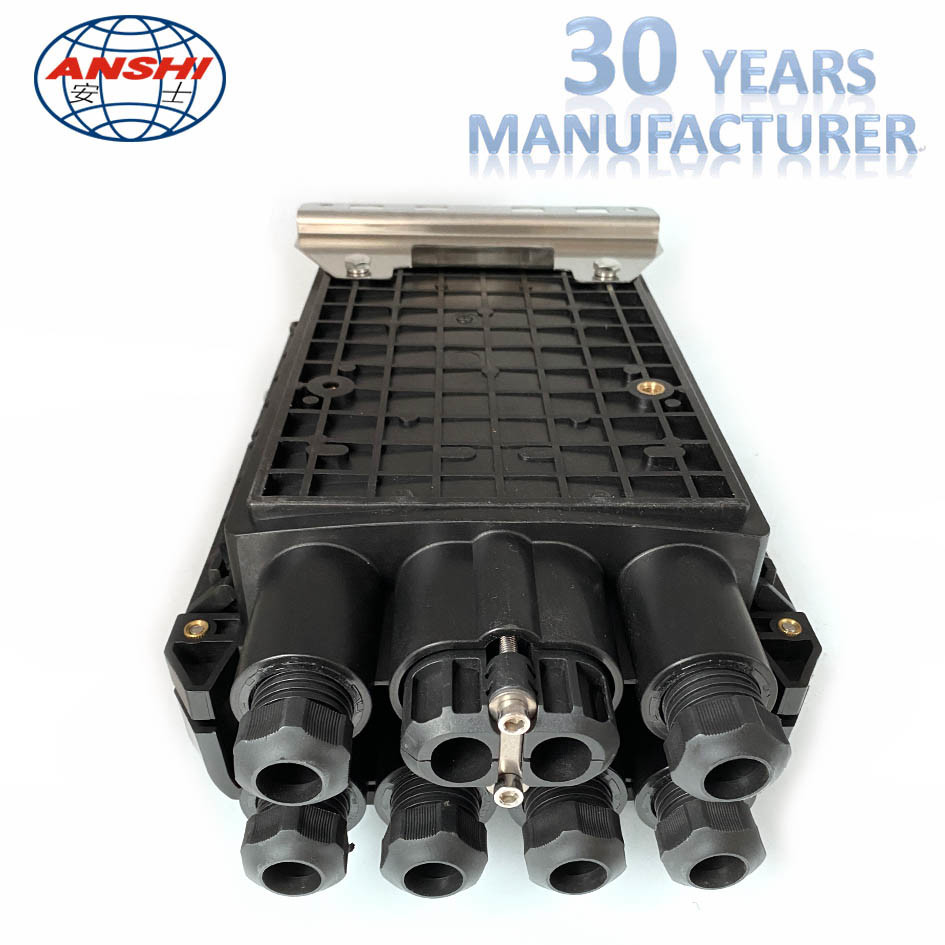

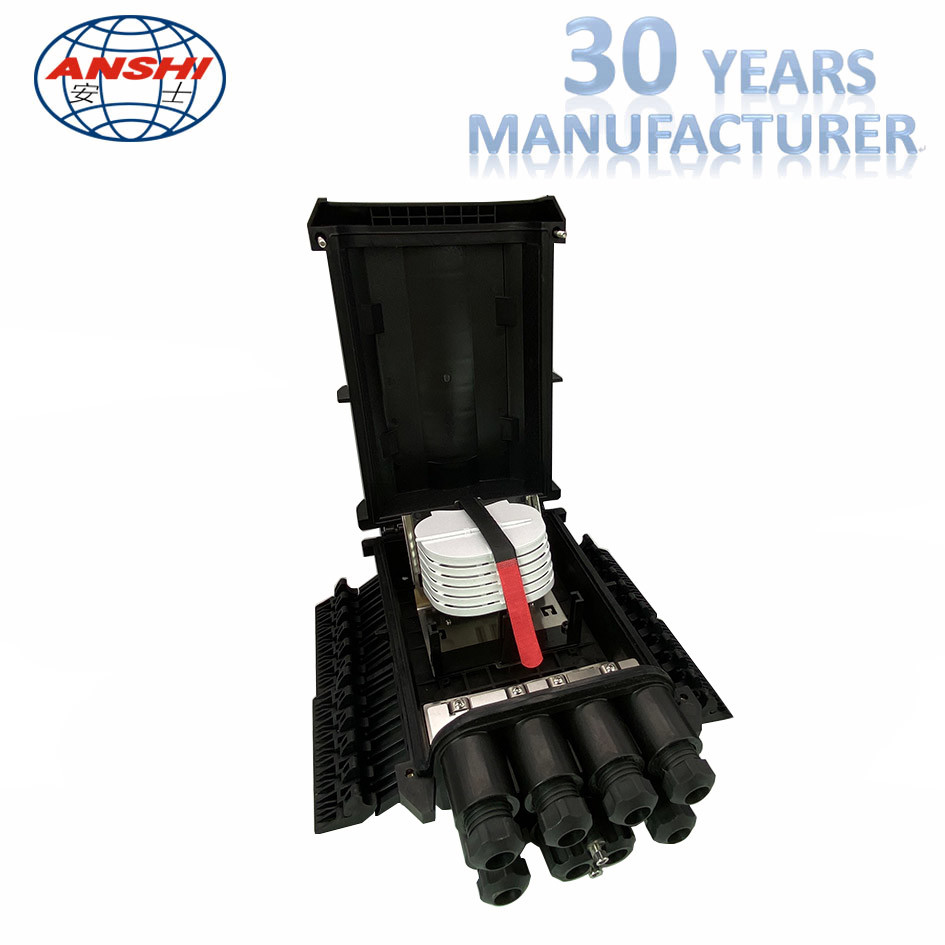

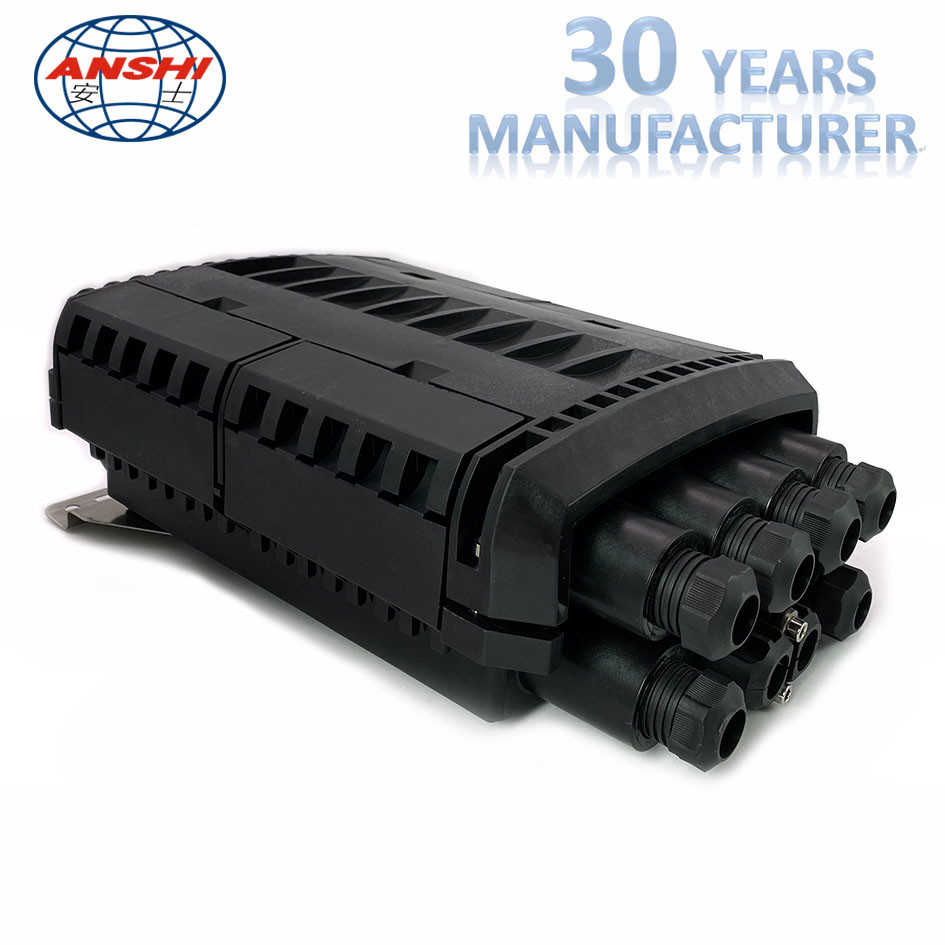

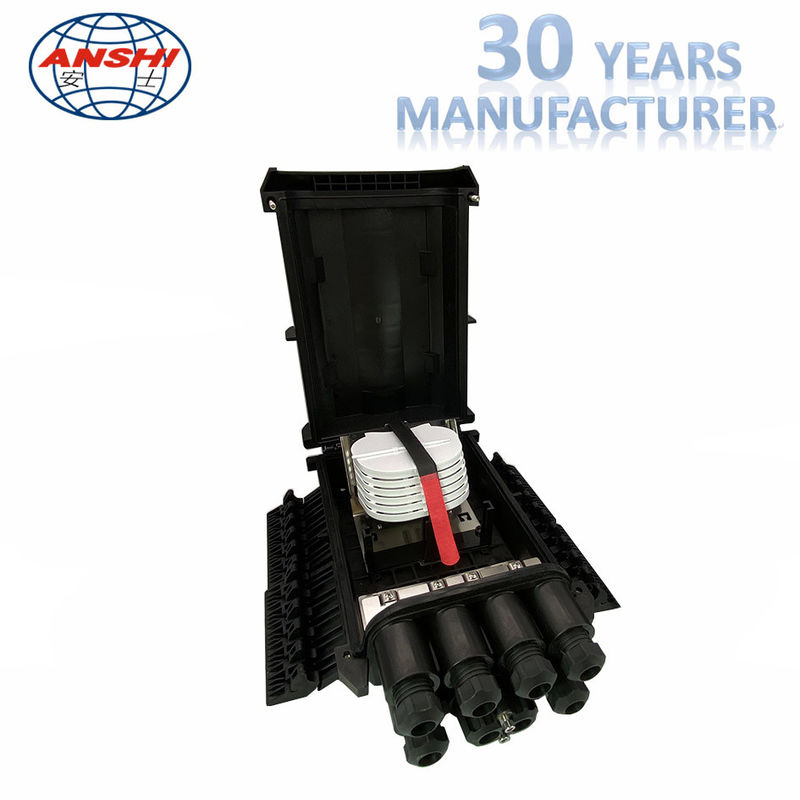

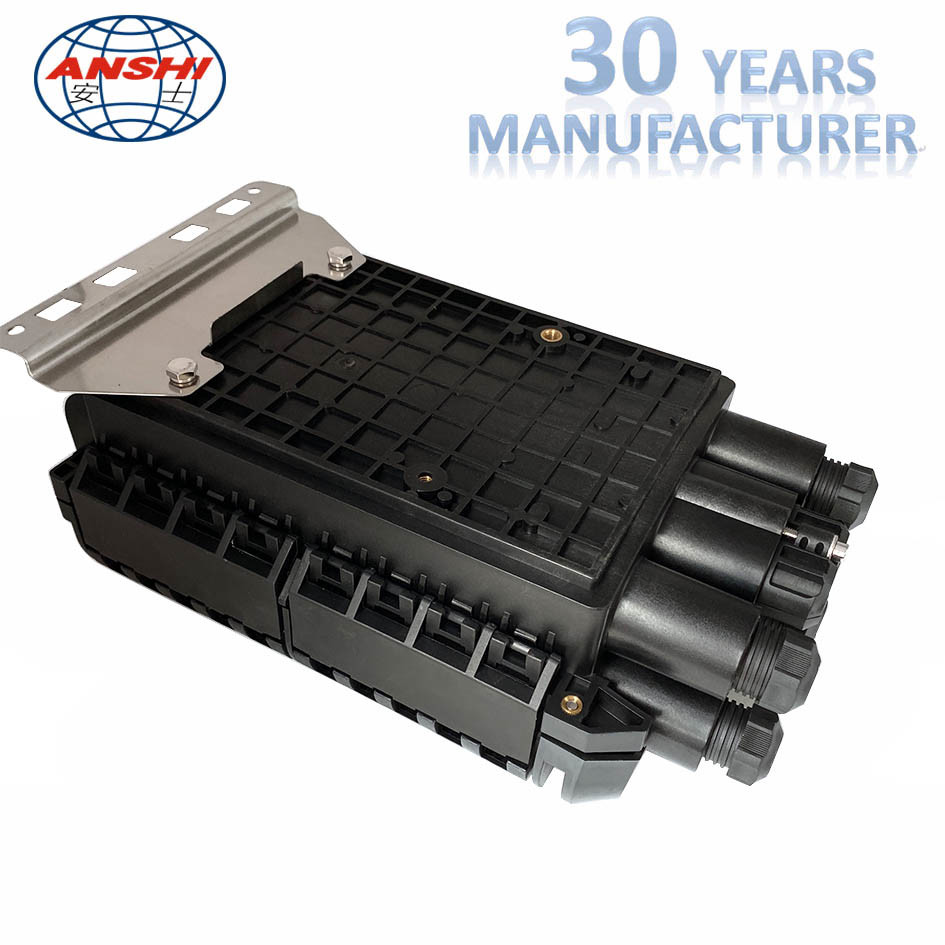

144 Port Outdoor Fiber Optic Closure



Description:



AS-GPJ-JTH optical fiber switch capacitor is used for connection and protection of optical cable. The model has eight cable ports, which can be used in different optical cable connection and branch applications, and it is suitable for overhead, in pipe and direct buried applications.





Dimension(mm) 380*245*130

Max. capacity(single

fiber)

 144
Weight(kg) 5 Sealing type Mechanical
Entrances 6 Capacity of Tray(Single fiber)



24

Max cable

diameter(mm)

 Φ20mm

Maximum number of

trays

 6



Application:



FTTH access network

CATV Networks
Telecommunication Networks
Data communications Networks



Operation conditions:

Temperatures:-40℃ — 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa

Wall Mounting IP68 FTTH 144 Port Fiber Optic Closure 0



Tags:

optical distribution box

fiber optic splitter box

waterproof junction box
