|Place of Origin:||China|
|Minimum Order Quantity:||Can Discuss|
|Product Name:||FTTH Terminal Box||Material:||ABS|
|Protection Grade:||IP55||Install:||Wall Mounting Type And Pole|
|Environment:||Outdoor Or Indoor||Sealing Method:||With Key|
|Function:||Waterproof||Capacity:||16 Core SC Simplex Or LC Duplex|
CATV Networks Fiber Distribution Box,
SC Simplex Fiber Distribution Box

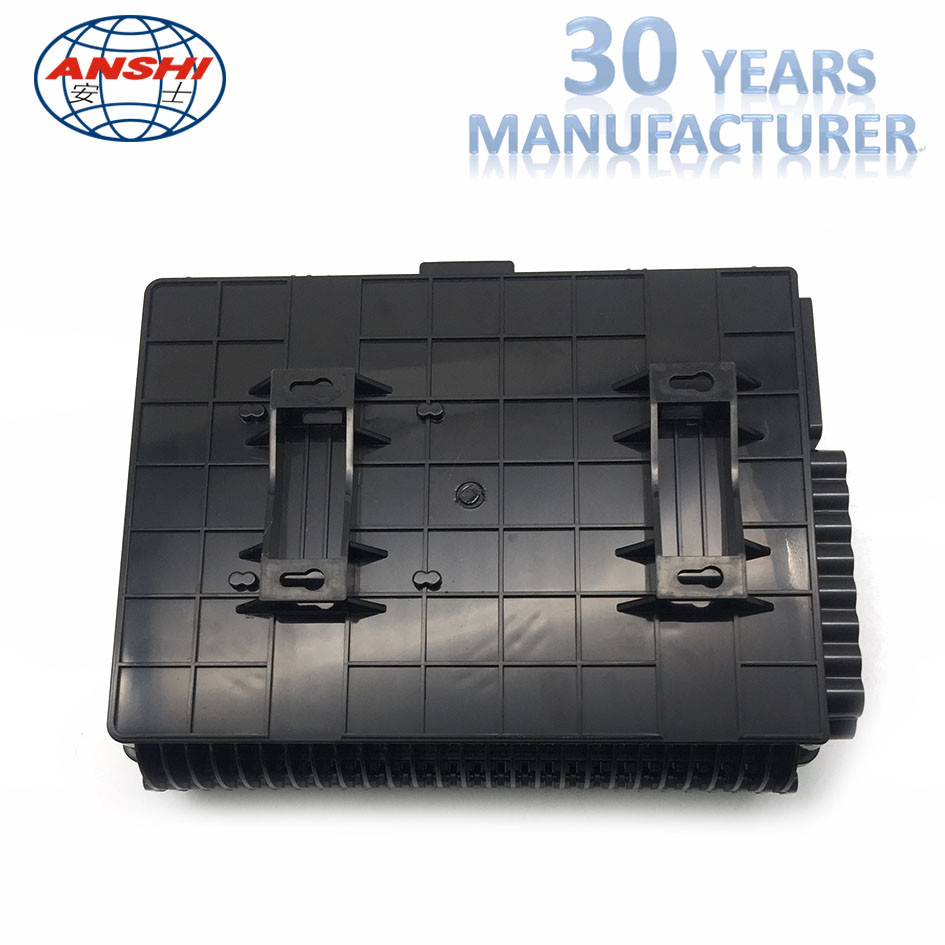

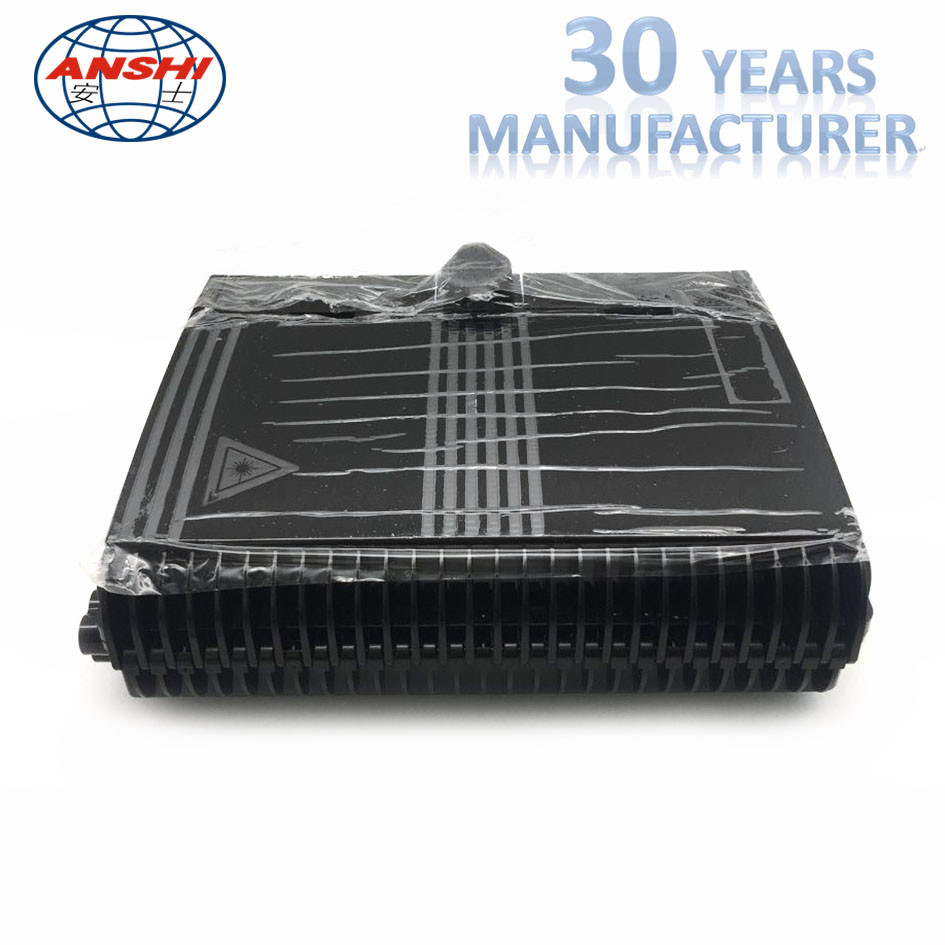

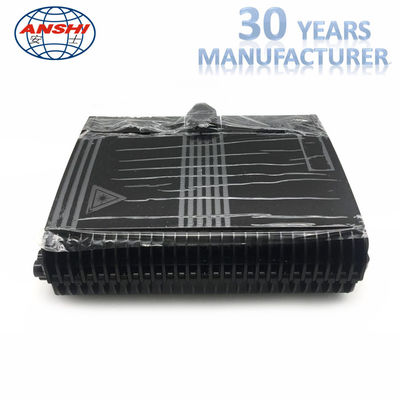

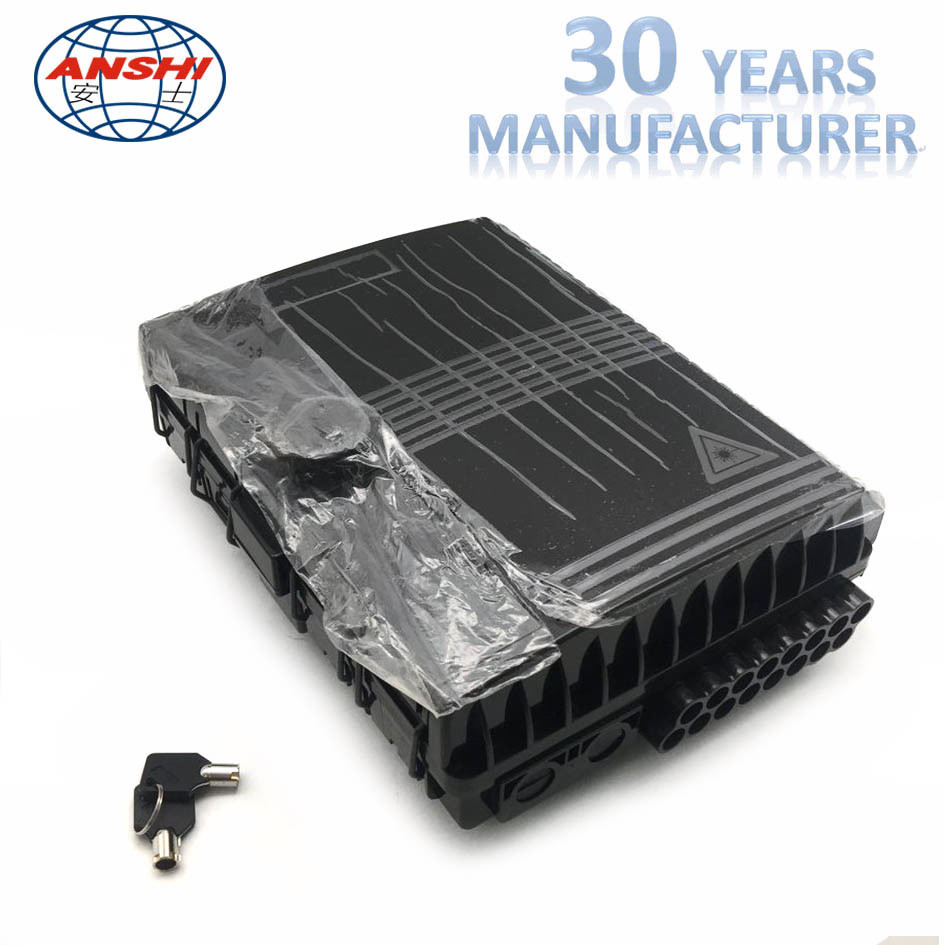

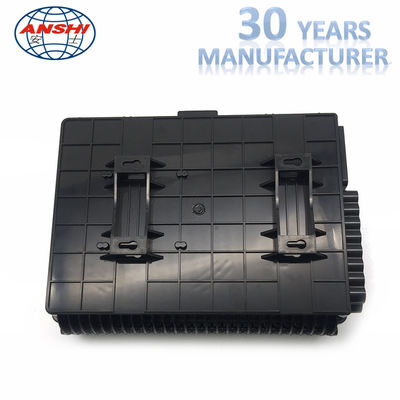

16 Port Outdoor Fiber Distribution Box Black Outdoor optical distribution Frame
Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
The box is made of ABS, and lifetime is more than 20 years.
It also can be used under -30°c.

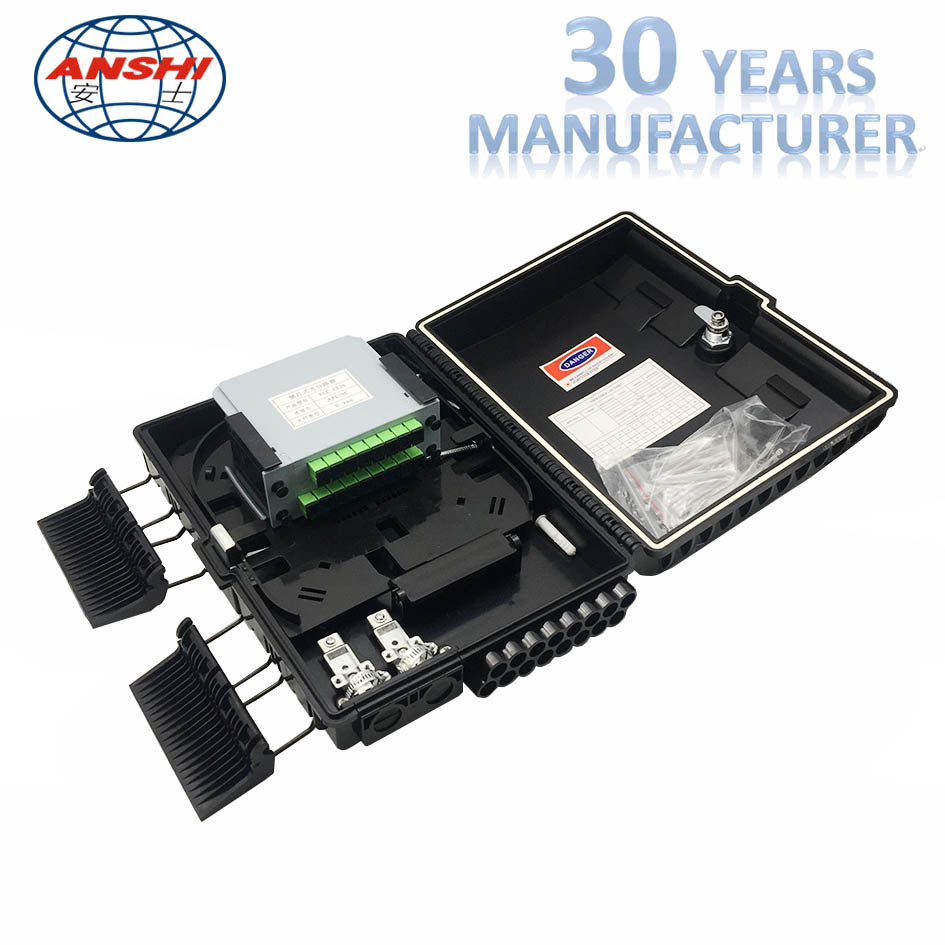

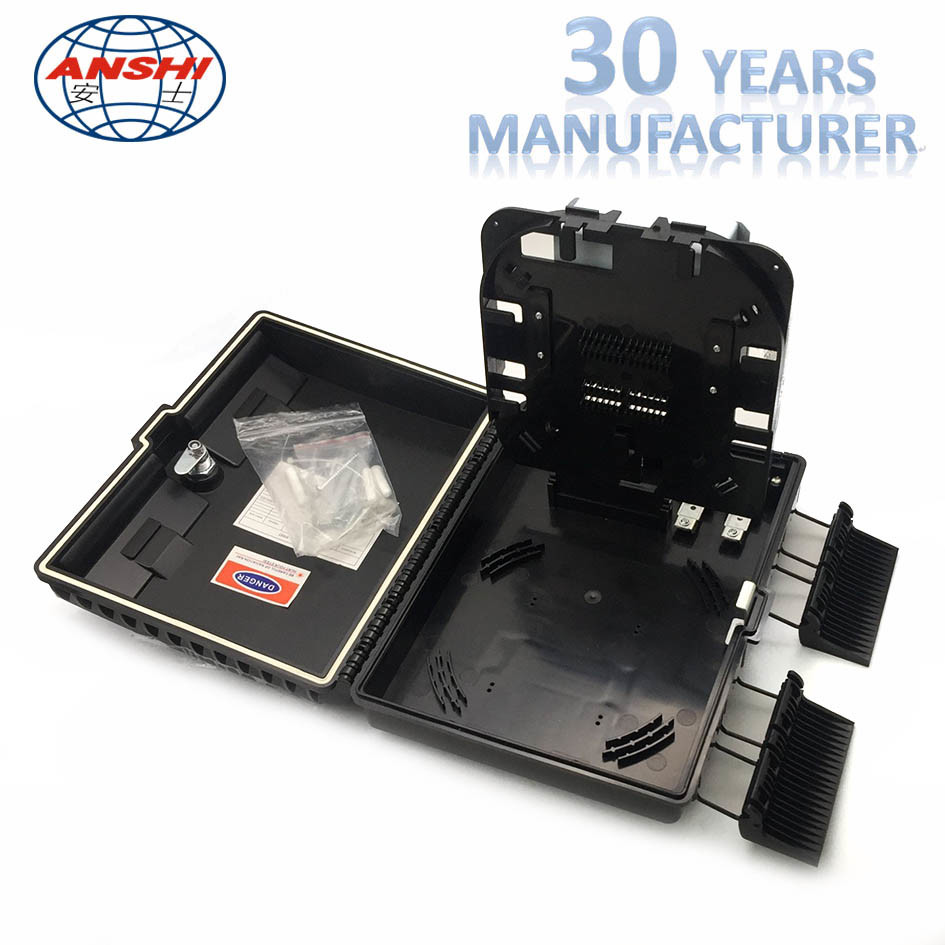

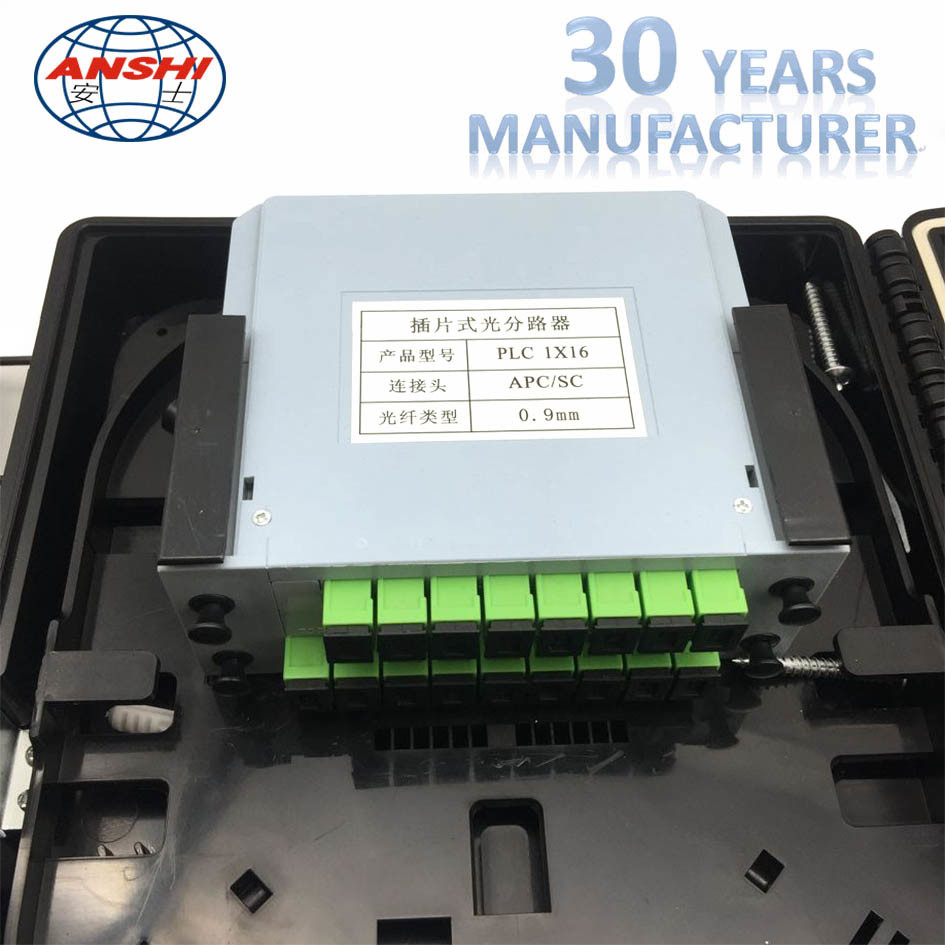

Bi-layer structure design. The upper layer is for optical splitter, the other layer is for fiber splicing.
Easy to operate. Usually installed as wall mounted in the building or at the green belt.
It can accommodate 16 pcs SC Simplex or LC Duplex dapters.
It can be designed to client requirements.
It meets YD/T988-2007 standards.
FTTH access network
Data communications Networks
Temperatures:-40℃ — 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa
