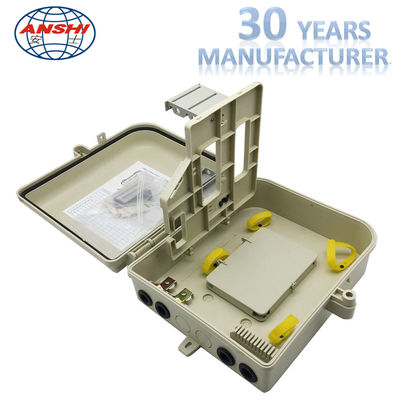

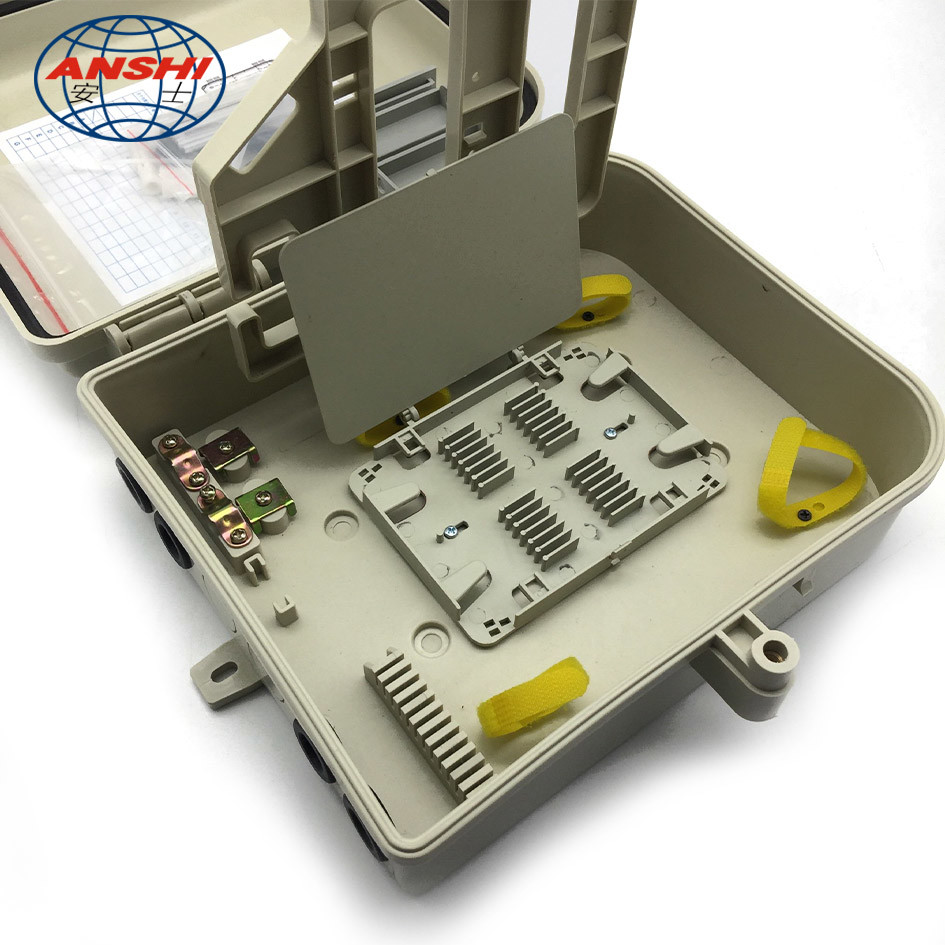

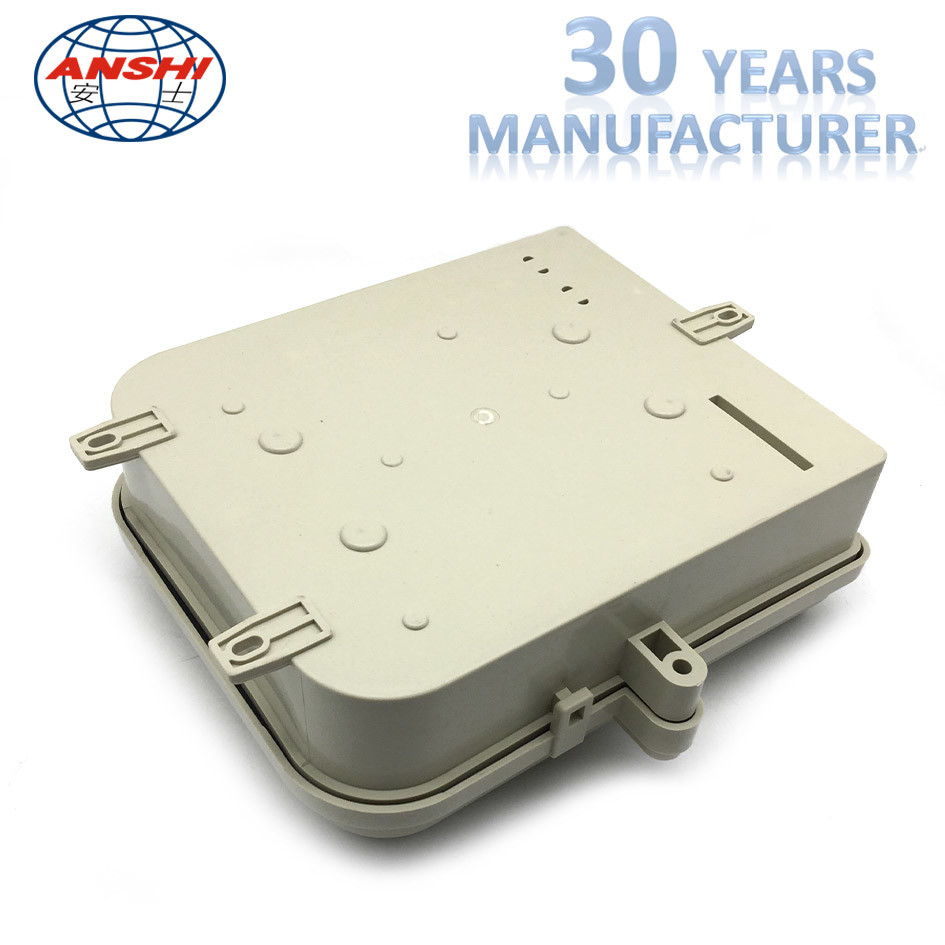

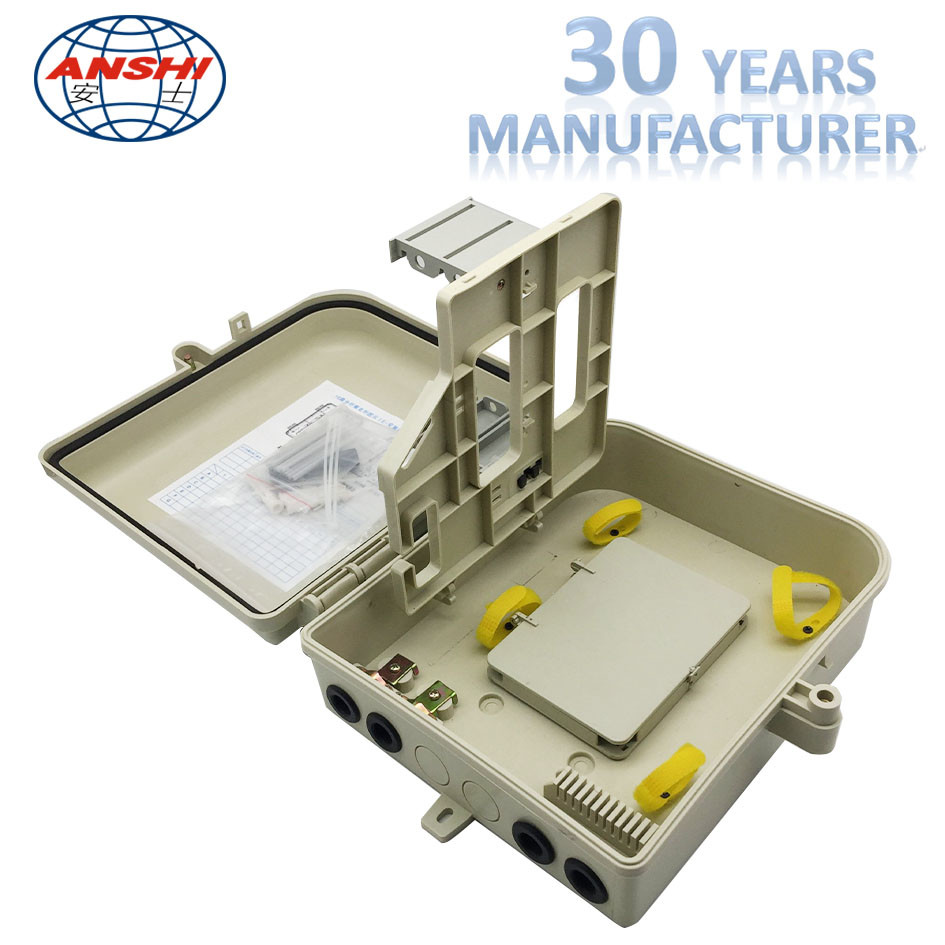

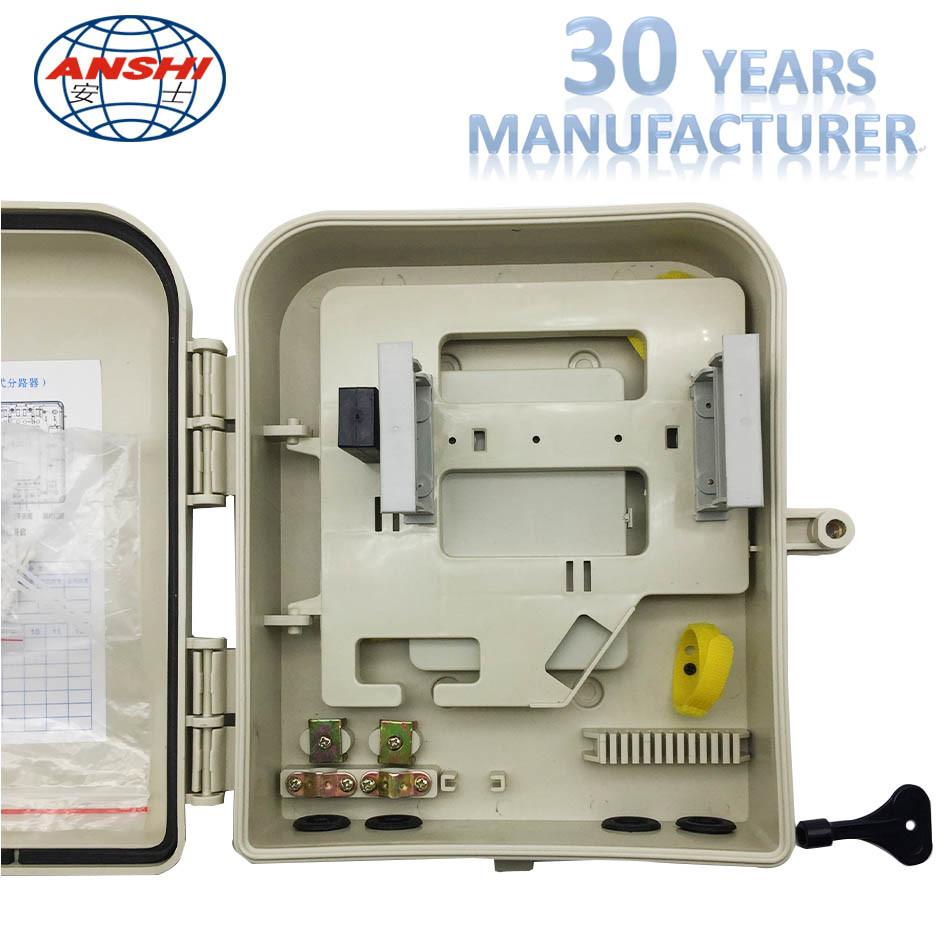

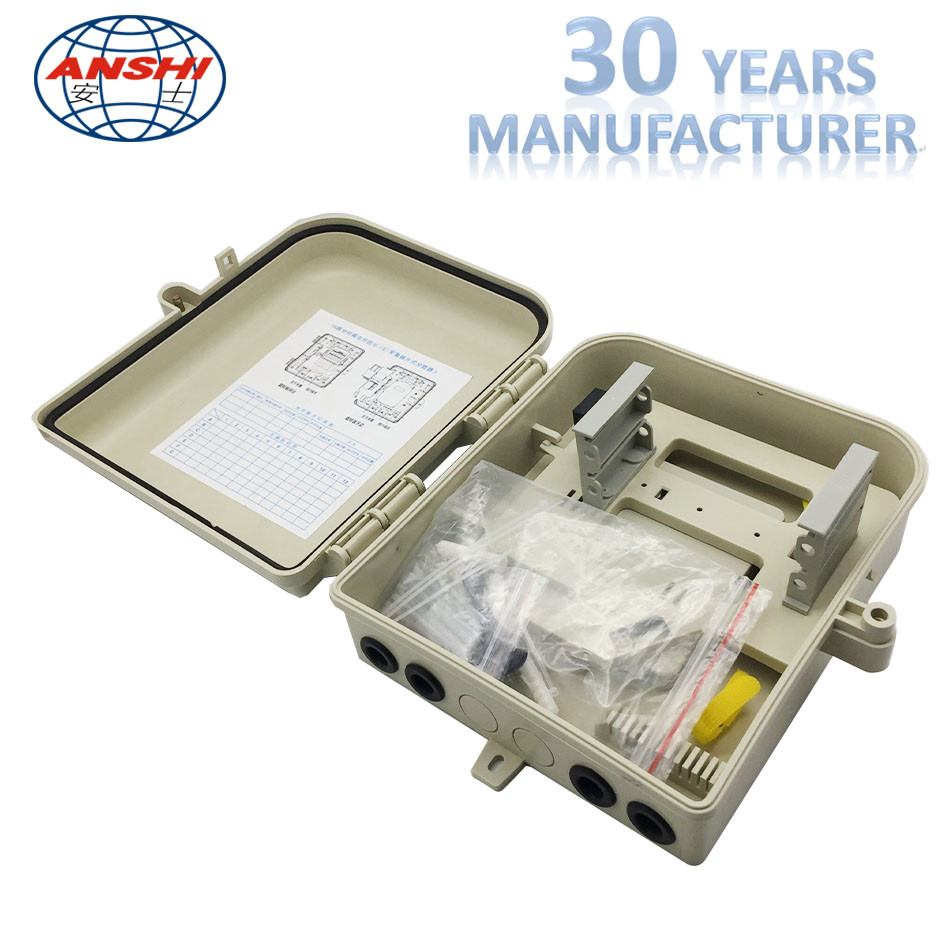

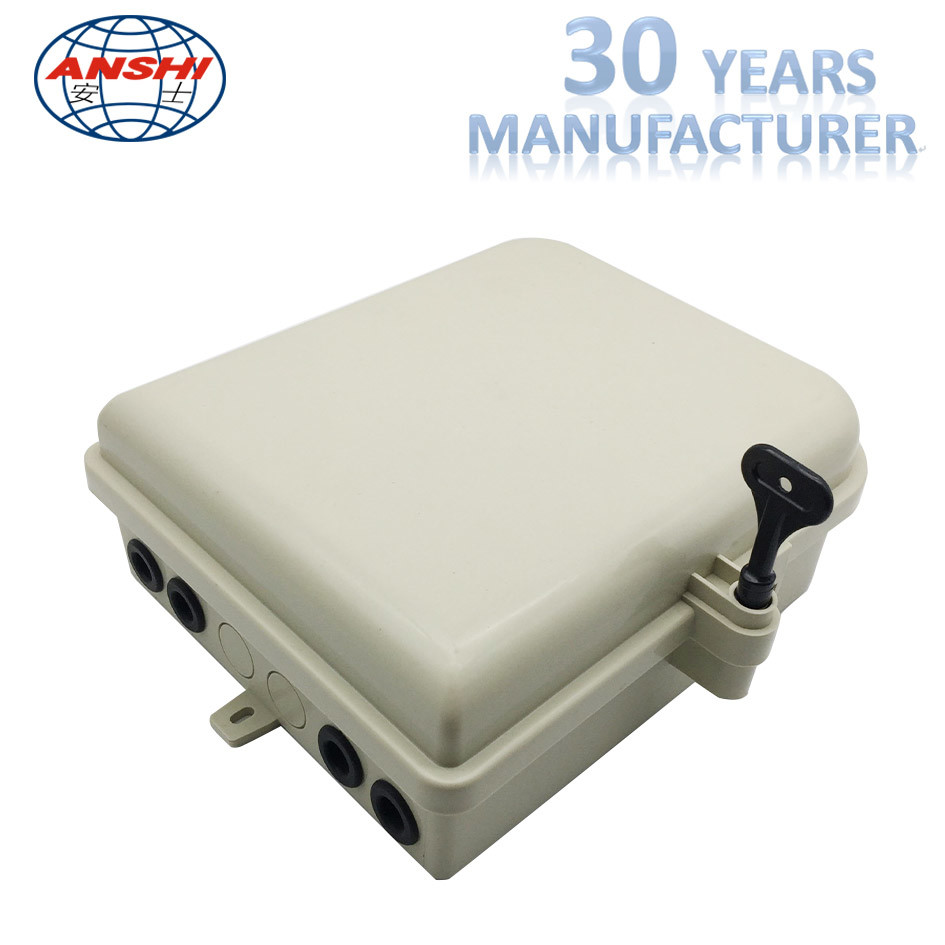

SMC 16 Core SC FTTH PLC Splitter Box

Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-ODF-FDB-16SMC
Minimum Order Quantity 100
Price Negotiable
Supply Ability 2000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Optic Splitter Box Material SMC
Protection Grade IP55 Install Wall Mounting Type And Pole
Environment Outdoor Dimension 350*275*100
Function Waterproof Capacity 16 Core SC
Application FTTH System
Highlight

optical distribution box

,

fiber optic splitter box

Leave a Message
Product Description
16core Outdoor Fiber Optic Terminal Box Plastic Smc Ftth Plc Splitter Box

Applicance


This distribution box terminates outside optical cables with up to 16 fibers; it allocates 16 adapters for connecting with max 16 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.



Features


PC material used ensures the body strong and light
Protection Level: IP55
Water-proof design for outdoor uses, lock provided for extra security
Easy installations: Ready for wall mount – installation kit provided
Adjustable adapter slotused – to suit different size pigtails
Space saving! Double-layer design for easier installation and maintenances
Lower layer for splicing, also suitable for mini splitters
Upper layer for adapters, connectors and fiber distribution
Cable fixing units provided for fixing the outdoor optical cable
Both cable glands and tie-wraps accessible
Pre-connectorized cables supported (pre-connected with fast-connectors)
Bend radius protected and cable routing paths provided





Product Name
fiber optic splitter box
Model number
AS-ODF-FDB-16SMC
Material
SMC
Color
White,customized
Adapter Capacity
LC Duplex/SC Simplex 16
splitter ratio
1:16
Dimension(W*H*D,mm)
350*275*100mm
Weight
2457g
Number of Cable Entrance(s) and Exit(s)
2/2
Protection level
IP55
Door opening angle
≥ 180 °
Board flip angle ≥
≥135°
Insertion Loss
≤0.2 dB
UPC Return Loss
≥50 dB
APC Return Loss
≥60 dB
Installation
Wall-mounted/Pole-mounting
Humidity
93% at 40℃
Air pressure
62kPa – 101kPa
Optional accessories
Adapters,Pigtails,Heat-shrink tubes,Optical splitter
