8 Port Wall Mounted Distribution Box 8 Core Waterproof For Local Area Network

Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-ODF-FDB-8A
Minimum Order Quantity 100
Price Negotiable
Supply Ability 2000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ftth Distribution Box Material PC+ABS
Protection Grade IP65 Install Wall Mounting Type And Pole
Environment Outdoor Or Indoor Dimension 192*133*47mm,
Sealing Method With Key Function Waterproof
Capacity 8 Core SC Application FTTH System
Highlight

optical distribution box

,

waterproof junction box

Leave a Message
Product Description

8 Port wall mounted distribution box 8 Core Waterproof For Local Area Network

Production Description



Fiber optic distribution box is used for the distribution connection of cable and fiber optic communication

devices. It leads out optic signal from drop cable to pigtails by splicing in the box. It can be used for protective

connection of cable and layout pigtails, and fiber optic termination of fiber access network. It is suitable for

outdoor, corridor, weak current silo or connection points of vilas, for the splicing, storage and distribution of

local cable or drop cable, with capacity of  8 cores.



Feature

  • ABS material used ensures the body strong and light.
  • Water-proof design for outdoor uses.
  • Easy installations: Ready for wall mount – installation kits provided.
  • Adapter slots used – No screws and tools needed for installing adapters.
  • Ready for splitters: designed space for adding splitters.

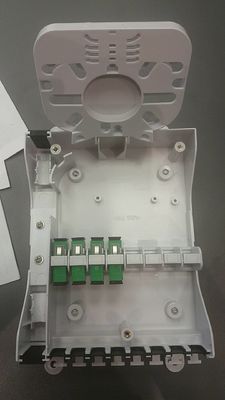

  • Space saving! Double-layer design for easier installation and maintenances:
  • Lower layer for splitters and over length fiber storage.
  • Upper layer for splicing, cross-connecting and fiber distribution.
  • Cable fixing units provided for fixing the outdoor optical cable.
  • Protection Level: IP65.
  • Accommodates both cable glands as well as tie-wraps
  • Lock provided for extra security



Technical Parameter



Working temperature: -20°C~+60°C

Relative humidity: ≤90%(+30℃)

Atmosphere pressure:62-106Kpa

Insertion Loss:lL ≤0.3dB(PC), 1L ≤0.3dB(APC)

Return Loss: PL≥40dB(PC), RL≥50dB(UPC), RL≥60dB(APC)

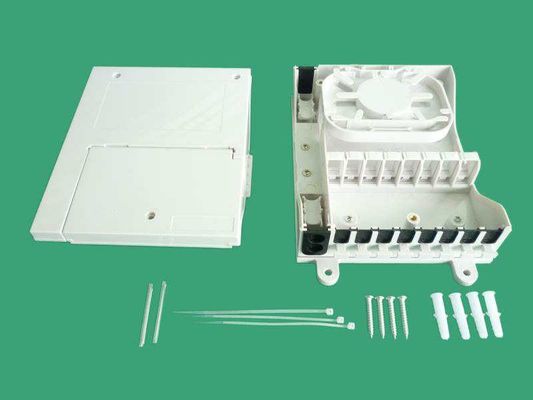

Accessories



Splice cassette and cable management tools, installation nuts and bolts,

heat shrinking tube, rubber seal, hose clamp.



Application



FTTH, FTTB, FTTC

Telecommunication Network

Local Area Network

CATV
