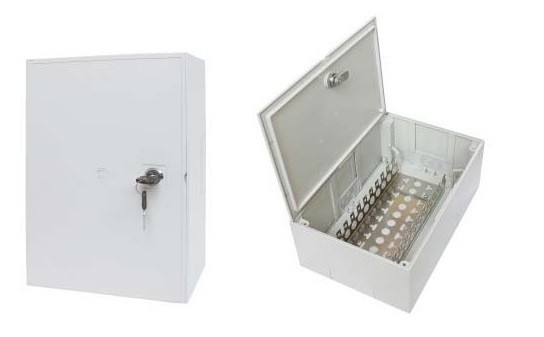

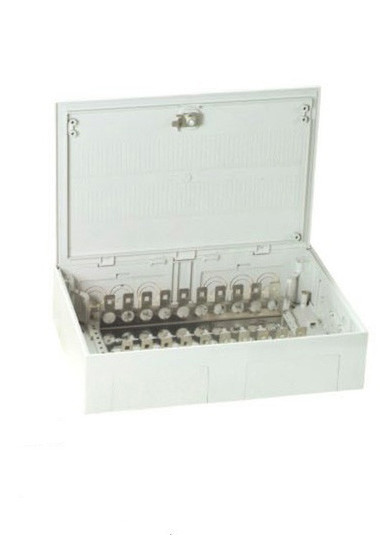

Cable Distribution Box 100 Pair Indoor Screw / Key Lock Krone Distribution Box For LSA Module
Features:
1) Can be mounted with LSA-PLUS 10-pair distribution or connection module
2) Waterproof box, suitable for outdoor wire distribution
3) Material of house: ABS + PC fire-resistant
4) Including stainless steel mounting frame, but modules to be ordered separately
5) Including 1 back mount frame(10ways)
6) Compatible with Krone modules
Specifications:
1. Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;
2. The modules are compatible with KRONE LSA-PLUS modules.
3. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires
4. Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
5. Internal diameter of connection wire: 0.4-0.6 mm
6. The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard
7. Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections
8. Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition
9. Intermediate resistance: no more than 3m ohm under standard examination condition
10. Dielectric strength: according to industry standard
11. Specification:10-30 pairs,Waterless,every specification has connection or disconnection types
12. Life: durability 200 cycles
