Network Cable Distribution Box 10/20/30 Pair Telephone Module Surface Mounting Insert Type

Network Indoor Distribution Box 10/20/30 Pair Telephone Module Surface Mounting insert Type

Features:

1) Can be mounted with LSA-PLUS 10-pair distribution or connection module
2) Waterproof box, suitable for outdoor wire distribution
3) Material of house: ABS or ABS + PC fire-resistant
4) Including stainless steel mounting frame, but modules to be ordered separately
5) Including 1 back mount frame
6) Compatible with Krone modules

AS-DB30W:
1) Capacity: 30 pairs
2) Size: 210 x 135 x 85mm

AS-DB50W:
1) Capacity: 50 pairs
2) Size: 220 x 190 x 87mm

AS-DB100W
1) Capacity: 100 pairs
2) Size: 380 x 185 x 113mm

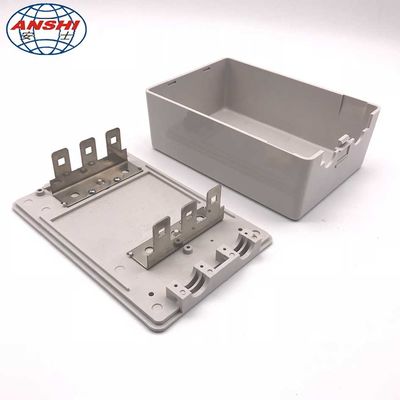

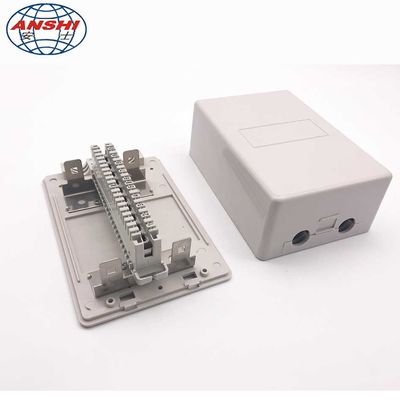

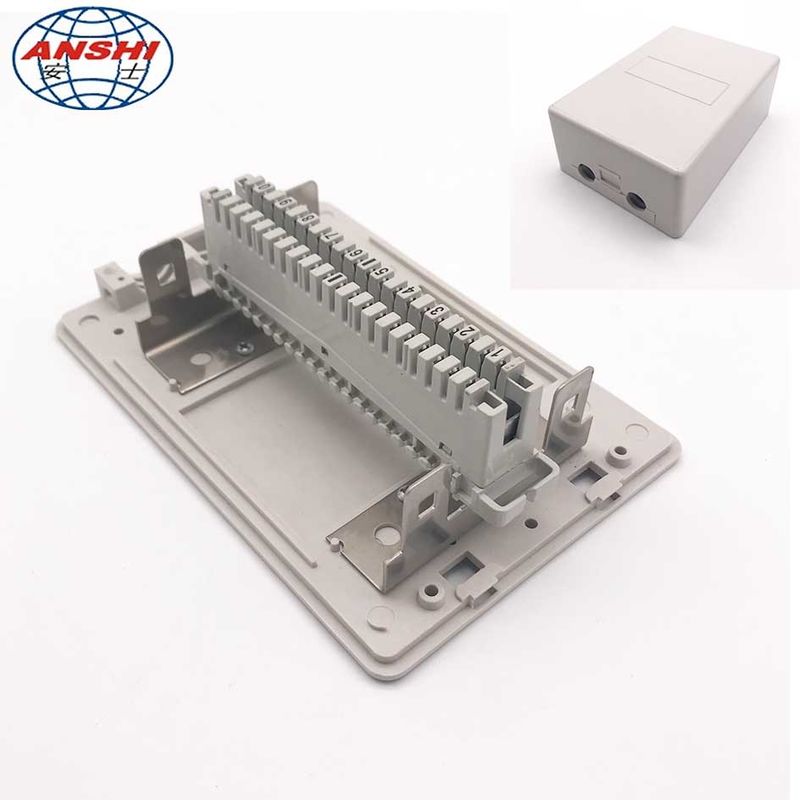

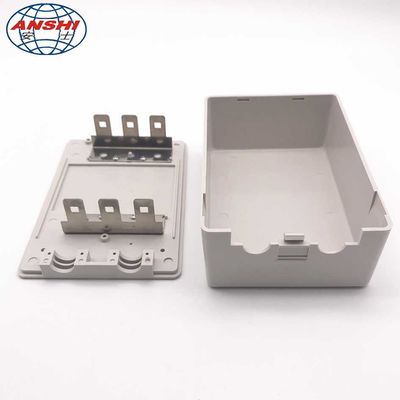

Indoor Distribution Box (10 20 30pairs)

Scope of supply :

• Bottom part
• Top part 102 x 57 x 152 mm (WxDxH)
• Back mount frame for 2 x 10-pair VS Compact
• 2 screws KA40 x 8 mm
• 2 washers
• Duo-adhesive label T+T/neutral 60 x 25 mm
• 2 cable ties, small
• Installation instructions

Distributor, housing type : Housing
Application area : Surface-mounting (SM)
Color code RAL : 9010
Color : pure white
Dimensions : 103 x 163 x 57 mm
Material : housing, plastic: ABS
Protection class (IP) : 30
VS system : VS Compact
Number of pairs : max. 20-pair
Grid size (mm) : 20
