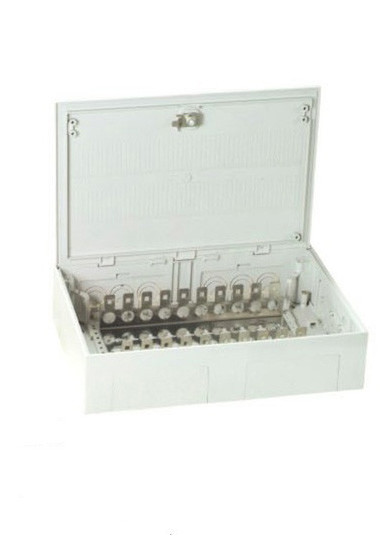

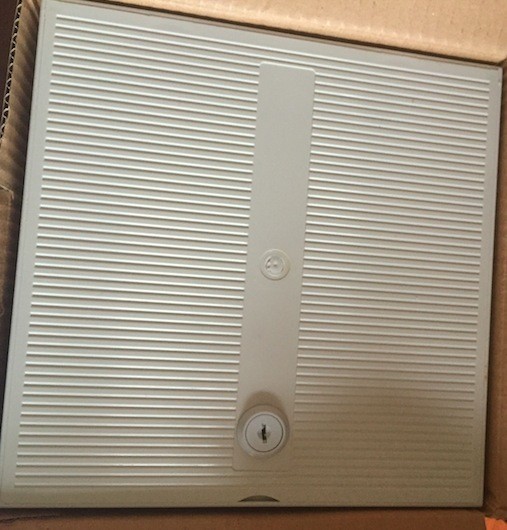

Waterproof Cable Distribution Box 100 Pair White Indoor Termination Box

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO 90001, SGS, DAS
Model Number AS-DB20D
Minimum Order Quantity 500
Price Negotiable
Supply Ability 5000 Pieces per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Fiber Termination Box Material ABS Or PC&ABS
Color White Type 100 Pairs
Lock Coin(screw) Or Key Application Telecommunication
Highlight

indoor distribution box

,

cable distribution cabinet

Leave a Message
Product Description

Cable Distribution Box 100-pair Indoor Coin "/" Key Lock Krone "/" LSA Distribution Box



Features:
1) Can be mounted with LSA-PLUS 10-pair distribution or connection module


2) Waterproof box, suitable for outdoor wire distribution


3) Material of house: ABS or ABS + PC fire-resistant


4) Including stainless steel mounting frame, but modules to be ordered separately


5) Including 1 back mount frame(3ways)


6) Compatible with Krone modules

AS-DB30W:


1) Capacity: 30 pairs


2) Size: 210 x 135 x 85mm




Module:



10 Pairs LSA-PLUS Krone Disconnetion Module





10 Pairs LSA-PLUS Krone Connection Module








Specifications:



1. Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;


2. The modules are compatible with KRONE LSA-PLUS modules.


3. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires


4. Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N


5. Internal diameter of connection wire: 0.4-0.6 mm


6. The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard



7. Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections


8.Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition


9. Intermediate resistance: no more than 3m ohm under standard examination condition


10. Dielectric strength: according to industry standard


11. Specification:10-30 pairs,Waterless,every specification has connection or disconnection types


12. Life: durability 200 cycles
