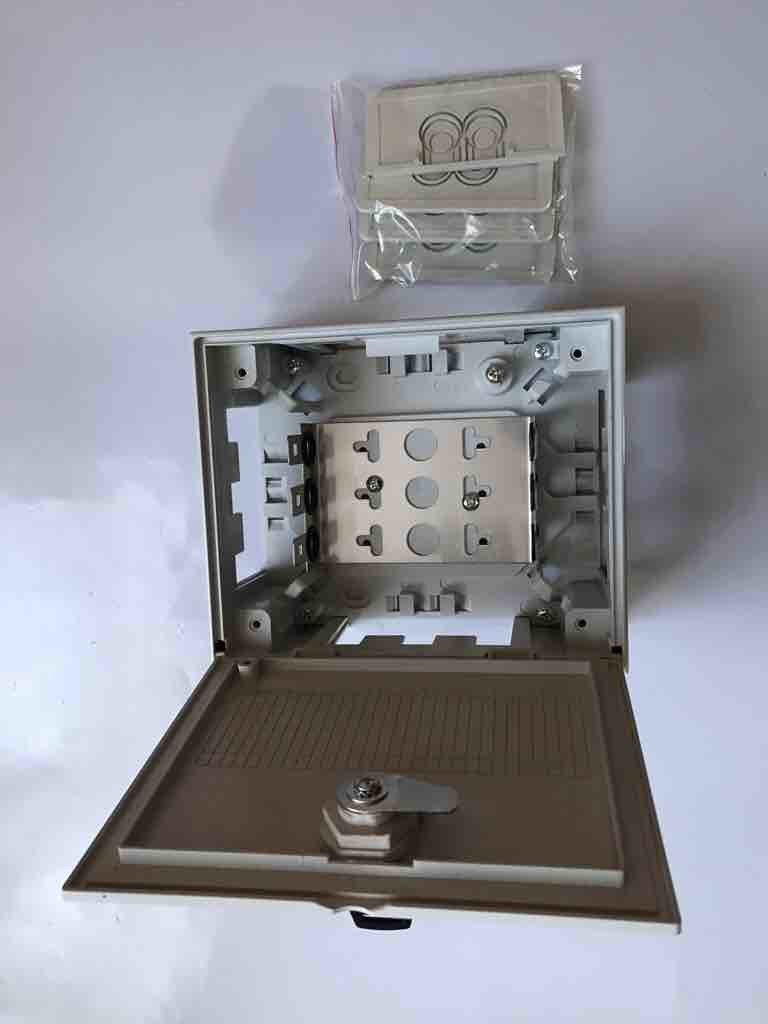

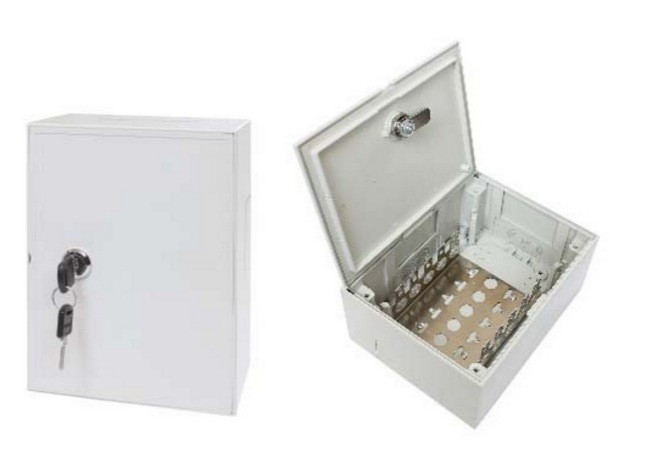

20 Pair Wall Mounted Distribution Box , Fire Resistant Indoor Distribution Box

Cable Distribution Box 20-pair Indoor Coin "/" Key Lock Krone "/" LSA Distribution Box

Features:

1) Can be mounted with LSA-PLUS 10-pair distribution or connection module

2) Waterproof box, suitable for outdoor wire distribution

3) Material of house: ABS or ABS + PC fire-resistant

4) Including stainless steel mounting frame, but modules to be ordered separately

5) Including 1 back mount frame(3ways)

6) Compatible with Krone modules

AS-DB30W:

1) Capacity: 30 pairs

2) Size: 210 x 135 x 85mm

Specifications:

1. Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;

2. The modules are compatible with KRONE LSA-PLUS modules.

3. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires

4. Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N

5. Internal diameter of connection wire: 0.4-0.6 mm

6. The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard

7. Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections

8. Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition

9. Intermediate resistance: no more than 3m ohm under standard examination condition

10. Dielectric strength: according to industry standard

11. Specification:10-30 pairs,Waterless,every specification has connection or disconnection types

12. Life: durability 200 cycles
