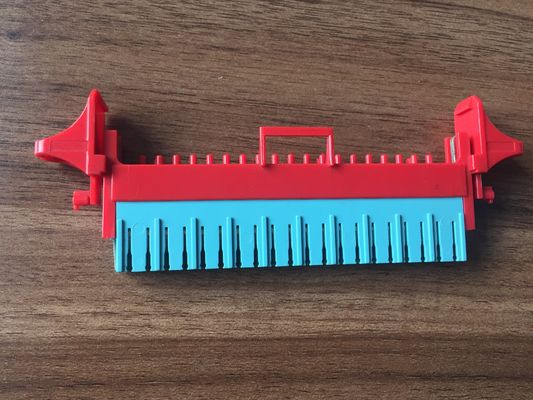

Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm

Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm

  • Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm
  • Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm
  • Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm
  • Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm
Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm
Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: ANSHI
Certification: ISO9001, CNACL, SGS, DAS
Model Number: XL-011STG
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiable
Packaging Details: CARTON:53*24*24CM
Supply Ability: 10000 pcs per week
Contact Now
Detailed Product Description
Product Name: STG Module Material: ABS Or PBT
Protection Level: UL-94V0 Color: Red & Blue
Size: 123.5x21.5x40.5mm Contact Material: Phosphor Bronze
High Light:

krone connection module

,

lsa disconnection module

10 Pairs KRONE LSA STG Connection Module ABS or PBT





Description:



Mechanical Performance:
Plastic Material: Thermoplastic
(Fire resistance UL94-0)
GB/T 5169.7-1985 standard
Contact material: Phosphor bronze
Contact coating: silver plating (20 - 40uinch)
Color: Grey, Red, Blue
Pulling-out force not less than 25N
Life: more than 200 time



Technical characteristic:



  1. Contact resistances                                                         1mΩ
  2. Leading through resistance                                        (20mV/10mA, 50mm cable)
  3. Insulation resistance(500V)                                              >10mΩ
  4. Dielectric strength(50HZ)                                                   5KV



Materials:

  1. Plastic Materials: Thermoplastic
  2. Contact material: Phosphor Bronze
  3. Contact coating: Tin/lead planted



Applications:



High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.







Specifications :



Mechanical Performance Insertion force : 40~75N
Pull Out Force : F≥25N(axial) F≥7.5N(radial)
IDC Life : 200 times(20-26 AWG Solid wire) minimum
Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance :7 mohms maximum

Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s





Why you choose us:

1. 30 years manufactory experience

2.OEM/ODM available

3.Steady product quality

4.Strict quality control

5.Strictly conform to CE,ROHS,UL certificate

6.Quick delivery time



Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm 0

Disconnection Contact:



S2 Disconnection modules use a two piece contact (normally closed), with a convenient disconnection feature. By inserting a disconnect plug into a wire pair, you can temporarily or permanently disconnect the circuit. A test Cord can be inserted into a pair to test each side (look both ways) of the circuit independently. This greayly accelerates fault identification. The centre contact point can also be used for monitoring or over voltage protection.


Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm 1



Connection Contact:



Connection Modules have a one piece contact providing a continuous link between permanent wiring and jumper wiring, giving provision for monitoring access and overvoltage protection.


Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm 2



Switching Contact:



Switching Modules house individual contacts and hence the circuits are disconnected when

idle. By inserting plugs, cords or over voltage protection, the circuits can be connected when

necessary.






Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm 3

Red Blue LSA Plus Module ABS / PBT 10 Pairs KRONE STG Module 123.5 X 21.5 X 40.5mm 4
