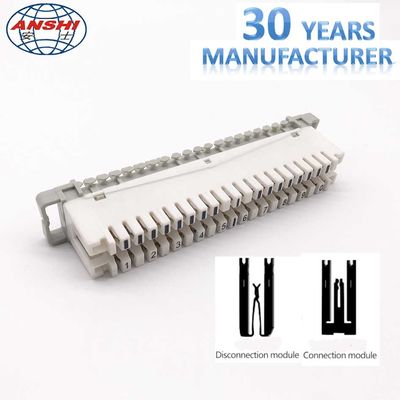

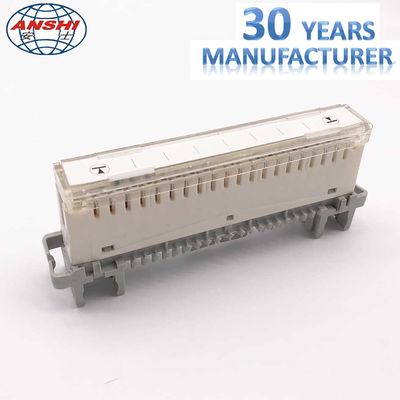

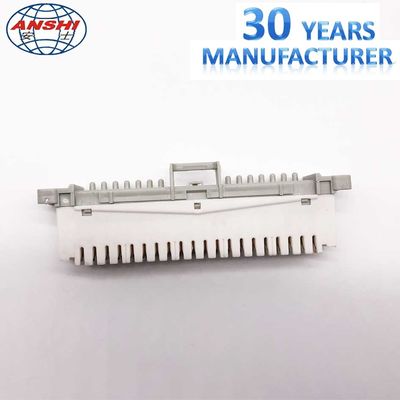

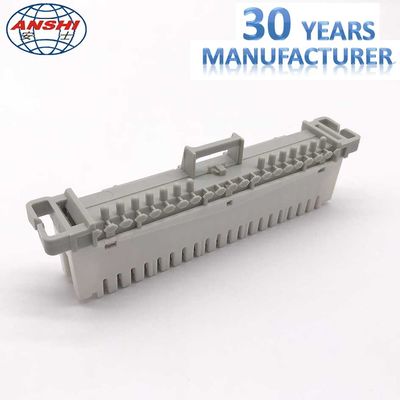

KRONE 237A 10 Pair Disconnection Module with Flame Retardant UL94-V0, Silver-plated Phosphor Bronze Contacts and Modular Design
Product Details
| Product Name | 10 Pair Krone Module | Material | ABS Or PBT |
|---|---|---|---|
| Contact Pin | Silver-plated Phosphor Bronze | Flame Retardance | UL94-V0 Or NOT |
| Application | Telecommunication | Type | Disconnection |
| Highlight | krone connection module,krone disconnection module |
||
You can tick the products you need and communicate with us in the message board.
Product Description
KRONE 237A Module 10 Pair Disconnection Module
Product Overview
The KRONE 237A Module is a 10-pair disconnection module designed for telecommunications and network applications, featuring modular construction and high-performance specifications.
Key Features
- Temperature range: -5°C to 40°C
- Relative humidity: <85% (+30°C)
- Atmospheric pressure: 70-106KPa
- Material: Stainless steel and cuprum with cuprum gold plating over nickel
- Anti-burn performance: PPT (UL94V-0) or anti-burn ABS (UL94V-0)
- Modular design with elegant appearance and high endurance
- Pulling-out force: 25N minimum
- Intermediate resistance between reed terminators: ≤7mΩ
- Intermediate resistance: ≤3mΩ under standard conditions
- Performance impedance: 120Ω (balanced)
- Work rate: 2Mb/s
- Insulation resistance: 1,000MΩ / 500V (DC)
- Resistance to voltage: No breakdown or arc for 1 minute under 1kV (DC)
- Crosstalk ratio: ≥60dB (50kHz - 210MHz)
- Plug-in loss: ≤0.4dB (50kHz - 210MHz)
- Back wave loss: ≥18dB (50kHz - 210MHz)
- Life cycle: 200 cycles
Technical Characteristics
The disconnection type CT module enables testing of electrical parameters on both exchange and distribution sides by inserting a test plug without disconnecting jumper wires or cables from the termination module.
Module housing is constructed with imported GE PBT and ABS (UL94V-0) materials, using only new raw materials rather than recycled content to ensure optimal performance and reliability.
Technical Specifications
| Mechanical Performance | Specifications |
|---|---|
| Insertion Force | 40-75N |
| Pull Out Force | F≥25N (axial), F≥7.5N (radial) |
| IDC Life | 200 times minimum (20-26 AWG solid wire) |
| Copper Conductor Diameter | Φ0.4-Φ0.8mm |
| Environment Characteristics | Specifications |
| Storage Temperature | -40°C to 70°C |
| Operating Temperature | 10°C to 60°C |
| Relative Humidity | 95%, non-condensing |
| Electrical Performance | Specifications |
| Insulation Resistance | 1000 MΩ minimum |
| Contact Resistance | 7 mΩ maximum |
| Dielectric Intensity | AC 1000 Vrms 50Hz/60Hz in 60s |
