OEM ODM Krone Compatible Grounding Module 10 Pair Disconnection Module IDC Telecom MDF Distribution
| Place of Origin | ZHEJIANG, CHINA |
|---|---|
| Brand Name | ANSHI |
| Certification | ISO9001, CNACL, SGS, DAS |
| Model Number | XL-011 |
| Document | XL-011D 10 Pairs Earthing M...le.pdf |
| Minimum Order Quantity | 100 PCS |
| Price | $2.5~$4.5 |
| Packaging Details | CARTON:53*24*24CM |
| Supply Ability | 10000 pcs per week |
Product Details
| Material | ABS Or PBT | Color | Red+Grey |
|---|---|---|---|
| Type | Earth Module | Contact | Phosphor Bronze With Silver Coating |
| Application | Telecommunication | Package | 10 Pieces / Inner Box |
| Highlight | krone connection module,krone disconnection module |
||
Product Description
OEM ODM Krone Compatible Grounding Module 10 Pair Disconnection Module IDC Telecom MDF Distribution
Profile Tube Installation
Product Description

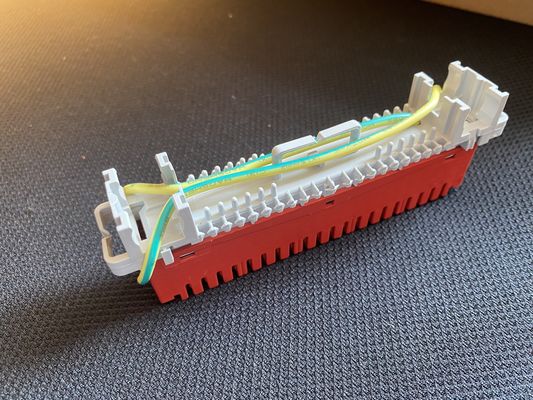

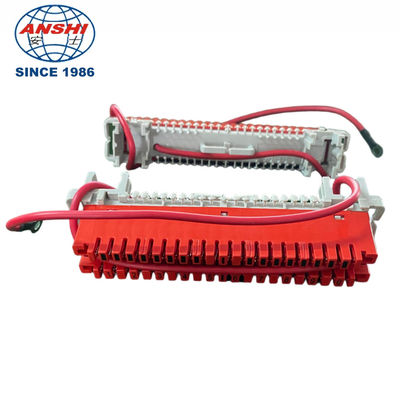

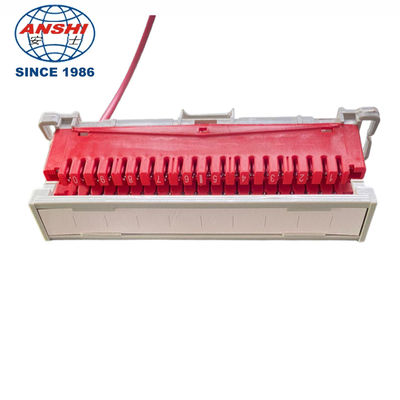

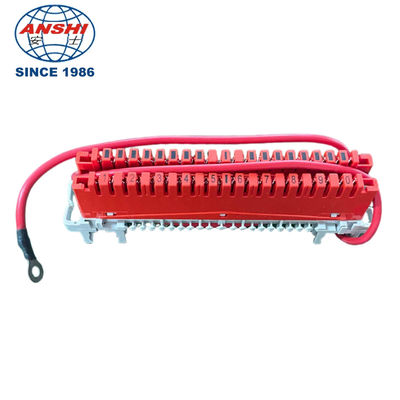

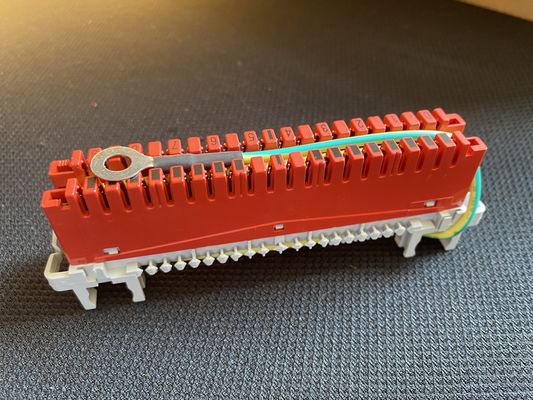

10 Pairs Earth Module (Red) With Grounding Wire
Quick Detail
- Material: PBT or ABS(UL94V-0)
- Contact: Phosphor Bronze
- Can be installed on krone type stainless steel back mount frames
- Available with 50pair block tag and 100pair block tag
- For mounting on MDF, racks, profile bracket, indoor and outdoor distribution box, cross connection cabinets
Specification
- Environment condition: -5-40°C Relative humidity <85% (+30°C) Atmospheric pressure: 70-106KPa
- Compatible with KRONE LSA-PLUS modules with airtight contacting design for reliable connections
- Size (H × W × D): 75mm × 21.5mm × 40.5mm (5 Pairs)
- Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
- Internal diameter of connection wire: 0.4-0.6 mm
- Anti-burn performance: PBT UL94V-0 or anti-burn ABS UL94V-0
- Insulated resistance: ≥1,000M ohm between disjunct connections
- Intermediate resistance between reed terminators: ≤7m ohm
- Intermediate resistance: ≤3m ohm under standard conditions
- Dielectric strength: meets industry standard
- Type: disconnection type
- Life: durability 200 cycles
Applications
High speed LAN and WAN systems, used to connect Telecom and Data wires with punch down tools.
Technical Specifications
| Mechanical Performance | |
|---|---|
| Insertion force | 40~75N |
| Pull Out Force | F≥25N(axial) F≥7.5N(radial) |
| IDC Life | 200 times(20-26 AWG Solid wire) minimum |
| Copper Conductor Diameter | Φ0.4~Φ0.8(mm) |
| Environment Characteristic | |
| Storage Temperature | -40 to 70°C |
| Operating Temperature | -10 to 60°C |
| Relative Humidity | 95%, non-condensing |
| Electrical Performance | |
| Insulation resistance | 1000 Mohms minimum |
| Contact resistance | 7 mohms maximum |
| Dielectric intensity | AC 1000 Vrms 50Hz or 60Hz in 60s |
Have Back Mount Type For Choice
Package
Why Choose Us
- 40 years manufacturing experience
- OEM/ODM available
- Steady product quality
- Strict quality control
- Complies with CE, ROHS, UL certificates
- Quick delivery time
