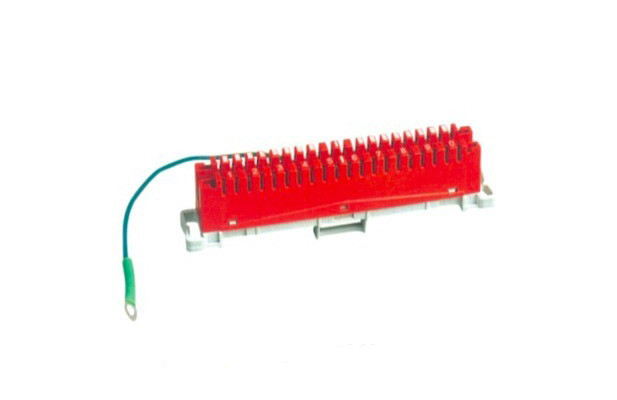

ABS / PBT KRONE LSA Plus Module 10 Pairs Earth Module For Telecommunication

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, CNACL, SGS, DAS
Model Number XL-011
Minimum Order Quantity 1000 pcs
Price Negotiable
Packaging Details CARTON:53*24*24CM
Supply Ability 10000 pcs per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material ABS Or PBT Color White/Grey/Color
Type Disconnection Contact Phosphor Bronze With Silver Coating
Application Telecommunication Protection Level UL-94VO

krone connection module


krone disconnection module

Leave a Message
Product Description

10 Pairs KRONE LSA Disconnection Module with Color Label ABS or PBT


Quick Detail:


1. Material: PBT or ABS(UL94V-0)

2. Contact: Phosphor Bronze

3. Silver Plating: 0.5 um1.25 um5 um

4. Can be installed on krone type stainless steel back mount frames

5. Available with 50pair block tag and 100pair block tag.

6. for mounting on MDF,racks,profile bracket,indoor and outdoor distribution box,cross connection cabinets.




1. Environment condition: -5-40 degree Celsius Relative humidity <85% (+30 degree Celsius)Atmospheric pressure: 70-106KPa
2. The modules are compatible with KRONE LSA-PLUS modules.The design ofcontacts basing on the principle of airtight contacting makes acompletely reliable connection between the contacts and wires
3. Size (H x W x D): 75mm x 21.5mm x 40.5mm (5 Pairs)
4. ulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
5. Internal diameter of connection wire: 0.4-0.6 mm
6. The performance of anti-burn: PBT UL94V-0or anti-burn ABS UL94V-0,Combustibility achieved GB/T 5169.7-1985 standard
7. Insulated resistance: under standard atmospheric pressure ,Insulatedresistance no less than 1,000M ohm between the two disjunct connections
8. Intermediate resistance between the reed terminators: no more than 7mohm between intermediate reed under the standard examination condition
9. Intermediate resistance: no more than 3m ohm under standard examination condition
10. Dielectric strength: according to industry standard
12 . Type: disconnection type
13. Life: durability 200 cycles




High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.



Specifications :


Mechanical Performance Insertion force : 40~75N
Pull Out Force : F≥25N(axial) F≥7.5N(radial)
IDC Life : 200 times(20-26 AWG Solid wire) minimum
Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance :7 mohms maximum

Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s



Why you choose us:

1. 30 years manufactory experience

2. OEM/ODM available

3. Steady product quality

4. Strict quality control

5. Strictly conform to CE,ROHS,UL certificate

6. Quick delivery time


ABS / PBT KRONE LSA Plus Module 10 Pairs Earth Module For Telecommunication 0

Disconnection Contact:


S2 Disconnection modules use a two piece contact (normally closed), with a convenient disconnection feature. By inserting a disconnect plug into a wire pair, you can temporarily or permanently disconnect the circuit. A test Cord can be inserted into a pair to test each side (look both ways) of the circuit independently. This greayly accelerates fault identification. The centre contact point can also be used for monitoring or over voltage protection.

ABS / PBT KRONE LSA Plus Module 10 Pairs Earth Module For Telecommunication 1


Connection Contact:


Connection Modules have a one piece contact providing a continuous link between permanent wiring and jumper wiring, giving provision for monitoring access and overvoltage protection.

ABS / PBT KRONE LSA Plus Module 10 Pairs Earth Module For Telecommunication 2


Switching Contact:


Switching Modules house individual contacts and hence the circuits are disconnected when

idle. By inserting plugs, cords or over voltage protection, the circuits can be connected when
