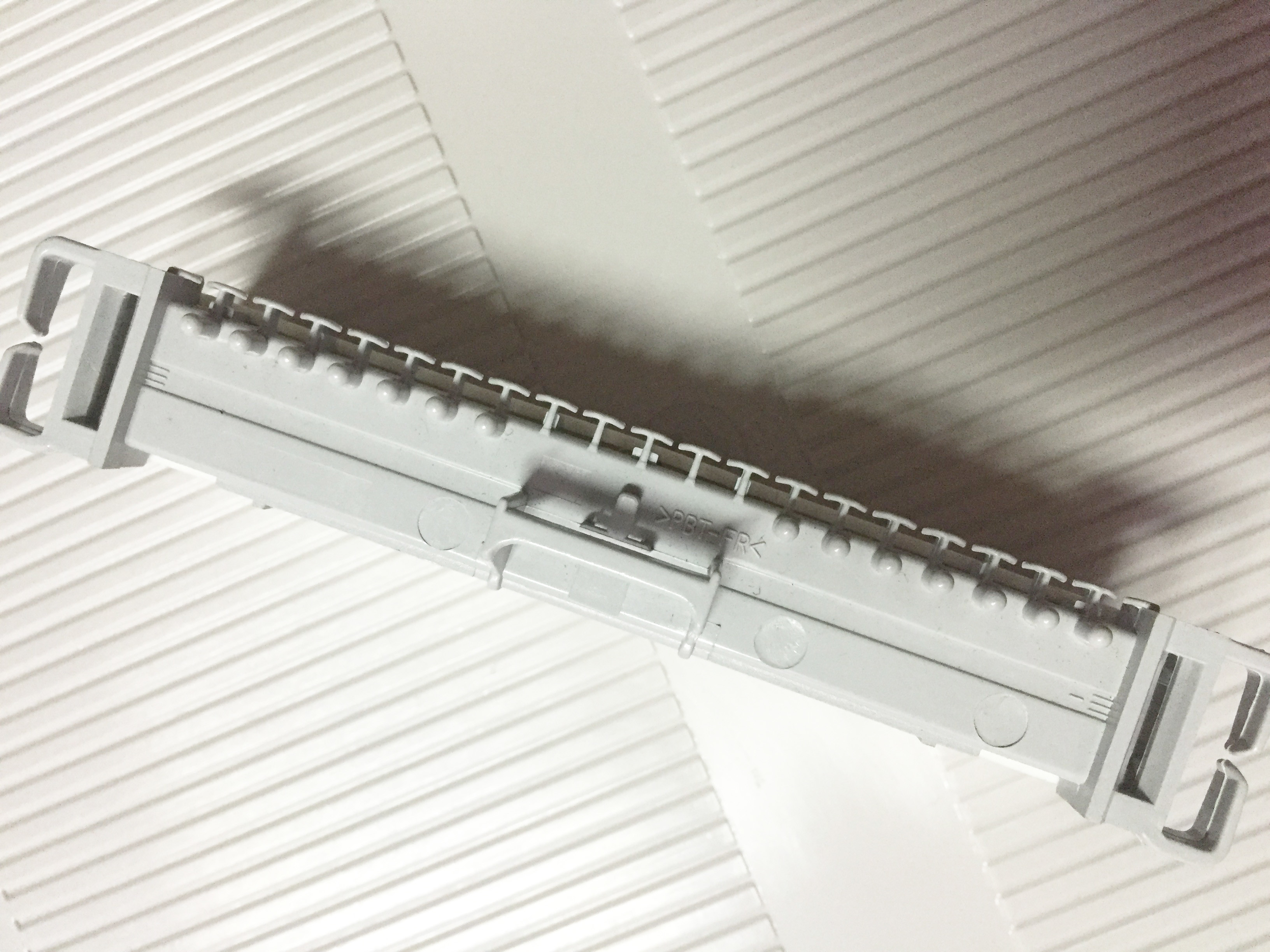

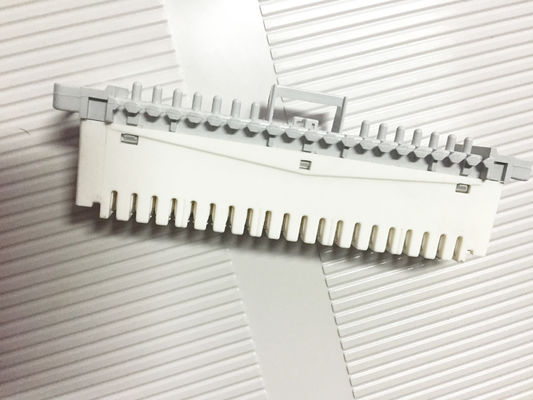

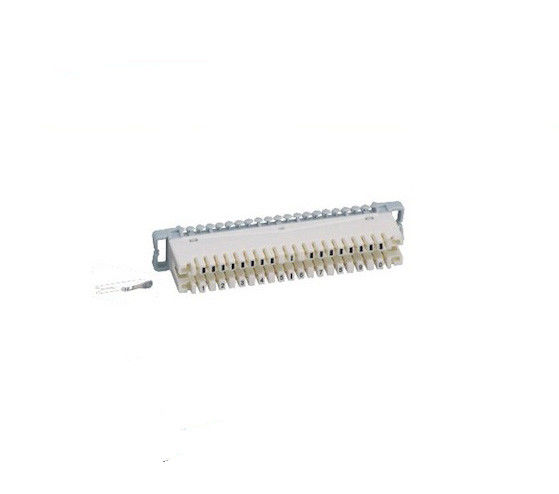

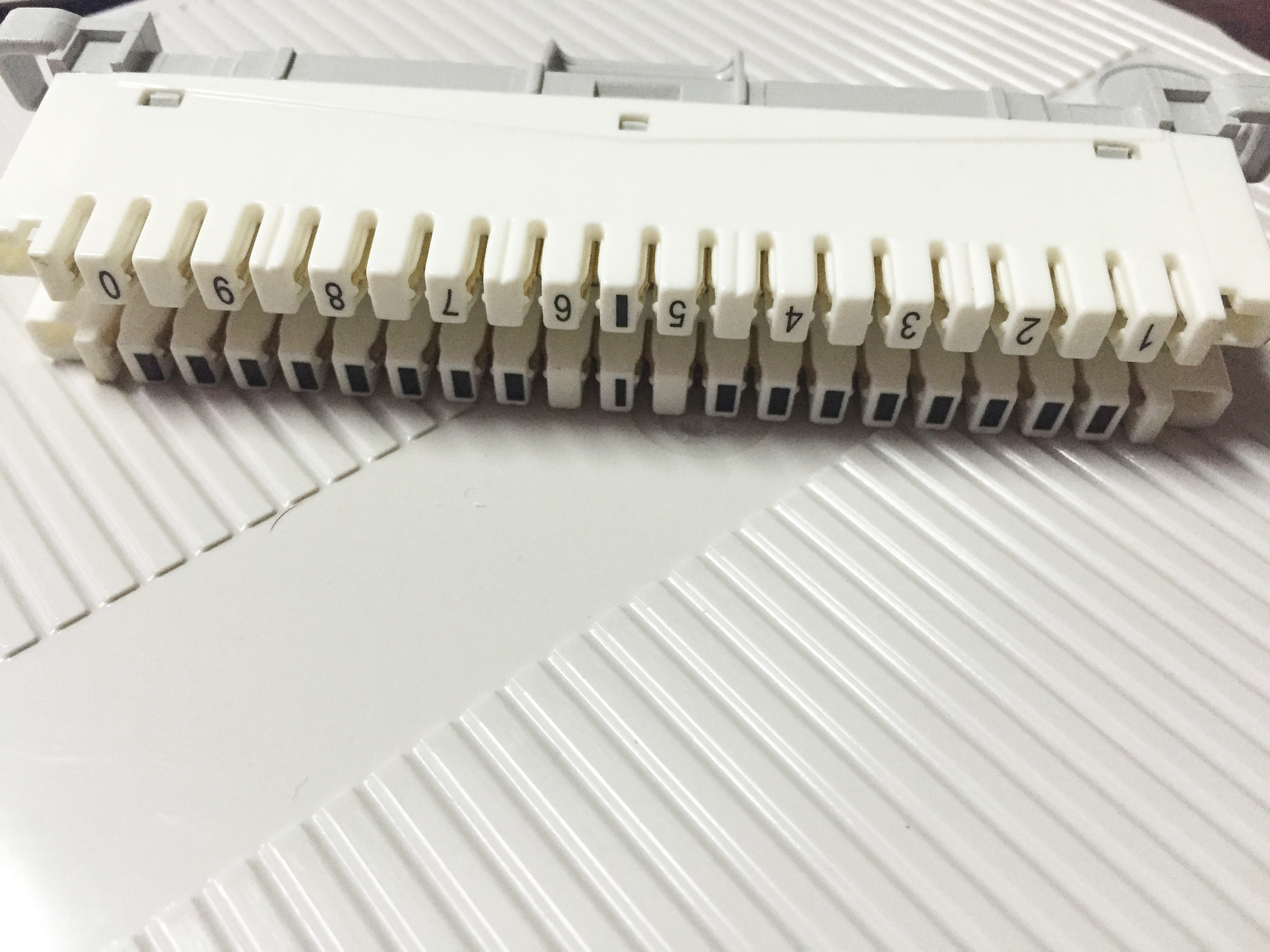

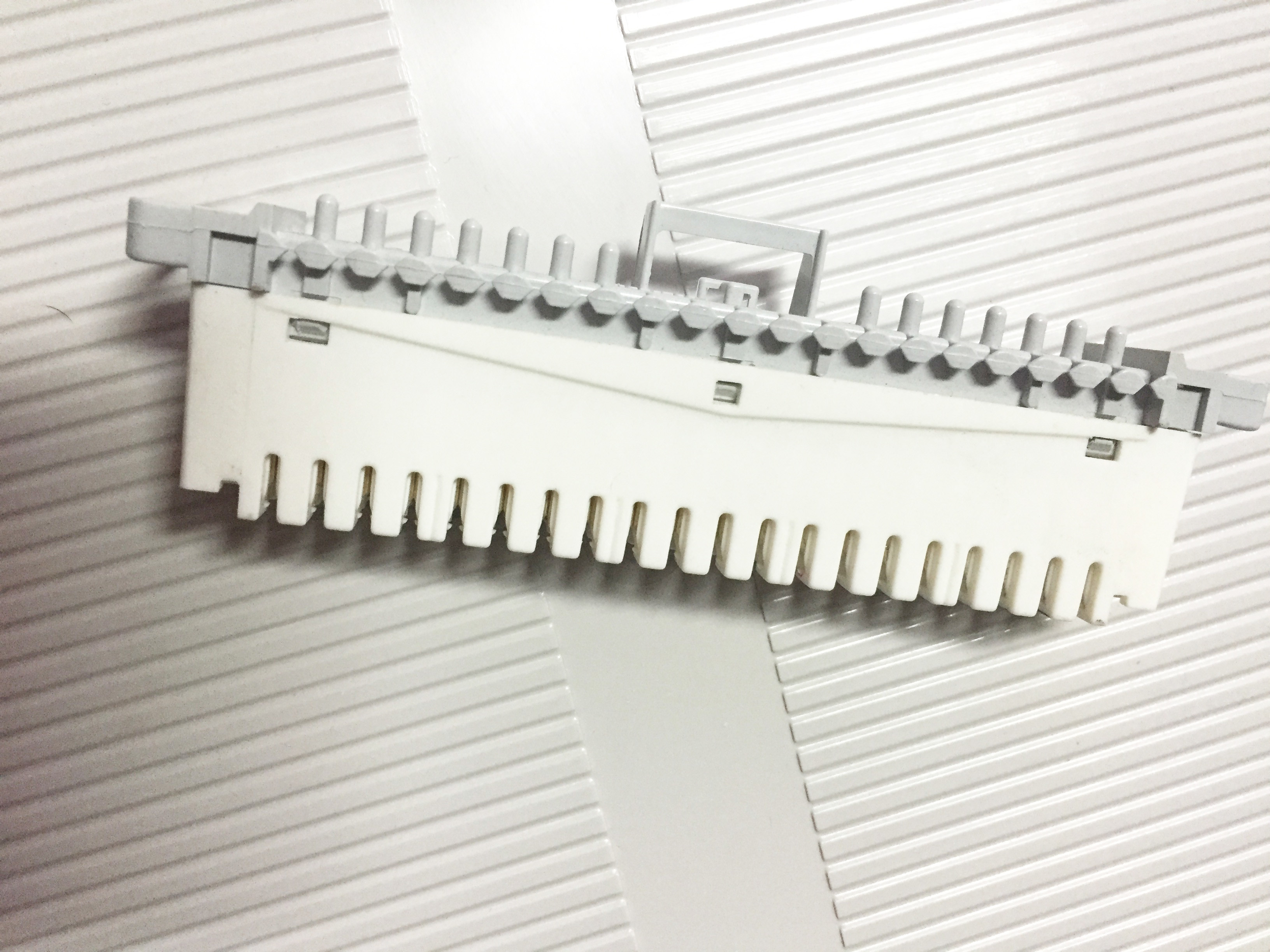

Telecommunication Krone 10 Pair Module , White / Ivory Krone Connection Module

  • Telecommunication Krone 10 Pair Module , White / Ivory Krone Connection Module
  • Telecommunication Krone 10 Pair Module , White / Ivory Krone Connection Module
  • Telecommunication Krone 10 Pair Module , White / Ivory Krone Connection Module
  • Telecommunication Krone 10 Pair Module , White / Ivory Krone Connection Module
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, CNACL, SGS, DAS
Model Number XL-013
Minimum Order Quantity 1000 pcs
Price Negotiable
Packaging Details 10 pcs/box; 200 pcs/carton or 250 pcs/carton
Supply Ability 10000 pcs per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS (UL94V-0) Or PBT Color White / Ivory
Type Connection Krone Module Size 124*21*40mm
Application Telecommunication Contact Sliver Plating & Phosphor Bronze
Highlight

krone connection module

,

lsa disconnection module
Leave a Message
Product Description

Features:


1) Temperature: -5 - 40°C
2) Relative humidity: <85% (+30°C)
3) Atmospheric pressure: 70 106KPa
4) Material: stainless steel and cuprum, cuprum gold plating over nickel
5) Performance of anti-burn: PPT (UL94V-0) or anti-burn ABS (UL94V-0),
combustibility of GB/T 5169.7-1985 standard
6) Construction features: adopts modularization design, elegant
outlook and high endurance
7) Pulling-out force: tin bronze and silver plating (20 - 40uinch), pulling-out
force not less than 25N
8) Intermediate resistance between reed terminators: no more than 7m
(ohm between intermediate reeds under standard examination
condition)
9) Intermediate resistance: no more than 3m ohm under standard
examination condition
10) Performance impedance: 120Ω (balance)
11) Work rate: 2mb/s
12) Insulation resistance: 1,000mΩ / 500V (DC)
13) Resistance to voltage: no breakdown or arc for 1 minute under 1kV (DC)
14) Crosstalk ratio: ≥60dB (50kHz - 210MHz)
15) Plug-in loss: ≤0.4dB (50kHz - 210MHz)
16) Back wave loss: ≥18dB (50kHz - 210MHz)
17) Life: 200 cycles



Specification:



Mechanical Performance Insertion force : 40~75N
Pull Out Force : F≥25N(axial) F≥7.5N(radial)
IDC Life : 200 times(20-26 AWG Solid wire) minimum
Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance:7 mohms maximum

Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s
