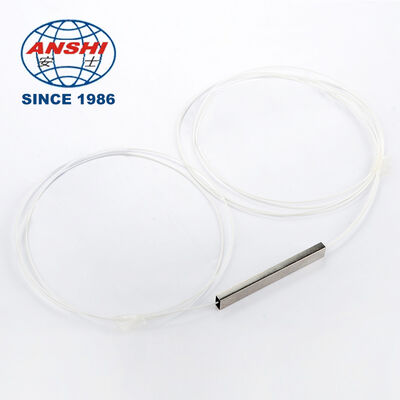

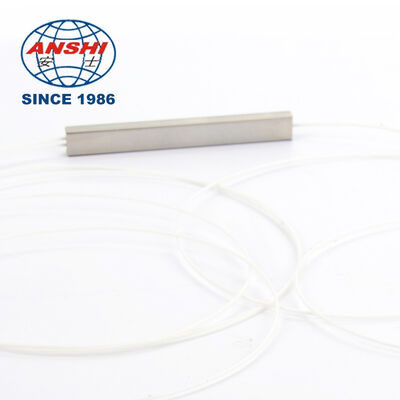

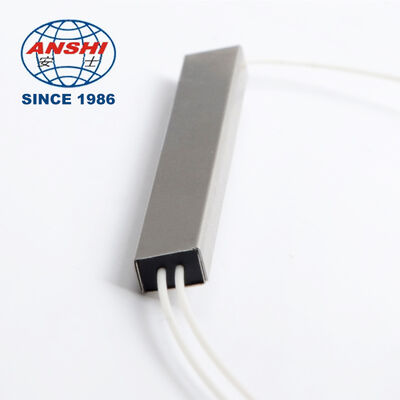

1x2 Mini Steel Tube PLC Splitter, 0.9mm G657A1 White Fiber, Customizable 0.75m-2m Pigtail FTTH Optical Splitter

  • 1x2 Mini Steel Tube PLC Splitter, 0.9mm G657A1 White Fiber, Customizable 0.75m-2m Pigtail FTTH Optical Splitter
  • 1x2 Mini Steel Tube PLC Splitter, 0.9mm G657A1 White Fiber, Customizable 0.75m-2m Pigtail FTTH Optical Splitter
  • 1x2 Mini Steel Tube PLC Splitter, 0.9mm G657A1 White Fiber, Customizable 0.75m-2m Pigtail FTTH Optical Splitter
Place of Origin China
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ODF-1X2FLP
Minimum Order Quantity Can Discuss
Price Negotiable
Delivery Time 10000pcs/week
Product Details
Type PLC Splitter Connector Type Without
Application Scenario Fiber Optic Distribution Box Network Type Wired Network, Wiegand, FTTH
Model PLC 1:2 Place Of Origin Zhejiang, China
Product Name PLC Fiber Optic Splitter Total Length 1.6-2m
Custom Connector SC/FC/LC/ST Cable Jacket Diameter 0.9mm
Leave a Message
Product Description
1x2 Mini Steel Tube PLC Splitter, 0.9mm G657A1 White Fiber, Customizable 0.75m-2m Pigtail FTTH Optical Splitter
  • 1. Utilizes advanced PLC (Planar Lightwave Circuit) chips, ensuring excellent channel uniformity and uniform optical power distribution.
  • 2. Ultra-low insertion loss and low polarization mode delay (PDL) minimize signal attenuation and enable stable long-distance transmission.
  • 3. Wide operating wavelength range of 1260–1650 nm, compatible with GPON, EPON, and CATV systems.
  • 4. Multiple housing options available: mini-tube, ABS module, LGX tape, and 1U rack-mount
  • 5. Optional SC/LC/FC/ST connectors with UPC/APC end faces; plug-and-play design reduces installation labor
  • 6. Stable performance across a wide temperature range with minimal low-temperature drift for indoor and outdoor projects
  • 7. Integrated sealed packaging, resistant to vibration and tensile force, with built-in aramid yarn to prevent fiber breakage
  • 8. Complete range of configurations: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64; supports custom fiber lengths and OEM branding
  • 9. 100% factory optical testing, CE & RoHS certified, suitable for global telecommunications projects.
Type PLC Splitter
Connector Type Without
Application Scenario Fiber Optic Distribution Box
Network Type Wired Network, Wiegand, FTTH
Model PLC 1:2
Place of Origin Zhejiang, China
Product Name PLC Fiber Optic Splitter
Total Length 1.6-2m
Custom Connector SC/FC/LC/ST
Cable Jacket Diameter 0.9mm
1 x N PLC Optic Splitter Specification
OperatingWavelength (um) 1260~1650
Port Configuration 1x2,1x4,1x8,1x16,1x32
Insertion Loss (dB) 3.6,7.5,10.2,13.5,16.9
Loss Uniformity (dB) 0.4,0.6,0.8,1.2,1.5
Polarization Dependent Loss (dB) 0.2,0.2,0.2,0.25,0.3
Wavelength Dependent Loss (dB) 0.3,0.3,0.3,0.5,0.5
Temperature Dependent Loss(-40~85)(dB) 0.4,0.4,0.4,0.5,0.5
Returm Loss (dB) 55/50
Operating Temperature(°C) -40~+85
Directivity (dB) ≥55
Storage Temperature(°C) -40~+85
1x2 Mini Steel Tube PLC Splitter, 0.9mm G657A1 White Fiber, Customizable 0.75m-2m Pigtail FTTH Optical Splitter
1x2 Mini Steel Tube PLC Splitter, 0.9mm G657A1 White Fiber, Customizable 0.75m-2m Pigtail FTTH Optical Splitter
