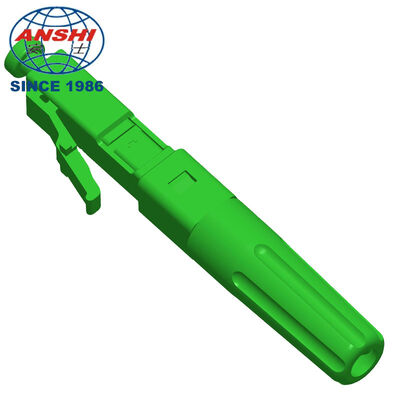

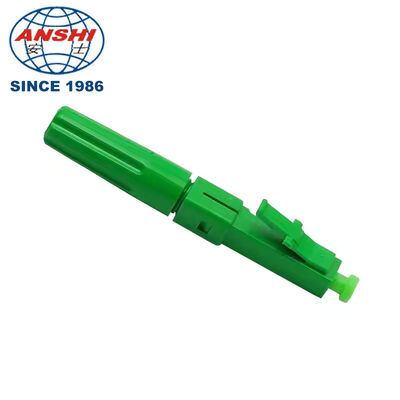

FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4

  • FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
  • FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
  • FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
  • FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-ODF-KJT-02-SC/UPC
Minimum Order Quantity Negotiable
Price Negotiable
Payment Terms D/A,D/P,T/T,L/C,Western Union,
Supply Ability 500,000pcs/week
Product Details
Type LC Mode SM MM
Simplex/Duplex Simplex Fastener Type PUSH-PULL
Cable Diameter 0.9/2.0/3.0mm Model Number LC APC
Packaging Carton Description LC Fiber Fast Connector
Mfg. Date Code LC Fiber Fast Connector Housing Material Plastic
Ingress Protection CAP Application FTTH FTTB FTTX Solution
Insert Loss ≤0.3dB Return Loss ≥55dB For APC, ≥50dB For UPC
Highlight

FTTH LC APC fiber optic connector

,

mechanical splicer metal V-groove

,

single mode multimode OM3 OM4 connector
Leave a Message
Product Description
Product Description
Feature
1). Low insertion loss, high return loss;

2). Reliable optical performance;

3). Good connection stability;

4). Convenient for field installation;

5). Installs fast, Operates easy ;

6). Low cost & Reliability

Application

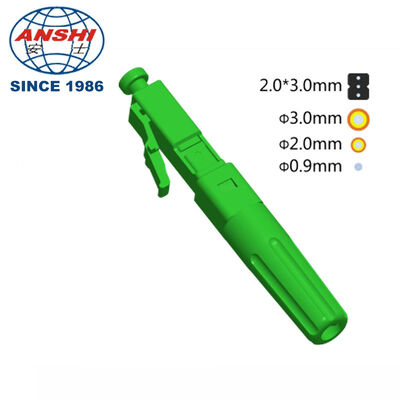

◆Cable:3.0*2.0mm, 2.0*1.6mm Drop Cable, Ф 3.0mm, Ф 2.0mm, Ф 0.9mm Round Cable

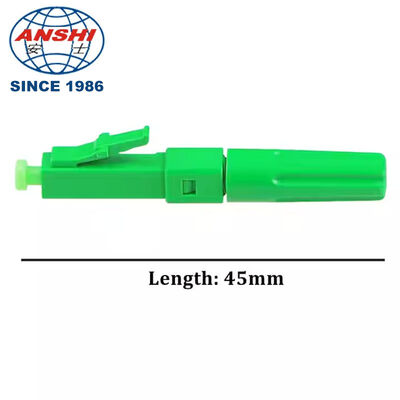

◆Product Length: 45mm
◆Fiber: SM/ G657 Bending Insensitive; MM OM3, OM4
◆Factory-installed fiber stub, no epoxy and polishing required, inside with index-matching gel
◆Operating Temperature: -40℃～+80℃
◆Application: FTTH

Technical Parameters
Item
Parameter
Model Number
LC UPC/APC
Main Material
Plastic
Success Rate
>98%
Applicable cable
2.0*3.0mm & 2.0*1.6mm flat drop cable & 2.0mm & 3.0mm & 0.9mm cable
Reusable times
≥5 times
Insert loss
≤0.3dB
Return Loss
≥50dB for UPC, ≥55dB for APC
Tensile strength
>30N/2min
Application
FTTX FTTH Network
No. of Fiber
1
Useful life
>=10 years
Temperature
-40~+85°C
FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
