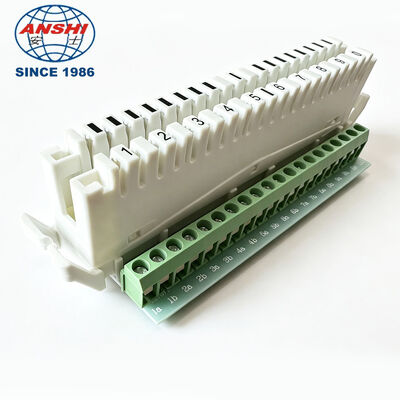

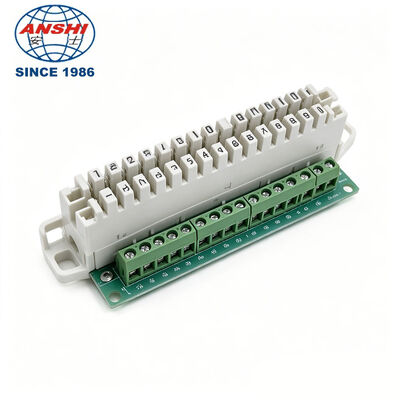

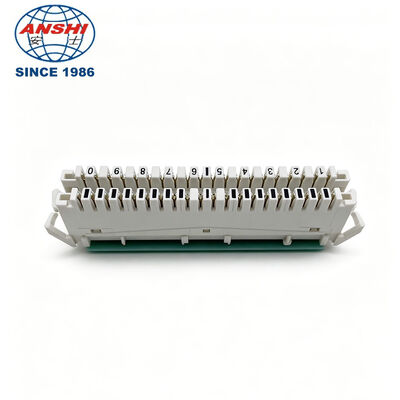

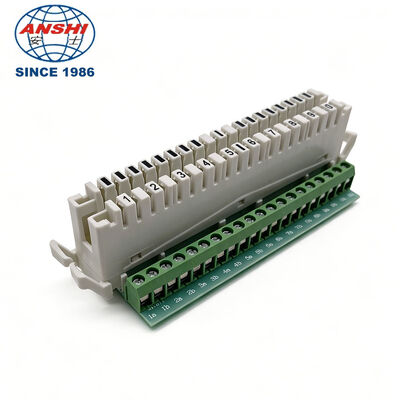

20 Pole Detachable Modules with Circuit Boards 10 Pairs Disconnection or Switching Electronic Circuit Detachable Module Assembly

  • 20 Pole Detachable Modules with Circuit Boards 10 Pairs Disconnection or Switching Electronic Circuit Detachable Module Assembly
  • 20 Pole Detachable Modules with Circuit Boards 10 Pairs Disconnection or Switching Electronic Circuit Detachable Module Assembly
  • 20 Pole Detachable Modules with Circuit Boards 10 Pairs Disconnection or Switching Electronic Circuit Detachable Module Assembly
  • 20 Pole Detachable Modules with Circuit Boards 10 Pairs Disconnection or Switching Electronic Circuit Detachable Module Assembly
  • 20 Pole Detachable Modules with Circuit Boards 10 Pairs Disconnection or Switching Electronic Circuit Detachable Module Assembly
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, CNACL, SGS, DAS
Model Number XL-011L
Document 10 pairs pcb type module.pdf
Minimum Order Quantity 50 pcs
Price $5-$9
Packaging Details CARTON:53*24*24CM
Payment Terms T/T
Supply Ability 10000 pcs per week
Product Details
Material ABS Or PBT Color White/Grey/Green
Contact Iron, Brass Or Bronze Type PCB Type
Installation Back&profile Mount Application Cabling
Highlight

20 pole detachable electronic circuit module

,

LSA Plus detachable switching module

,

10 pair disconnection circuit board module
Leave a Message
Product Description
XL-011L, can assemble on PCB 10 Pairs LSA PLUS Krone Disconnection Switching Module PCB Type
Product Description
PCB Type Specifications
  • LSA-PLUS disconnection module 2/10
  • Features PCB and screw block
  • Internal wire diameter: 0.4mm-0.65mm
  • Color: Grey base with white body or White or Red
Material Composition
  • Plastic Parts: PBT-V0 UL94 or ABS
  • Contacts Pin: 0.5mm Phosphor bronze with silver-plated
  • Silver-plated: as per client request
Technical Specifications
Mechanical Performance
Insertion force 40~75N
Pull Out Force F≥25N(axial) F≥7.5N(radial)
IDC Life 200 times (20-26 AWG Solid wire) minimum
Copper Conductor Diameter Φ0.4~Φ0.8(mm)
Environment Characteristic
Storage Temperature -40 to 70°C
Operating Temperature -10 to 60°C
Relative Humidity 95%, non-condensing
Electrical Performance
Insulation resistance 1000 Mohms minimum
Contact resistance 7 mohms maximum
Dielectric intensity AC 1000 Vrms 50Hz or 60Hz in 60s

20 Pole Detachable Modules with Circuit Boards 10 Pairs Disconnection or Switching Electronic Circuit Detachable Module Assembly 0

20 Pole Detachable Modules with Circuit Boards 10 Pairs Disconnection or Switching Electronic Circuit Detachable Module Assembly 1
