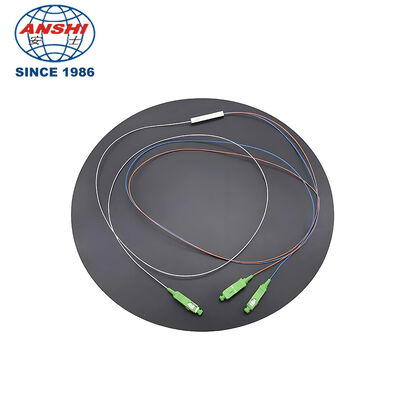

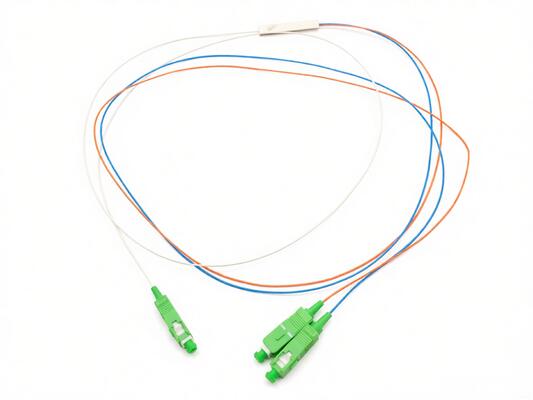

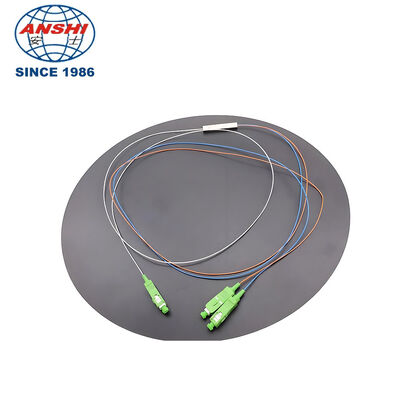

1x2 SC/APC PLC Fiber Optic Splitter for FTTH Networks with Compact Design

  • 1x2 SC/APC PLC Fiber Optic Splitter for FTTH Networks with Compact Design
  • 1x2 SC/APC PLC Fiber Optic Splitter for FTTH Networks with Compact Design
  • 1x2 SC/APC PLC Fiber Optic Splitter for FTTH Networks with Compact Design
Place of Origin China
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ODF-1X16FLP
Minimum Order Quantity 10 Pieces
Price $2~$5
Delivery Time 10000pcs/week
Payment Terms L/C,D/P,D/A,MoneyGram,Western Union,T/T
Supply Ability 2000 pcs/day
Product Details
Name 1X2 Optic Plc Splitter Connector Type SC/APC
Wavelength 1310nm/1490nm/ 1550nm Application CATV/FTTH/LAN/PON
Leave a Message
Product Description
ANSHI Fiber Optic Splitter SC/APC 1x2 PLC Optical Fiber Splitter
Product Overview

1x2 SC/APC PLC FTTH Fiber Optic Splitter - Single Mode Optical Coupler. This PLC splitter is a quartz substrate integrated waveguide optical power distribution device featuring compact size, broad working wavelength range, high reliability, and excellent light uniformity. It is specifically designed for passive optical networks (EPON, BPON, GPON) to connect local and terminal equipment while distributing optical signals.

Construction & Design

The bare PLC splitter consists of a PLC splitter chip and input/output optical fiber arrays housed in a square metal tube, available with 0.9mm or 250μm bare fiber outputs. These fibers can be welded or processed with various types of optical fiber connectors.

Technical Specifications
Parameters 1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability (-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Device Dimension (mm) 40*4*4 40*4*4 40*4*4 50*4*4 50*7*4 60*12*4
Key Features
  • Continuous coverage with different fibers
  • Full fiber core structure
  • Reusable design
  • Optional fiber types
  • Low additional loss
  • Minimal insertion loss
  • Multiple configuration options (2*2, 1*2, 1*4, up to 1*128)
Applications
  • Optical Signal Distribution
  • Data Communications
  • LAN and CATV Systems
  • FTTX Deployment
  • FTTH Network Infrastructure
  • Passive Optical Networks (PON)
  • Measuring Systems and Laser Systems
  • DWDM and CWDM Systems
1x2 SC/APC PLC Fiber Optic Splitter for FTTH Networks with Compact Design 0
1x2 SC/APC PLC Fiber Optic Splitter for FTTH Networks with Compact Design 1
