White Red Telephone Cable 2 Core 0.5mm PE Insulated Wire
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Telephone Cable 2 Core | Material | PE + Bronze |
|---|---|---|---|
| Color | White+Red / White+Blue / White+Black / White+ Orange / White + Green | Type | 2 Core |
| Size | 0.4/0.5/0.6mm | Application | Telephone Systems. MDF |
| Highlight | white red telephone cable,2 core PE insulated wire,0.5mm telephone wire |
||
Product Description

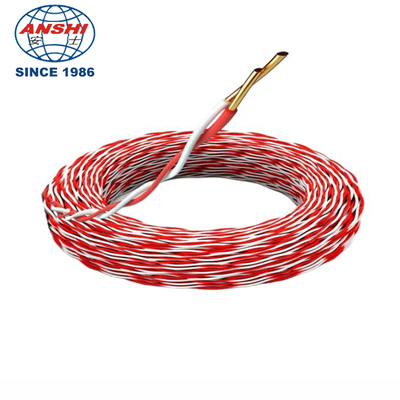

Indoor White Red Telephone Cable 2 Core 0.5mm PE Insulated Jumper Wire
Product Specifications
| Attribute | Value |
|---|---|
| Product | Telephone Cable 2 Core |
| Material | PE + Bronze |
| Color | White+Red / White+Blue / White+Black / White+Orange / White+Green |
| Type | 2 Core |
| Size | 0.4/0.5/0.6mm |
| Application | Telephone Systems, MDF |
Product Description

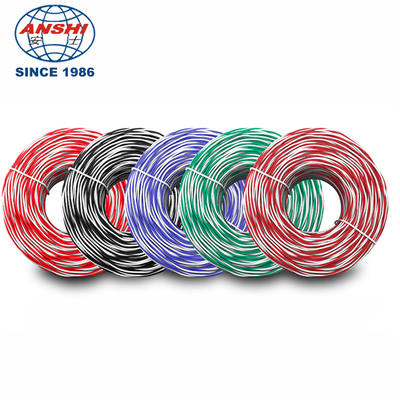

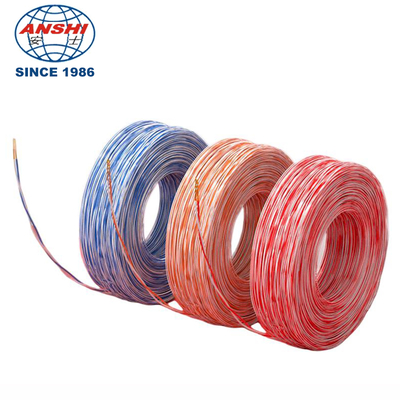

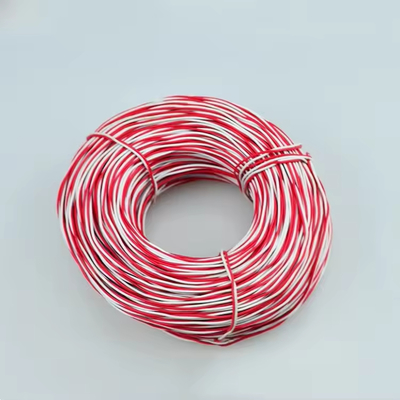

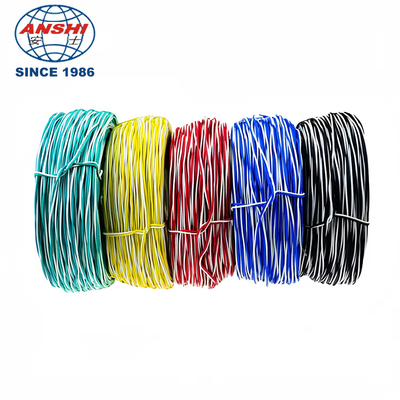

This indoor telephone cable features PE insulation and comes in various color combinations for easy identification. Available in multiple lengths (100-1000 meters) with reel packaging for 1000 meter options.
The jumper wires are designed for interconnection between terminal blocks at main distribution frames (MDF), cross connection cabinets (CCP), and distribution frames or boxes.
Construction Details

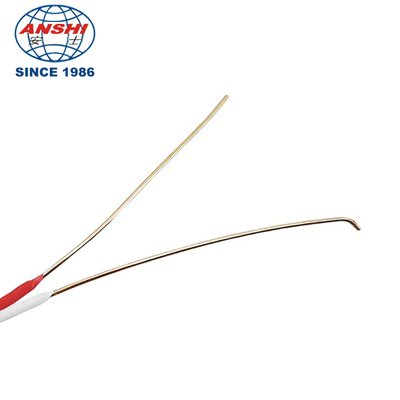

- Conductors: Solid annealed tinned copper 0.4/0.5/0.6/0.8mm as per IEC 60228 Class 1
- Insulation: PE material

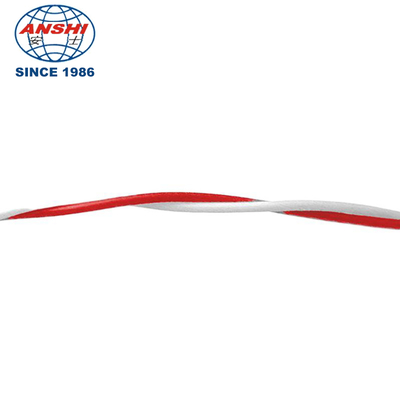

- Twisted Pairs: Insulated conductors are twisted into pairs with varying lays to minimize crosstalk
Electrical & Mechanical Properties
| NOMINAL CONDUCTOR DIAMETER (MM) | 0.5 | 0.6 | 0.8 |
|---|---|---|---|
| CONDUCTOR SIZE (MM²) | 0.196 | 0.283 | 0.5 |
| MAXIMUM CONDUCTOR RESISTANCE @20°C (Ω/KM) | 98 | 66 | 35 |
| MINIMUM INSULATION RESISTANCE @500V DC (MΩ.KM) | 50 | 50 | 50 |
| NOMINAL INSULATION THICKNESS (MM) | 0.225 | 0.225 | 0.275 |
| NOMINAL INSULATED CONDUCTOR DIAMETER (MM) | 0.95 | 1.05 | 1.35 |
Color Code
Standard color code is per IEC 60189-1
Dimensions And Weight
| CABLE CODE | NUMBER OF WIRES | NOMINAL INSULATION THICKNESS (MM) | MAXIMUM OVERALL DIAMETER (MM) | NOMINAL WEIGHT (KG/KM) |
|---|---|---|---|---|
| 0.5mm Conductor, 0.95mm Insulated Wire | ||||
| Y-1W05 | 1 | 0.225 | 1.25 | 2.5 |
| Y-2W05 | 2 | 0.225 | 1.95 | 5.0 |
| Y-3W05 | 3 | 0.225 | 2.25 | 7.5 |
| Y-4W05 | 4 | 0.225 | 2.40 | 10.0 |
| Y-5W05 | 5 | 0.225 | 2.60 | 12.5 |
| 0.6mm Conductor, 1.05mm Insulated Wire | ||||
| Y-1W06 | 1 | 0.225 | 1.45 | 3.0 |
| Y-2W06 | 2 | 0.225 | 2.15 | 6.0 |
| Y-3W06 | 3 | 0.225 | 3.0 | 9.0 |
| Y-4W06 | 4 | 0.225 | 3.4 | 12.0 |
| 0.8mm Conductor, 1.35mm Insulated Wire | ||||
| Y-1W08 | 1 | 0.275 | 2.05 | 5.8 |
| Y-2W08 | 2 | 0.275 | 2.75 | 11.6 |
| Y-3W08 | 3 | 0.275 | 3.7 | 17.4 |
| Y-4W08 | 4 | 0.275 | 4.2 | 23.2 |
Mechanical and Thermal Properties
- Temperature range during operation (fixed state): -30°C to +70°C
- Temperature range during installation (mobile state): -20°C to +50°C
- Minimum bending radius: 7.5 x Overall Diameter
