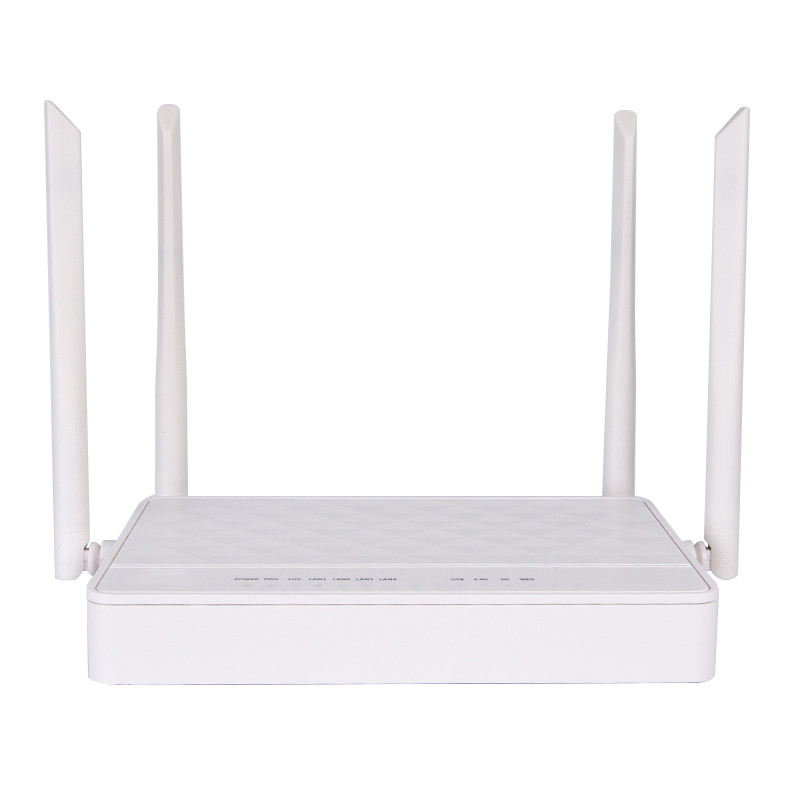

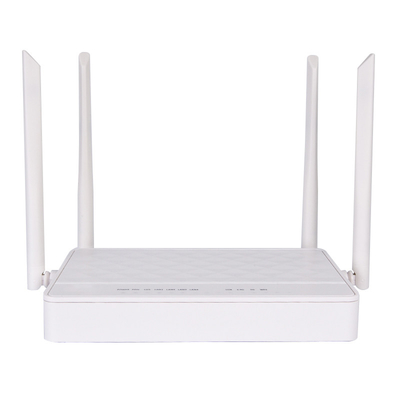

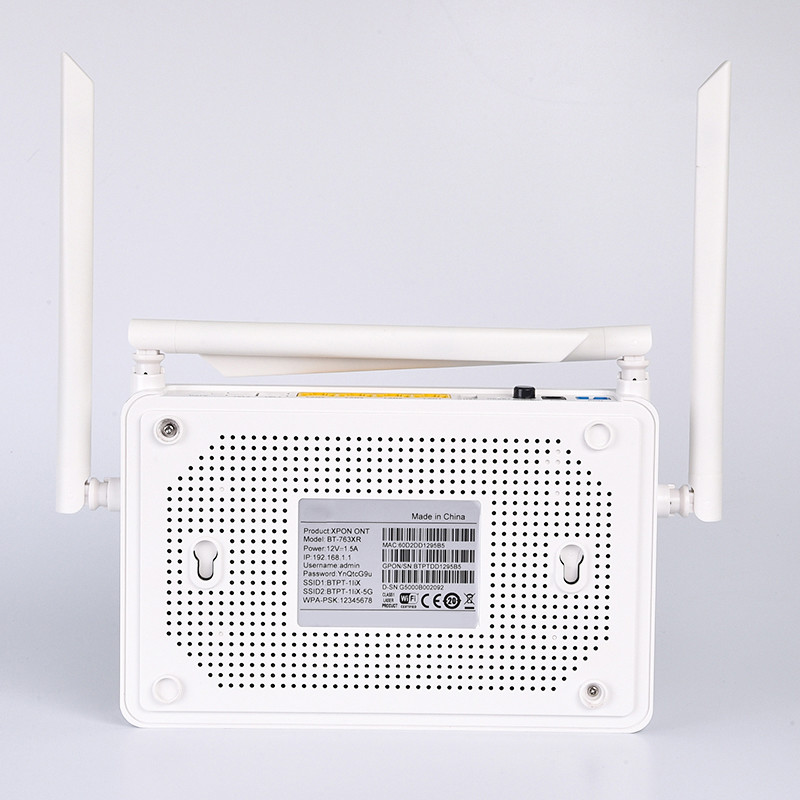

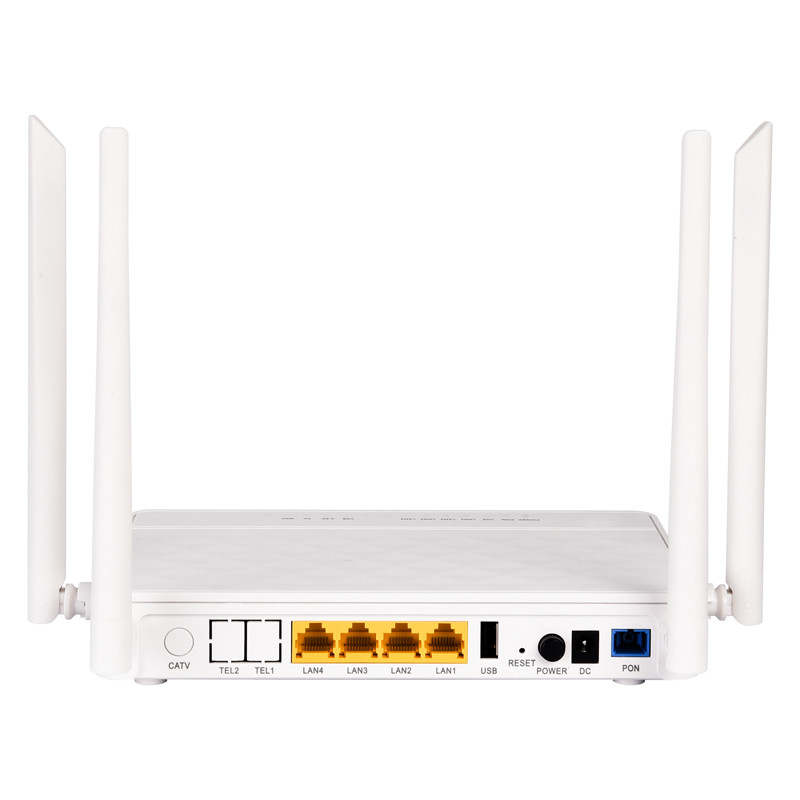

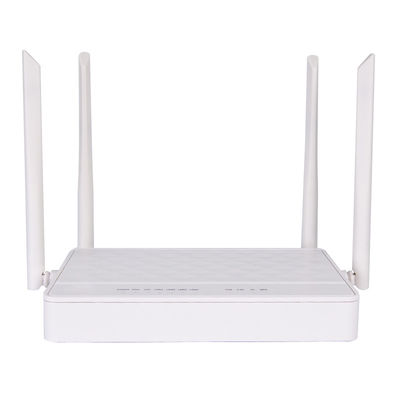

AS-ONU39 4GE+2.4G&5.8G WIFI XPON ONU

  • AS-ONU39 4GE+2.4G&5.8G WIFI XPON ONU
  • AS-ONU39 4GE+2.4G&5.8G WIFI XPON ONU
  • AS-ONU39 4GE+2.4G&5.8G WIFI XPON ONU
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ONU39
Minimum Order Quantity Negotiable
Price Negotiable

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 4GE+WIFI 2.4G&5.8G XPON ONU Optical Signal Access 1*GPON/EPON
Size 205*140*30mm Indicator Light POWER/PON/LOS/LAN1/LAN2/LAN3/LAN4/ USB/2.4G/5G/WPS
Weight 300g Power Adapter Input 100V～240V AC，50Hz～60Hz
PowerSupply Requirement 12V DC，1.5A Power Consumption <10w
Working Temperature -10°C ~ +45°C Environment Humidity 5% ~ 95% (Non-condensing)
Module Type SC/UPC Interface Type 4*RJ45
Highlight

AS-ONU39 XPON ONU

,

5.8G WIFI XPON ONU

,

4GE XPON ONU
Leave a Message
Product Description

AS-ONU39 4GE+2.4G&5.8G WIFI XPON ONU



Product Overview

AS-ONU39 model ONU is a user terminal device independently developed in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.AS-ONU39 is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.



Features

♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Bi-directional FEC
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface, and Maximum rate 866Mbps 5.8GHz Wireless
♦ interface, 2T2R external antenna, support multiple SSID Settings
♦ Support DDSN, ALG, DMZ and UPNP

Highlights
♦ Dual band Wi-Fi, Superior performance of Wireless 11n and 11ac Transmission
♦ Compatible with 95% Third-party OLTs (Including Huawei/ZTE/Fiberhome/BT-PON and so on)
♦ Spport EPON/GPON mode and switch mode automatically
♦ Support Route PPPoE/DHCP/Static IP and Bridge mode
♦ Support ONU auto-discovery/Link detection/remote upgrade of software
♦ Support IPv4/IPv6 dual mode
♦ Support Firewall function and IGMP multicast feature
♦ Support LAN IP and DHCP Server configuration
♦ Support Port Forwarding and Loop-Detect





AS-ONU39 4GE+2.4G&5.8G WIFI XPON ONU 0AS-ONU39 4GE+2.4G&5.8G WIFI XPON ONU 1
