AS-ONU38 4GE+VOIP+2.4G&5.8G WIFI

  • AS-ONU38 4GE+VOIP+2.4G&5.8G WIFI
  • AS-ONU38 4GE+VOIP+2.4G&5.8G WIFI
  • AS-ONU38 4GE+VOIP+2.4G&5.8G WIFI
  • AS-ONU38 4GE+VOIP+2.4G&5.8G WIFI
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ONU38
Minimum Order Quantity Negotiable
Price Negotiable

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 4GE+VOIP+WIFI 2.4G&5.8G XPON ONU Optical Signal Access 1*GPON/EPON
Size 205*140*30mm Indicator Light POWER/PON/LOS/LAN1/ LAN2/LAN3/LAN4/TEL1/ USB/2.4G/5G/WPS
Weight 300g Power Adapter Input 100V～240V AC，50Hz～60Hz
PowerSupply Requirement 12V DC，1.5A Power Consumption <10w
Working Temperature -10°C ~ +45°C Environment Humidity 5% ~ 95% (Non-condensing)
Module Type SC/UPC Interface Type 4*RJ45
Highlight

4GE AS-ONU38

,

2.4G&5.8G WIFI AS-ONU38

,

VOIP AS-ONU38
Leave a Message
Product Description

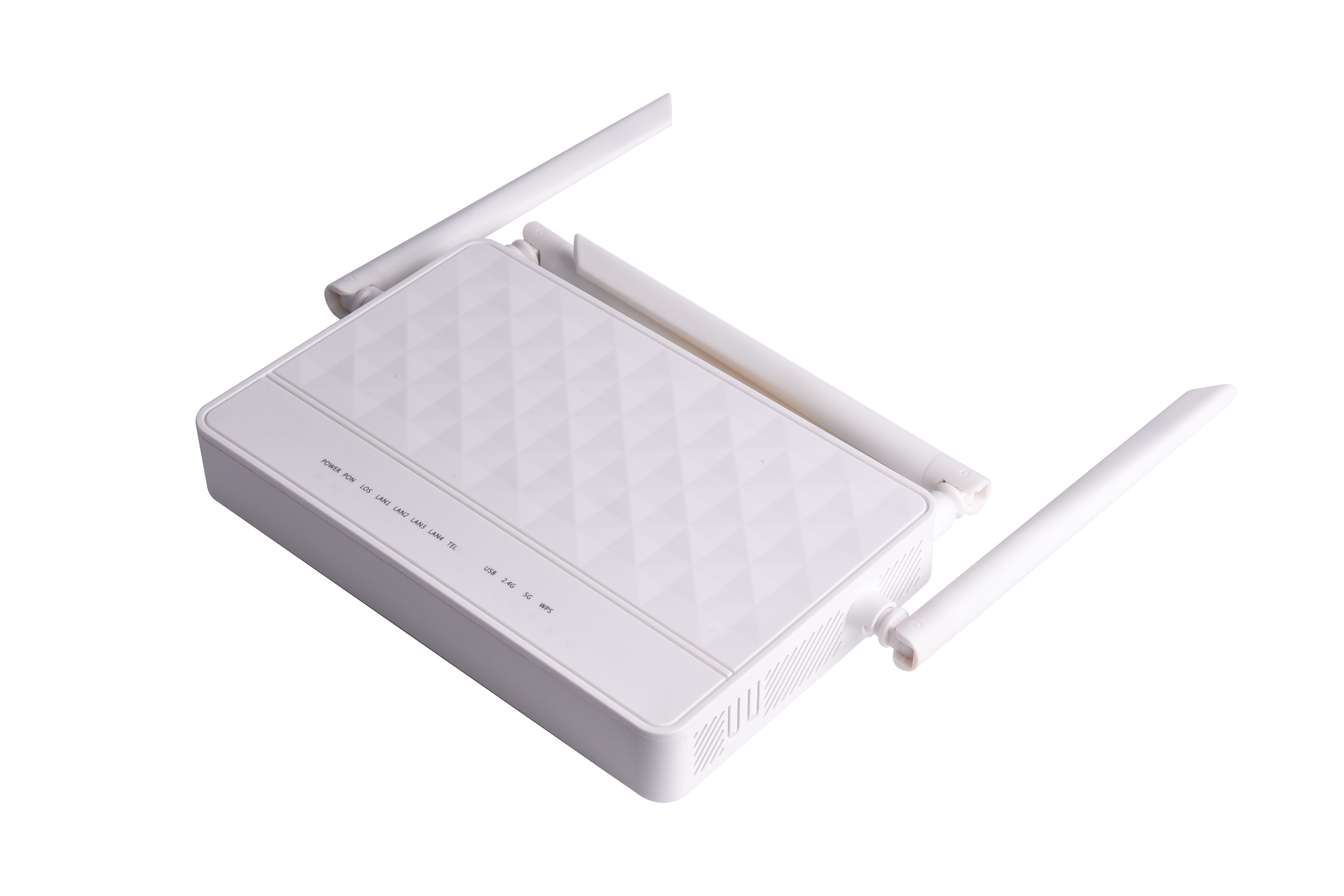

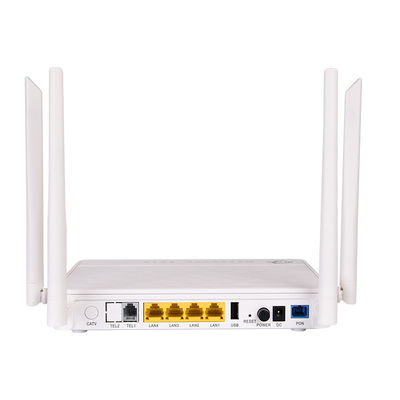

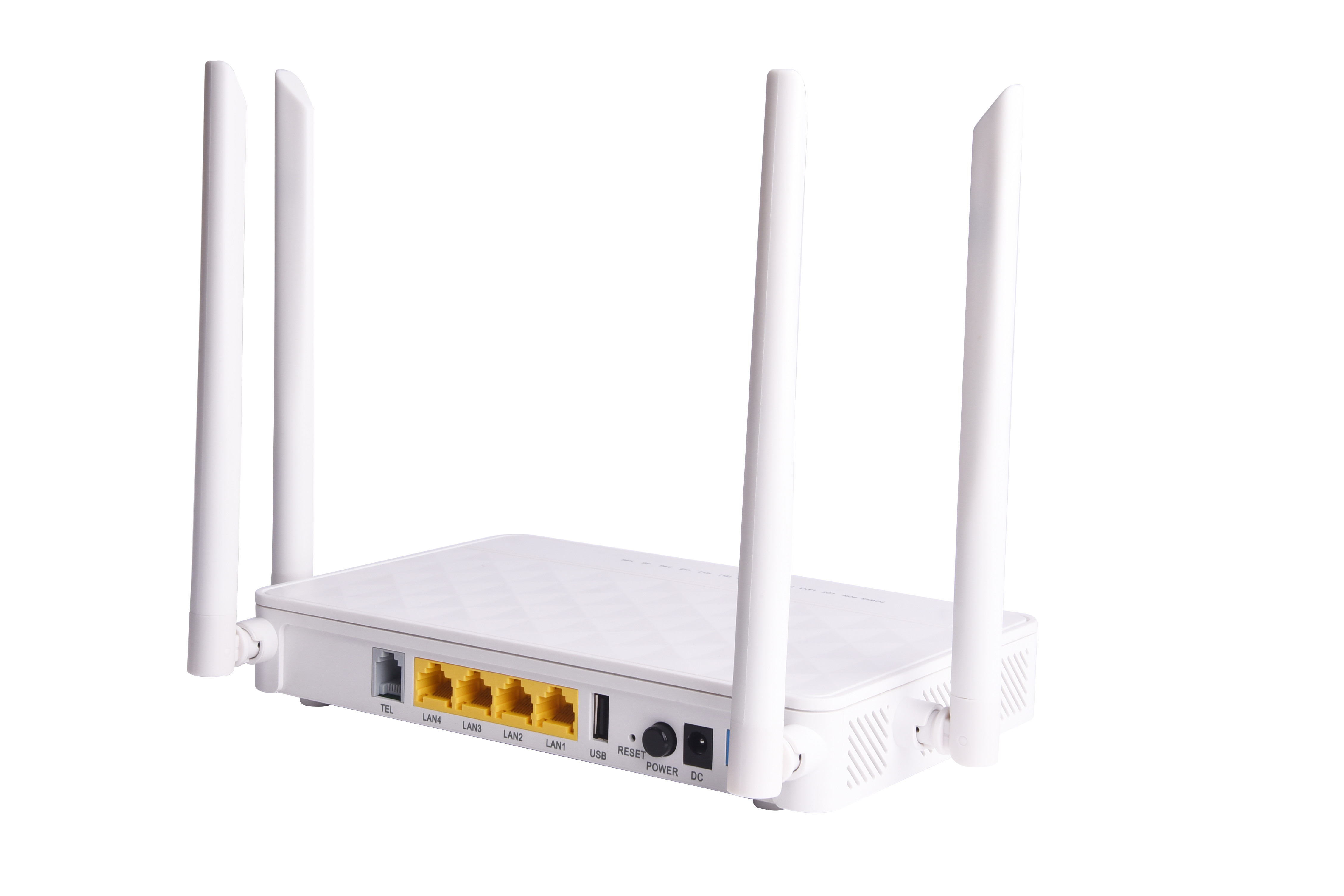

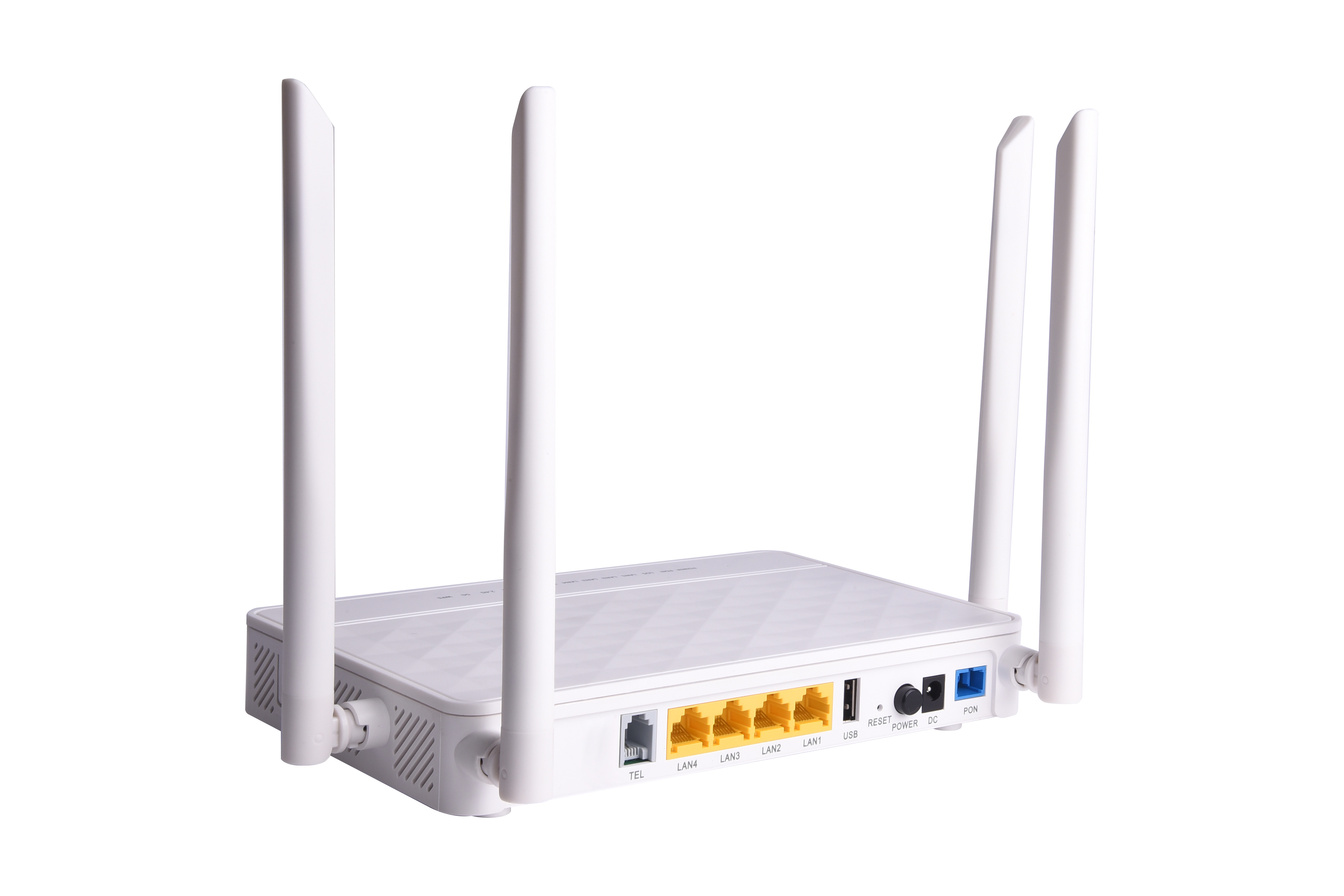

AS-ONU38 4GE+VOIP+2.4G&5.8G WIFI



Product Overview

AS-ONU38 model ONU is a user terminal device independently developed by line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption,which is very suitable for the application requirements of various data services in FTTH networking scenarios ofvarious operators.AS-ONU38 is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.



Features

♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard

♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Bi-directional FEC
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface, and Maximum rate 866Mbps 5.8GHz Wireless
♦ interface, 2T2R external antenna, support multiple SSID Settings
♦ Support DDSN, ALG, DMZ and UPNP
♦ Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909
♦ Support 802.11ac 2x2, Wave-2 compliant with MU-MIMO

Highlights
♦ Dual band Wi-Fi, Superior performance of Wireless 11n and 11ac Transmission
♦ Compatible with 95% Third-party OLTs (Including Huawei/ZTE/Fiberhome/BT-PON and so on)
♦ Spport EPON/GPON mode and switch mode automatically
♦ Support Route PPPoE/DHCP/Static IP and Bridge mode
♦ Support ONU auto-discovery/Link detection/remote upgrade of software
♦ Support IPv4/IPv6 dual mode
♦ Support Firewall function and IGMP multicast feature
♦ Support LAN IP and DHCP Server configuration
♦ Support Port Forwarding and Loop-Detect





AS-ONU38 4GE+VOIP+2.4G&5.8G WIFI 0AS-ONU38 4GE+VOIP+2.4G&5.8G WIFI 1
