AS-ONU29 4GE+VOIP+CATV+2.4G&5.8G WIFI
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 4GE+VOIP+CATV+2.4G&5.8G WIFI | Optical Signal Access | 1*GPON/EPON |
|---|---|---|---|
| Size | 205*140*30mm | Indicator Light | POWER/PON/LOS/LAN1/LAN2/LAN3/LAN4/TEL1/USB 2.4G/5G/WPS/CATV |
| Weight | 300g | Power Adapter Input | 100V～240V AC，50Hz～60Hz |
| PowerSupply Requirement | 12V DC，1.5A | Power Consumption | <10w |
| Working Temperature | -10°C ~ +45°C | Environment Humidity | 5% ~ 95% (Non-condensing) |
| Highlight | VOIP ONU29,2.4G&5.8G WIFI ONU29,CATV ONU29 |
||
Product Description

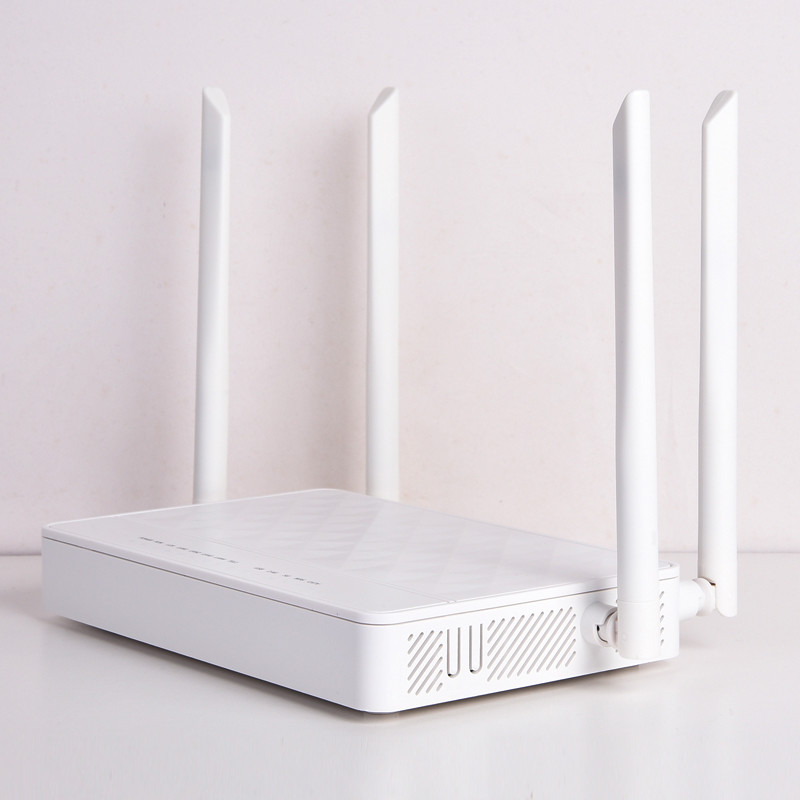

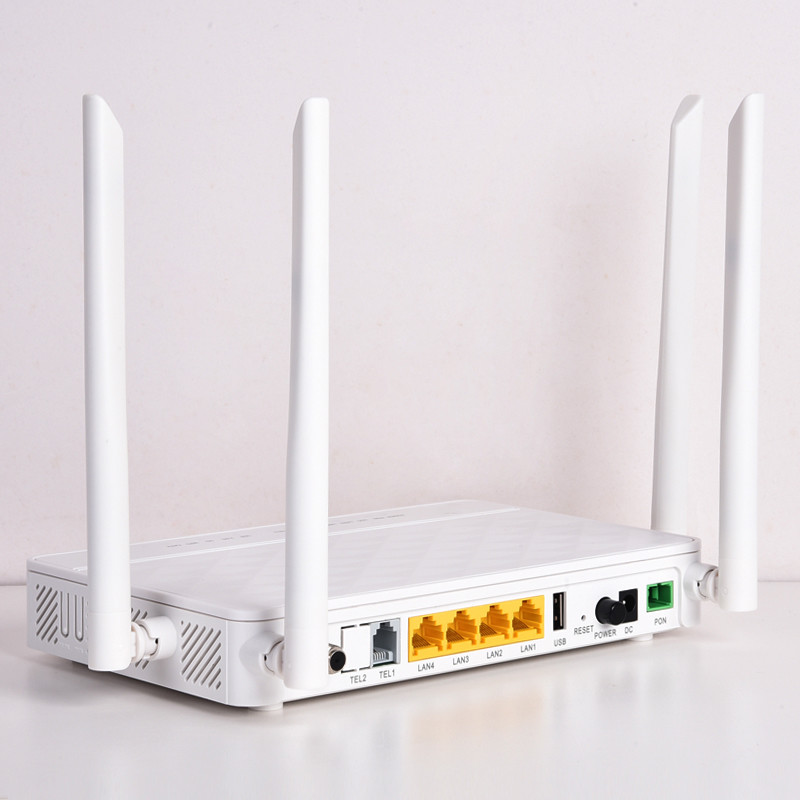

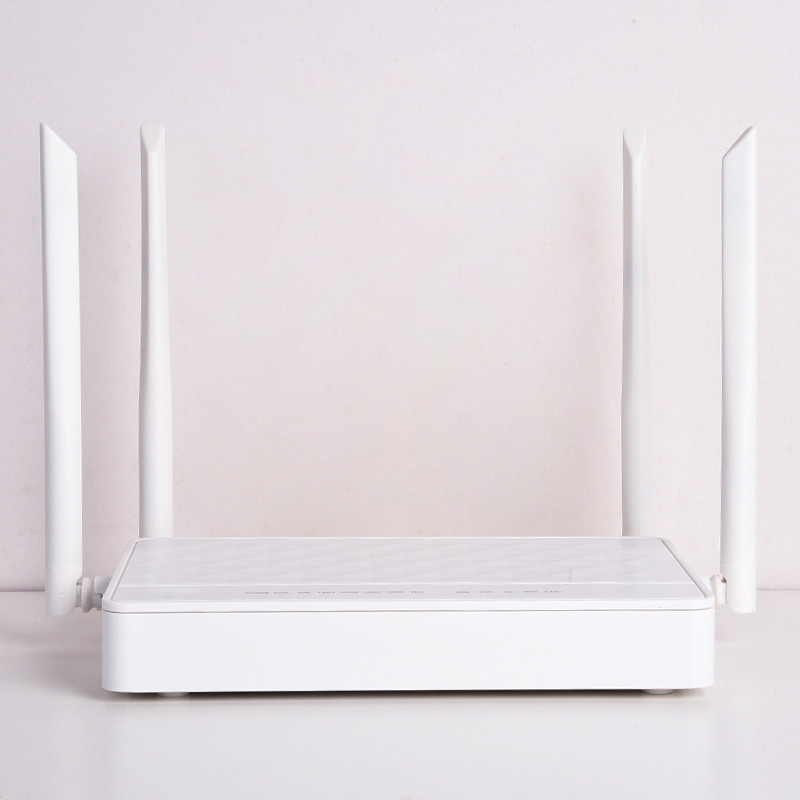

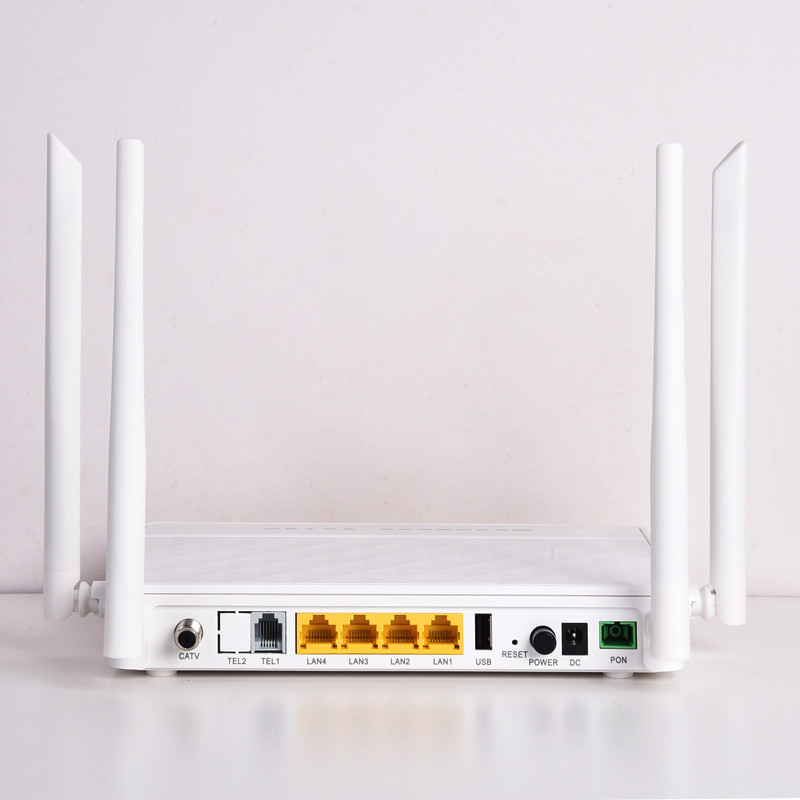

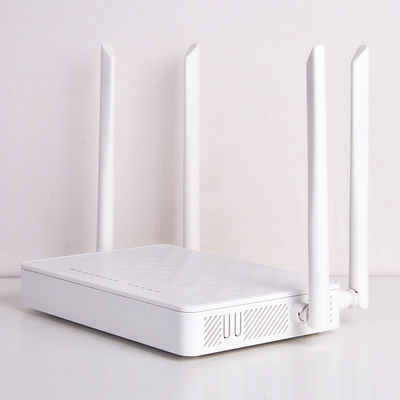

AS-ONU29 4GE+VOIP+CATV+2.4G&5.8G WIFI
Product Overview
AS-ONU29 model ONU is a user terminal device independently developed in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.AS-ONU29 is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
Features
♦ Support EPON/GPON mode and switch mode automatically
♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Bi-directional FEC
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface, and Maximum rate 866Mbps 5.8GHz
♦ Wireless interface, 2T2R external antenna, support multiple SSID Settings
♦ Support DDSN, ALG, DMZ and UPNP
♦ Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909
♦ Support CATV interface for Video Service,support to turn off CATV functionality
Highlights
♦ Dual band Wi-Fi, Superior performance of Wireless 11n and 11ac Transmission
♦ Compatible with 95% Third-party OLTs (Including Huawei/ZTE/Fiberhome/BT-PON and so on)
♦ Spport EPON/GPON mode and switch mode automatically
♦ Support Route PPPoE/DHCP/Static IP and Bridge mode
♦ Support CATV interface for Video Service,supporting remote control by OLT.
♦ Support ONU auto-discovery/Link detection/remote upgrade of software
♦ Support IPv4/IPv6 dual mode
♦ Support Firewall function and IGMP multicast feature
♦ Support LAN IP and DHCP Server configuration
♦ Support Port Forwarding and Loop-Detect
