FTTH Fiber Optic Accessories Sc To Apc Adapter 0.2db

FTTH Fiber Optic Accessories Sc To Apc Adapter 0.2db

  • FTTH Fiber Optic Accessories Sc To Apc Adapter 0.2db
  • FTTH Fiber Optic Accessories Sc To Apc Adapter 0.2db
  • FTTH Fiber Optic Accessories Sc To Apc Adapter 0.2db
FTTH Fiber Optic Accessories Sc To Apc Adapter 0.2db
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ROHS, ISO9001
Model Number: FTTH-SC/APC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Supply Ability: 500,000pcs/week
Contact Now
All Products
Fiber Distribution Box (79)
FTTH Distribution Box (26)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (61)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (77)
Detailed Product Description
Product Name: Fiber Optic Adapter Type: Fiber Adapter & Connectors
Insertion Loss: IL<0.2db Use: Fiber Optic, FTTH
Certification: RoHS Network: Wireless Lan, Bluetooth, Wired LAN, POE, Wifi, 4g, 3G
Color: Green /Blue Material: Plastic
High Light:

0.2db fiber optic adapter

,

sc apc ftth fiber optic adapter

,

0.2db fiber adapter

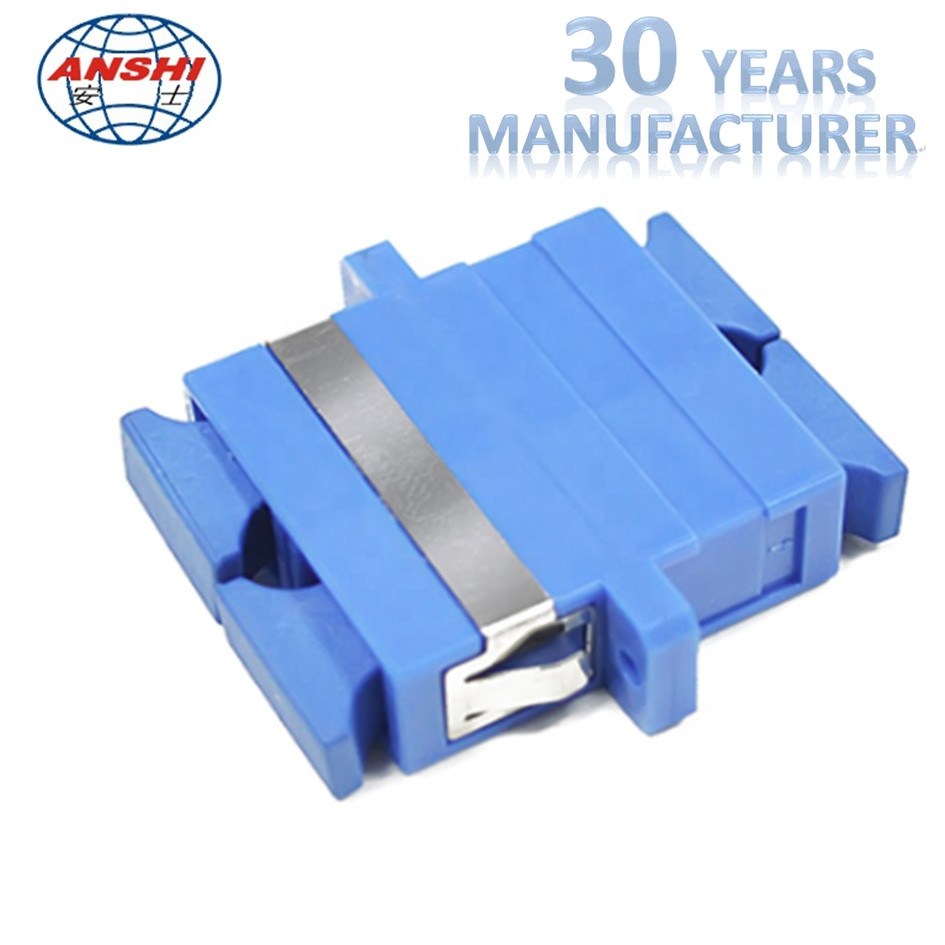

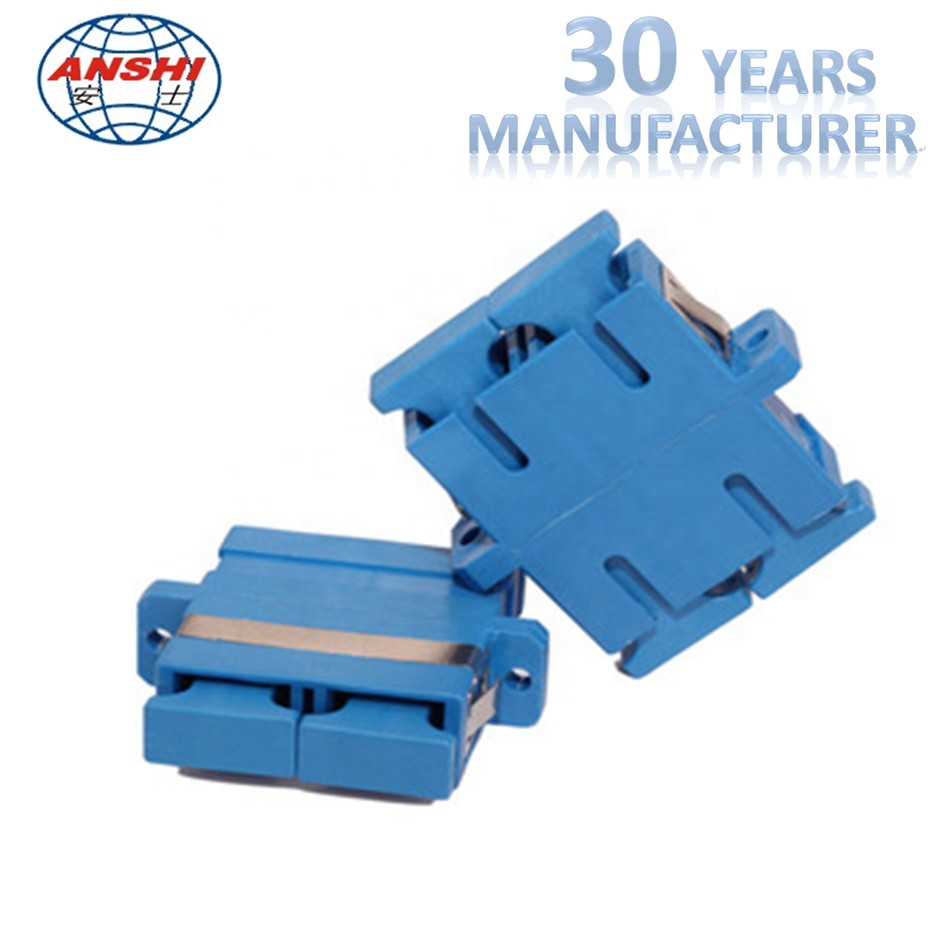

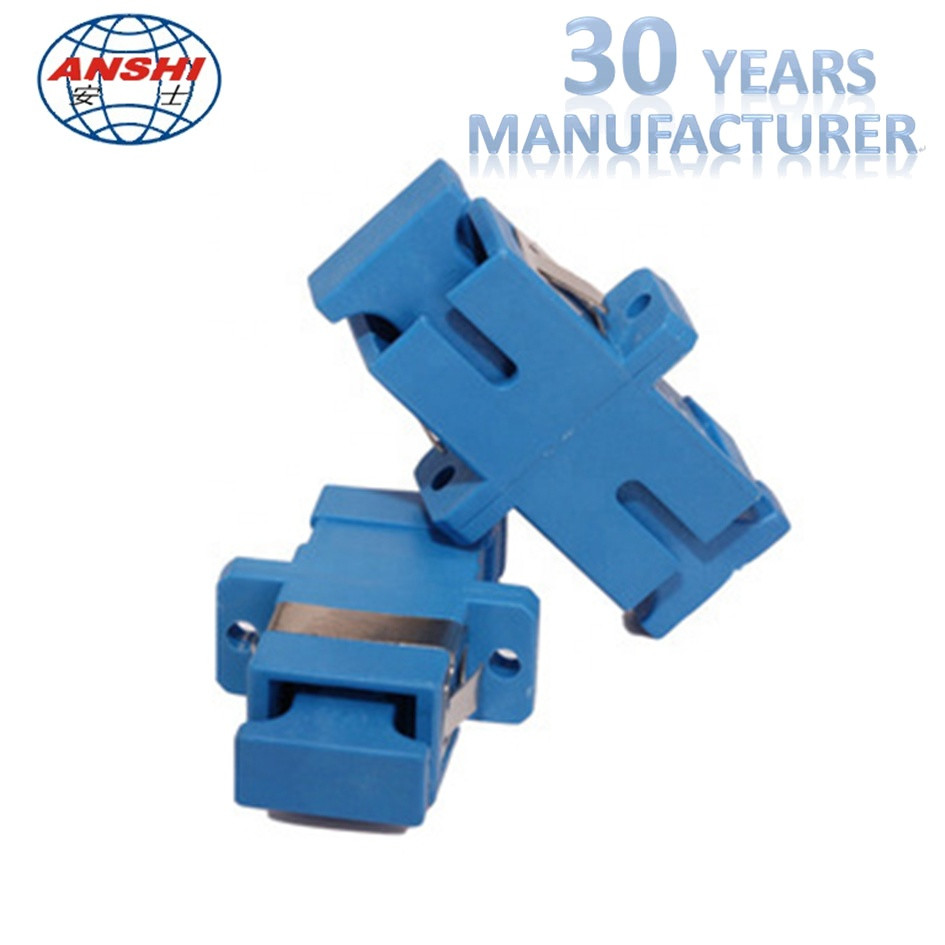

Anshi Green SC/APC Singlemode SM Simplex fiber optic adaptor

Product Description

Quick Details

  1. Type: SC/APC
  2. Mode: Singlemode and Multimode
  3. Fiber core: Simplex and Duplex
  4. Structure: with flange
  5. Sleeve: Ceramic sleeve
  6. Housing: Plastic housing

Description:

Fiber Optic Adapter is the mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.



Features:

  1. Standardization and Uniformization of Metal Casing
  2. Zirconia or Bronze Sleeve
  3. Low Insertion Loss, high Return loss
  4. Precision mechanical dimension
  5. Good repeatability, interchangeability and environmental stability

Application:



  1. Fiber optic communication network
  2. Optical Broadband Access Network
  3. CATV system, Optic LAN
  4. Optic instrumentation
  5. Local Area Network
  6. Telecommunication Networks
  7. Equipment Test

Specification:

Type SC/FC/ST/LC/MU/MTRJ/MPO
Insertion Loss(dB) SM≤0.2dB, MM≤0.3dB
Repeatability(dB) ≤0.1dB
Mechanism Durability(500 cycles, dB) ≤0.2dB
Temperature Range -40°C-+85°C
Material of sleeve Zirconia or Bronze



Reliability testing:



Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB

FTTH Fiber Optic Accessories Sc To Apc Adapter 0.2db 0FTTH Fiber Optic Accessories Sc To Apc Adapter 0.2db 1
