SM SC / UPC Simplex Fttx Multimode Fiber Coupler With Translucent Dust Cap
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | RoHS | Product Name | Fiber Optic Adapter |
|---|---|---|---|
| Type | FTTH-SC-Trans | Insertion Loss | IL<0.2dB |
| Type Of Mode | Multimode, Singlemode | Use | FTTx Solutions, FTTX |
| Return Loss | RL>50dB | Storage Temperature | -45-85°c |
| Network | Wifi, 4g, 3G | Color | Blue |
| Highlight | sc upc multimode fiber coupler,fttx multimode fiber coupler,fttx fiber optic cable coupler |
||
Product Description

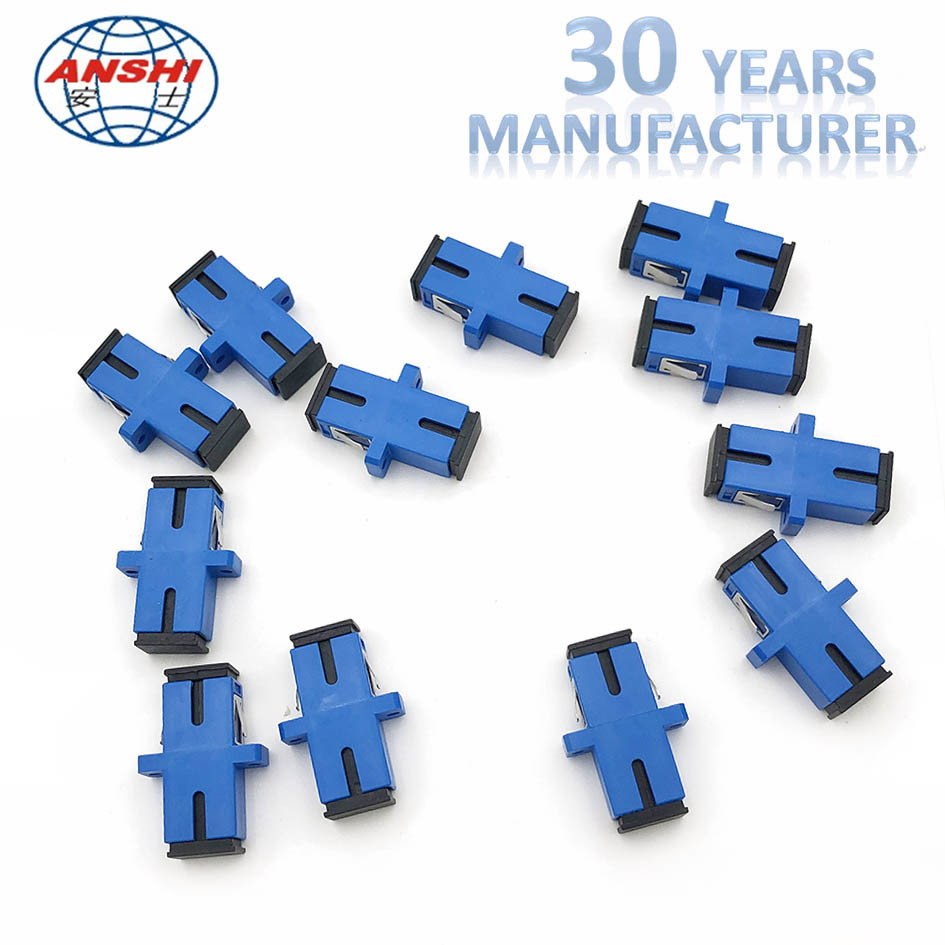

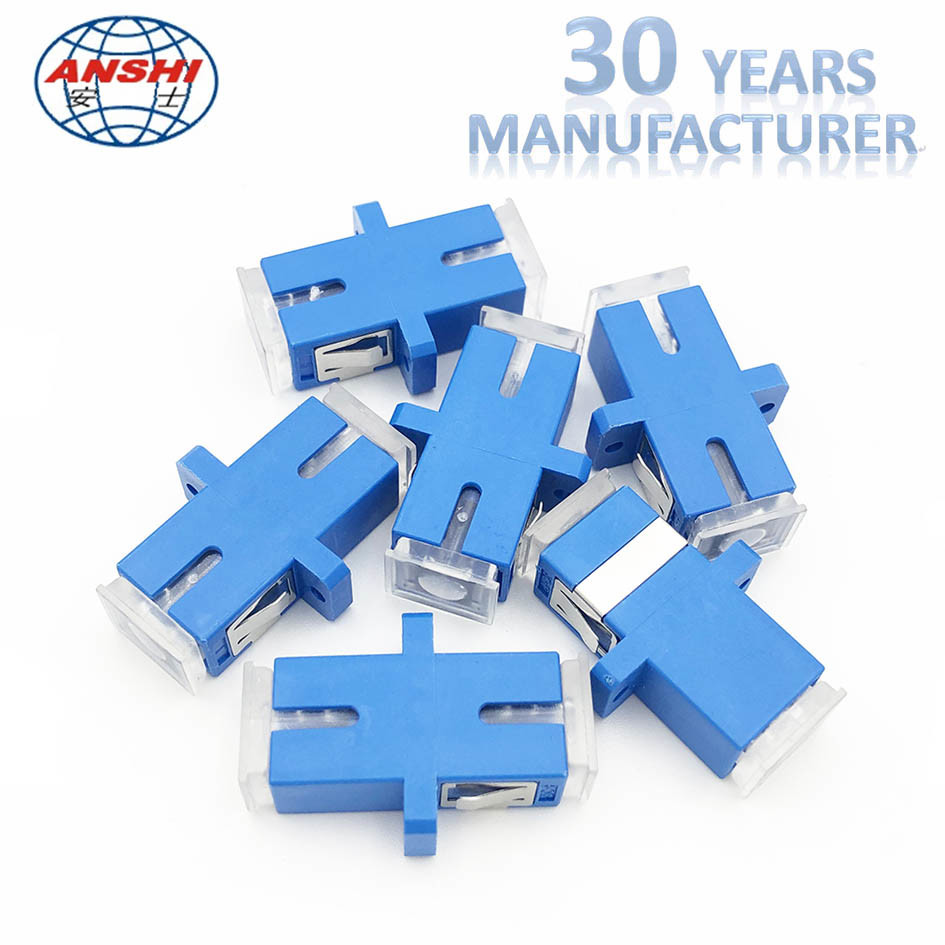

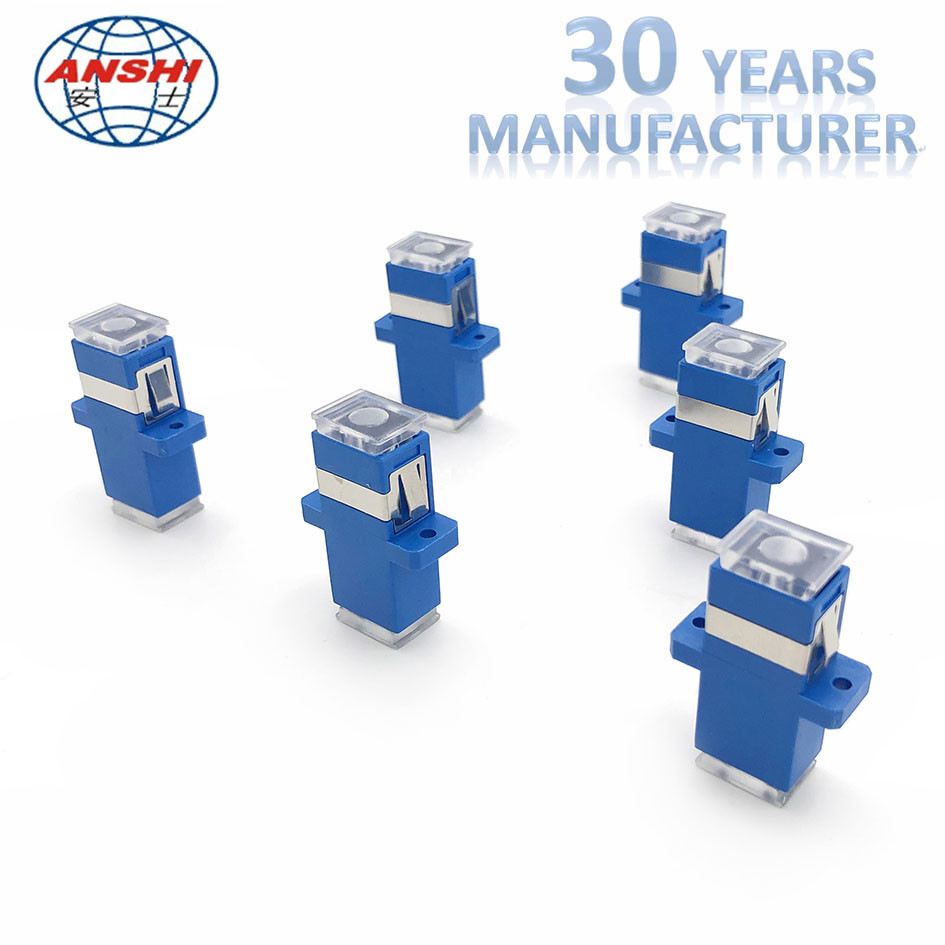

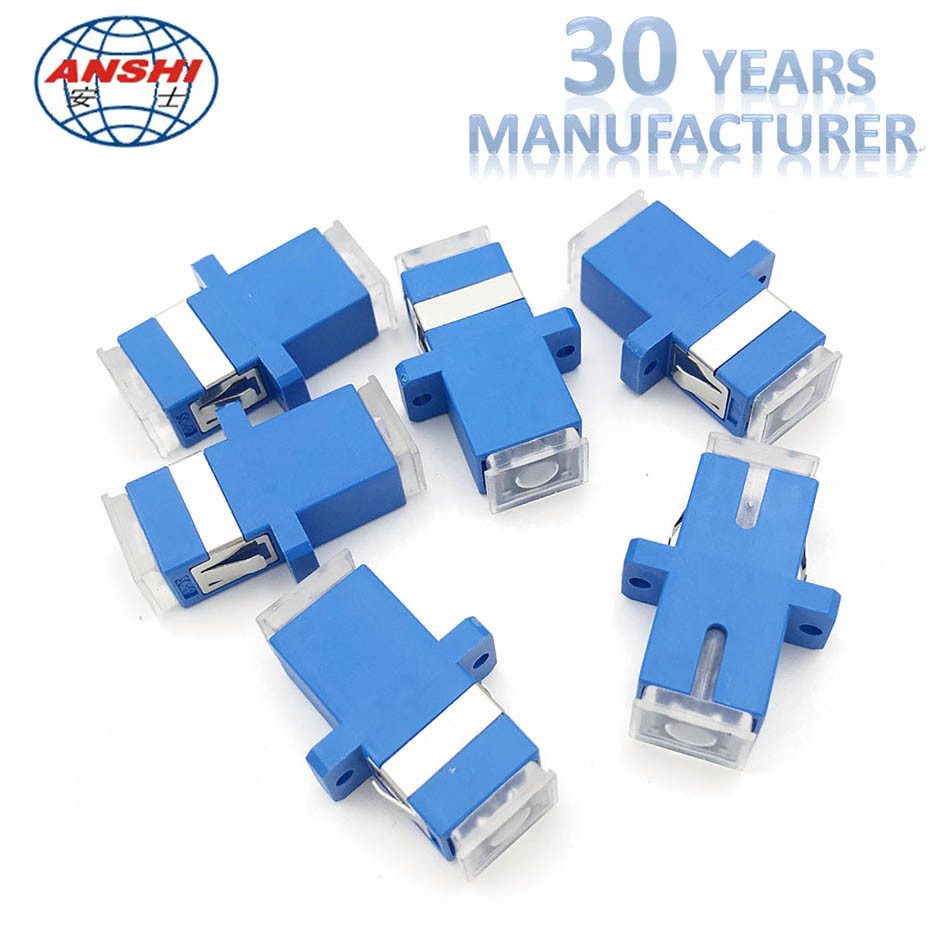

Adapter SM SC/UPC simplex with translucent dust cap
Product Description
Adapters for use in fiber optic termination uts and distribution frames. The alignment sleeve, inside the adapter, guarantees high precision alignment of two fiber optic connectors. Different types of adapters are available for different kinds of patchpanels.
| ameter | Unit | LC, SC, FC, ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
1. Features:
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- Precision anti-rotation key and corrosion resistant body
- UL-rated plastic housing
- Telcordia style boots
- Free-floating ceramic ferrule
- Zirconia sleeves or Phosphor bronze sleeves
- D-shaped easily installs into panel mount
- RoHS compliant
2. Applications:
- Fiber Optic Telecommunications
- LAN (Local Area Network)
- FTTH (Fiber To The Home)
- CATV&CCTV System
- High speed transmission systems
- Fiber optic sensing
- Industtial, Mechanical and Military
