1310nm 1x32 Plc Splitter Fiber Optic Accessories

1310nm 1x32 Plc Splitter Fiber Optic Accessories

  • 1310nm 1x32 Plc Splitter Fiber Optic Accessories
  • 1310nm 1x32 Plc Splitter Fiber Optic Accessories
1310nm 1x32 Plc Splitter Fiber Optic Accessories
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ISO9001, SGS
Model Number: AS-OSC-FC-1X32
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Delivery Time: 10000pcs/week
Contact Now
Detailed Product Description
Name: 1x32 PLC Splitter Connector Type: FC
Insertion Loss: ≥16.2dB Operation Wavelength (nm): 1310~1550
Return Loss: ≥50dB Working Temperature: -40℃~85℃
High Light:

1x32 splitter


1x32 plc splitter


1310nm 1x32 plc splitter

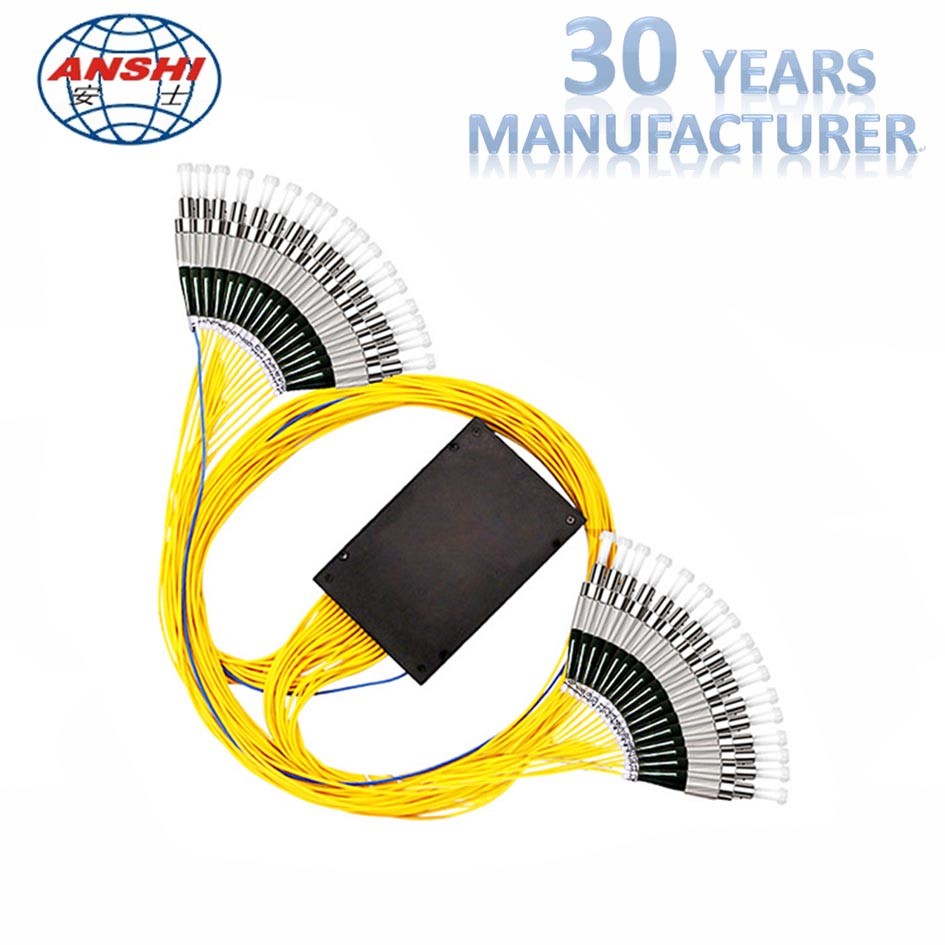

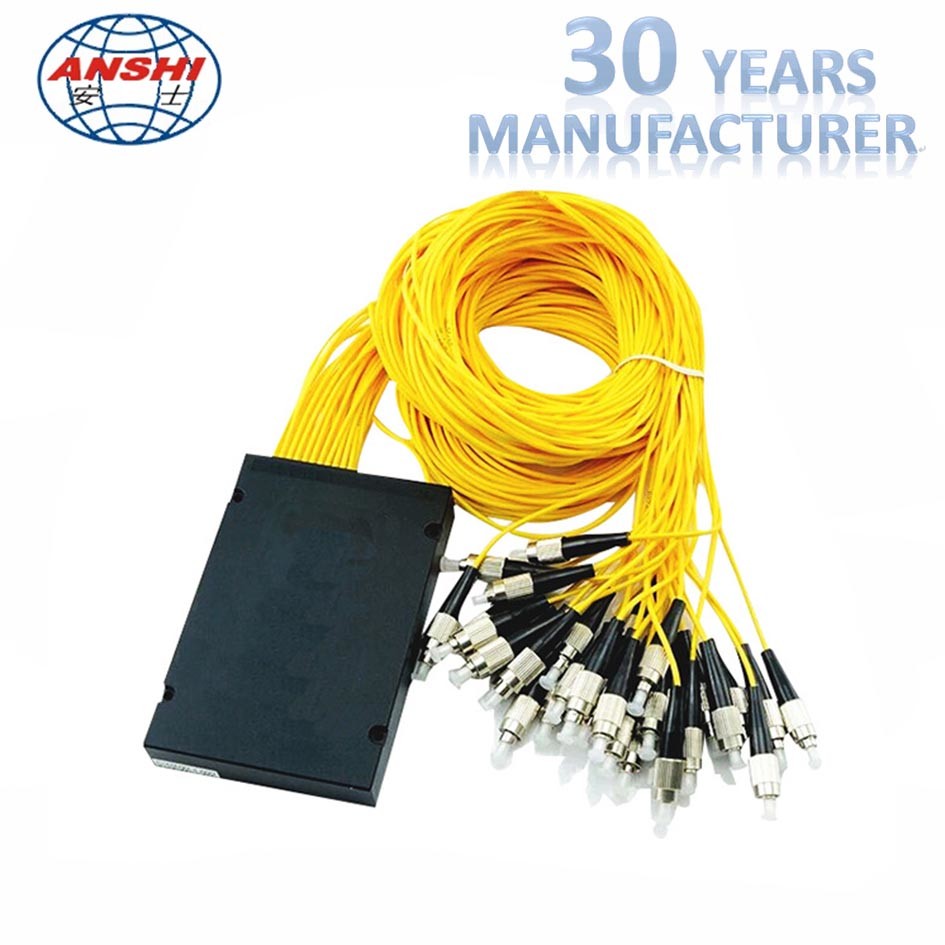

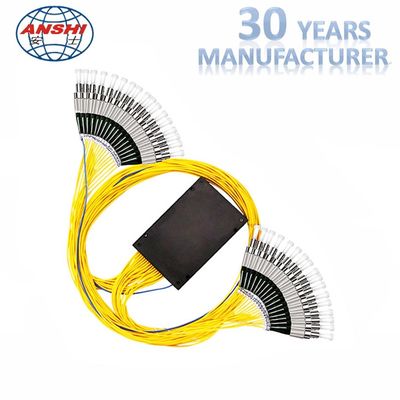

ANSHI 1*32 FC PLC Splitter FTTH LGX Box Type

Key Specifications/Special Features:

PLC splitters are single mode splitters with an equal split ratio from one input fiber to multiple output fibers
This PLC splitter is 1x2, with 1 input fiber and 2 output fibers, and is packed in insertion box, it can be fixed in different fiber distribution boxes and FTTH boxes

Product Information:

Place of origin: Zhejiang, China
Delivery: free samples, and fast delivery, according to the quantity, we make the delivery within 3-10 working days, and if you are urgent for the products, just let me know, and we will try to ahead the delivery date




Description Unit 1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength nm 1310 ~ 1550nm
Insertion Loss dB 3.6 7.2 10.2 13.5 16.2 20.5
Polarization dependent loss dB 0.2 0.2 0.3 0.3 0.3 0.4
Uniformity dB 0.4 0.6 0.8 1.0 1.2 1.8
Return loss ≥50dB
Working temperature -40℃~85℃


The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
