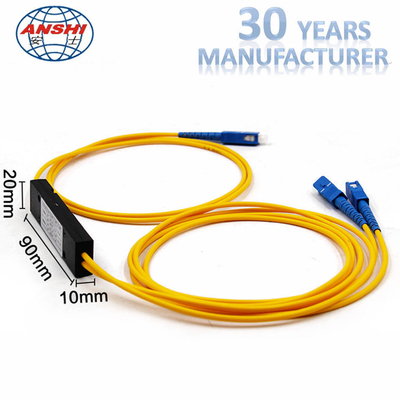

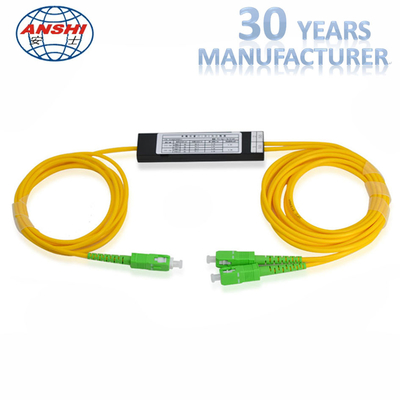

SC / UPC SC / APC PLC Fiber Optic Splitter 1x2 Cassette Type

  • SC / UPC SC / APC PLC Fiber Optic Splitter 1x2 Cassette Type
  • SC / UPC SC / APC PLC Fiber Optic Splitter 1x2 Cassette Type
Place of Origin China
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-OSC-1X2
Minimum Order Quantity 10
Price Negotiable
Delivery Time 10000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1x2 PLC Splitter Connector Type SC/APC ; SC/UPC;FC
Insertion Loss 3.6dB Operation Wavelength (nm) 1310~1550
Uniformity 0.4 Reflection Loss 55dB
Directivity 55dB Working Temperature -40℃~85℃
Highlight

PLC Fiber Optic Splitter 1x2

,

SC / UPC Fiber Optic Splitter 1x2

,

splitter fibra optica 1x2
Leave a Message
Product Description



ANSHI 1*2 SC/UPC SC/APC FC PLC Splitter FTTH LGX Box Type

Key Specifications/Special Features:

PLC splitters are single mode splitters with an equal split ratio from one input fiber to multiple output fibers
This PLC splitter is 1x2, with 1 input fiber and 2 output fibers, and is packed in insertion box, it can be fixed in different fiber distribution boxes and FTTH boxes


Product Information:


Place of origin: Zhejiang, China
Fiber type: G657A1 or G652D
Fiber length: >0.5m
Box size: 130x100x25mm PC
Delivery: free samples, and fast delivery, according to the quantity, we make the delivery within 3-10 working days, and if you are urgent for the products, just let me know, and we will try to ahead the delivery date



Specifications:



Description Unit 1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength nm 1310 ~ 1550nm
Insertion Loss dB 3.6 7.2 10.2 13.5 16.2 20.5
Polarization dependent loss dB 0.2 0.2 0.3 0.3 0.3 0.4
Uniformity dB 0.4 0.6 0.8 1.0 1.2 1.8
Directivity dB 55
Wave correlation loss dB 0.5
Working temperature -40℃~85℃



The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.



SC / UPC SC / APC PLC Fiber Optic Splitter 1x2 Cassette Type 0

SC / UPC SC / APC PLC Fiber Optic Splitter 1x2 Cassette Type 1
