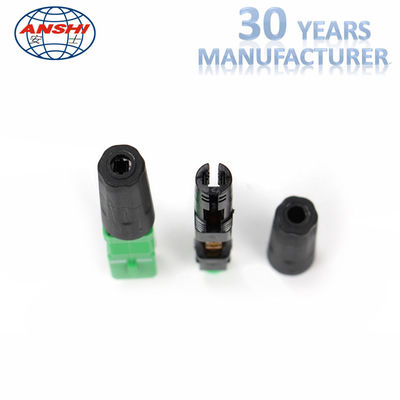

FTTH SC APC UPC optic fiber fast connector single mode Quick Connector for fiber optic equipment

FTTH SC APC UPC optic fiber fast connector single mode Quick Connector for fiber optic equipment

  • FTTH SC APC UPC optic fiber fast connector single mode Quick Connector for fiber optic equipment
  • FTTH SC APC UPC optic fiber fast connector single mode Quick Connector for fiber optic equipment
  • FTTH SC APC UPC optic fiber fast connector single mode Quick Connector for fiber optic equipment
FTTH SC APC UPC optic fiber fast connector single mode Quick Connector for fiber optic equipment
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ROHS, ISO9001
Model Number: AS-ODF-KJT-SC/APC-11
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: D/A, D/P, T/T, L/C, Western Union, MoneyGram
Supply Ability: 500,000pcs/week
Contact Now
All Products
Fiber Distribution Box (79)
FTTH Distribution Box (26)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (61)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (77)
Detailed Product Description
Product Name: Quick Connector Type: SC/APC
No. Of Fiber: 1 Core Application: FTTH System
Insertion Loss: ≤ 0.25dB Return Loss: ≥50dB
High Light:

SC/APC Fiber Optic Fast Connector

,

0.25dB Fiber Optic Fast Connector

,

FTTH Fiber Optic Fast Connector

FTTH SC APC UPC optic fiber fast connector single mode Quick Connector for fiber optic equipment



Product Features:

  • Low insertion loss and back reflection loss
  • Ferrule end surface predomed
  • Precision anti-rotation key and corrosion resistant body
  • UL-rated plastic housing
  • Boots in a variety of colors
  • Telcordia style boots
  • Free-floating ceramic ferrule

Application:

  • CATV
  • Active device termination
  • Telecommunication networks
  • Metro
  • Local Area Networks (LANs)
  • Data processing networks
  • Test equipment
  • Premise installation
  • Wide Area Networks(WANs)

Optical Characteristics:

Category Specification Remarks
Aoolicable for Drop cable.Indoor cable
Fiber mode Single mode or Multi mode
Operation time S About 50(no fiber cut)
Insertion Loss dB ≤0.3
Insertion Loss Typical value dB 0.3
Return Loss dB ≥50
Fastening strength of naked fiber N ≥5
Tensile strength N ≥50
Reusable Time ≥10 times
Operating Temperature ℃ -40~+85
On-line tensile strength(20N) dB ΔIL≤0.3
Mechanical durability(500 times) dB ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times) dB ΔIL≤0.3















































Tag:

fiber optic cable accessories,

optical cable accessories,

fiber cable accessories
