Apc Fiber Optic Quick Connector

Product Details:

Place of Origin:	China
Brand Name:	ANSHI
Certification:	ROHS, ISO9001
Model Number:	AS-ODF-KJT-SC/APC-7

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Supply Ability:	500,000pcs/week

Contact Now

All Products

Fiber Distribution Box (81)

FTTH Distribution Box (27)

Cable Distribution Box (51)

LSA Plus Module (85)

MDF Main Distribution Frame (38)

Subscriber Terminal Block (30)

Rack Mount Patch Panel (62)

RJ45 Keystone Jack (64)

Horizontal Cable Manager (17)

Network Cable Faceplate (47)

110 Terminal Block (16)

ODF Optical Distribution Frame (24)

Optical Fiber Patch Cord (24)

Fiber Optic Splice Closure (11)

IDC Terminal Block (33)

Network Punch Down Tool (30)

Fiber Optic Accessories (79)

Detailed Product Description

Product Name:	Quick Connector	Working Wavelength:	Working Wavelength
Repeatability:	Repeatability	Type:	SC/APC
Mode:	Singlemode Or Multimode	Application:	FTTH System
High Light:	SC Fiber Optic Quick Connector , Apc Fiber Optic Quick Connector

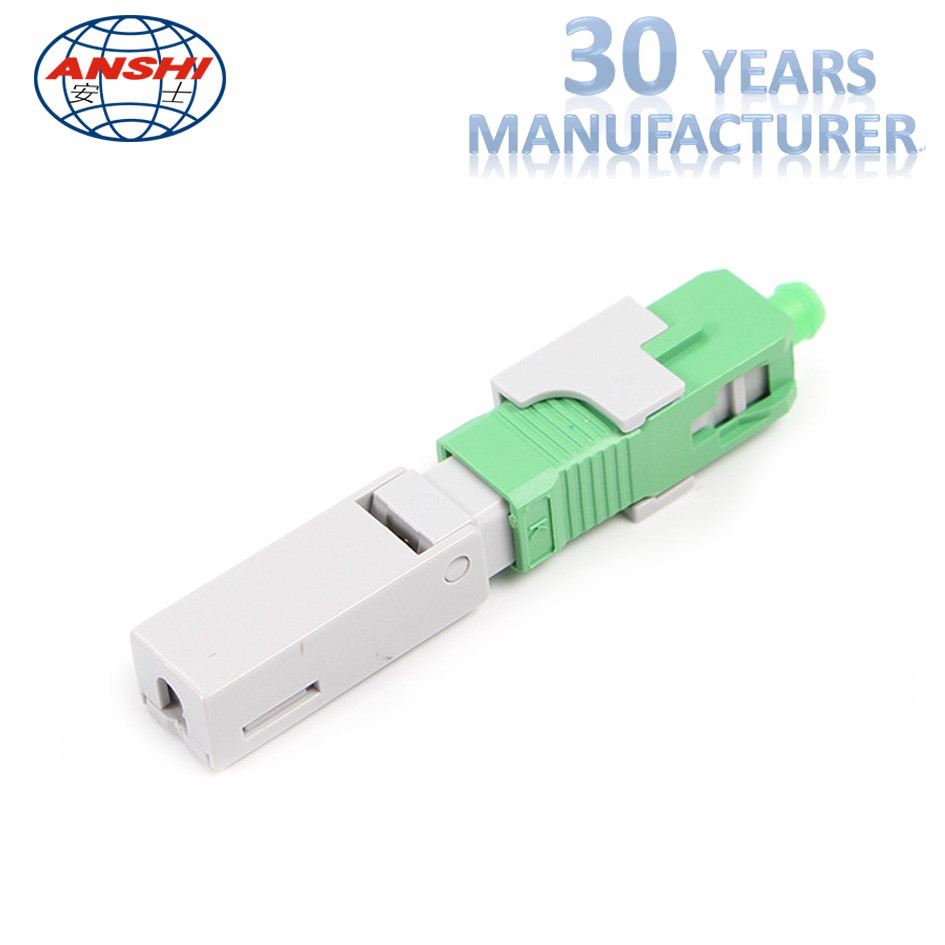

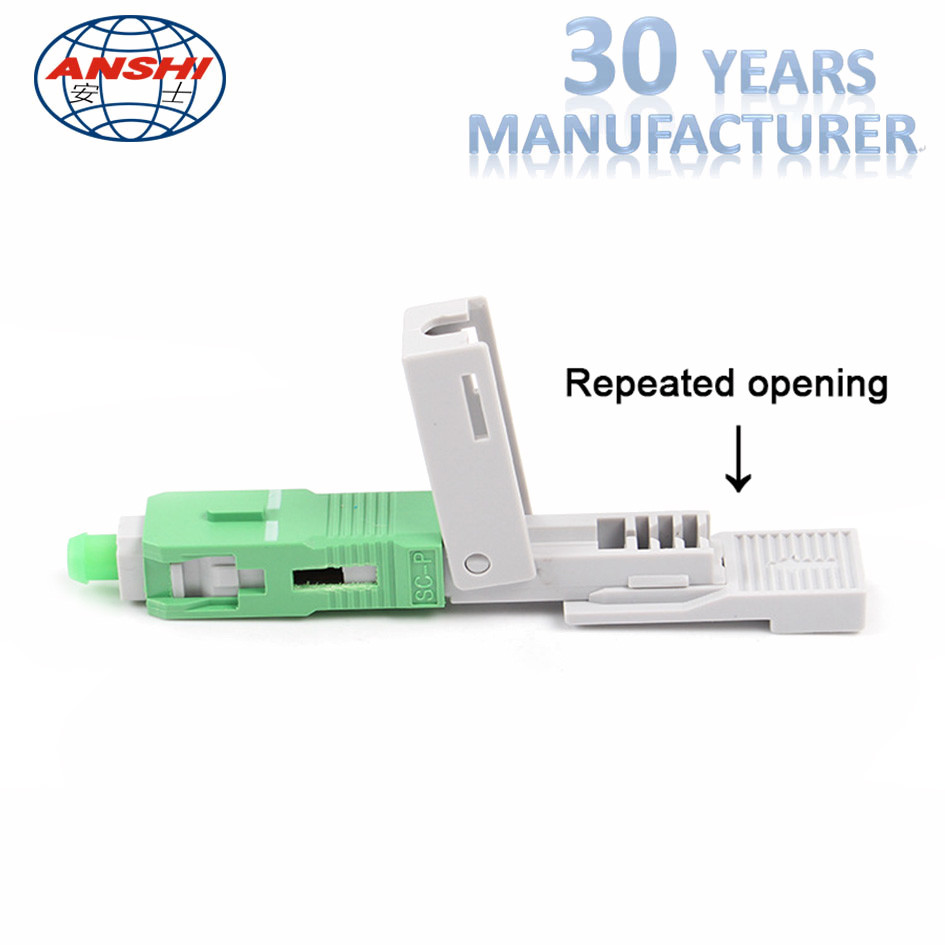

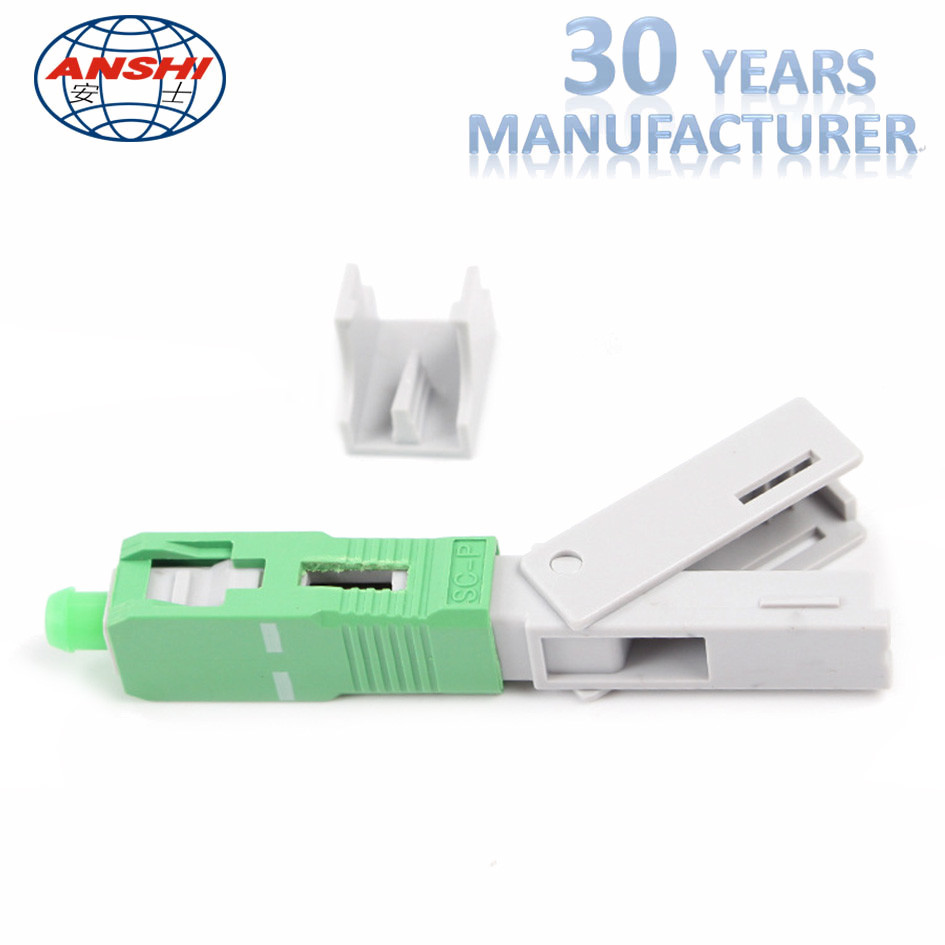

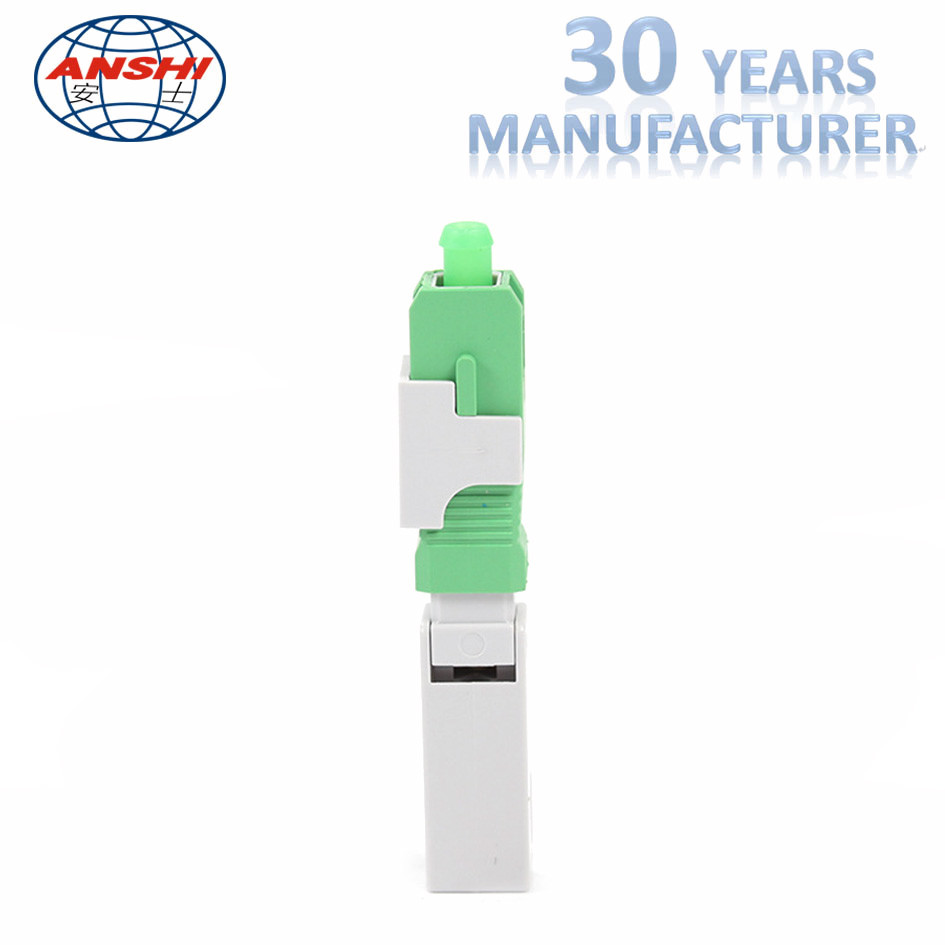

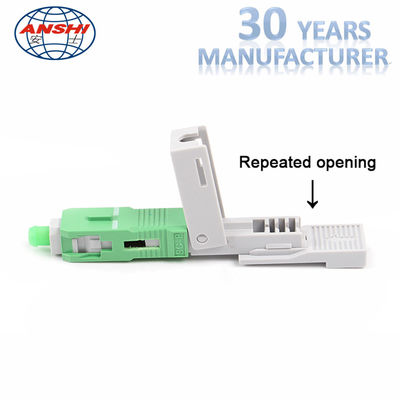

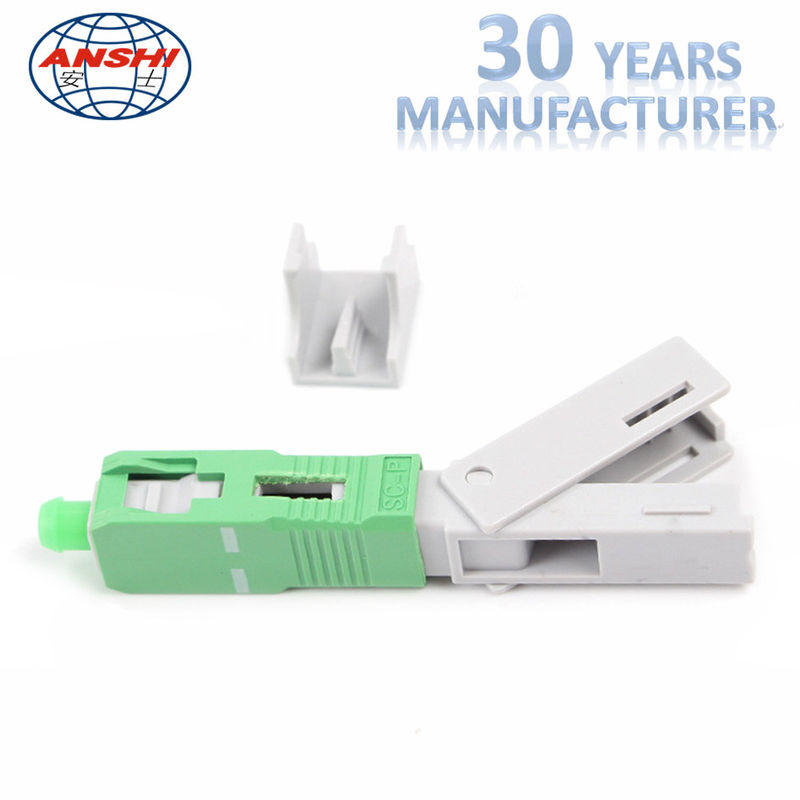

FTTH SC / APC Optical Fiber Quick Connector Single Mode Fast Connector

Product Attributes

Supply pre-embedded FTTH SC/APC fiber optic quick connector

Features:

1. FTTH project usable

2. Field installable

3. Insert loss less than 0.15dB

4. Metal V-shape cavity work well in high and low temperature

5. Installation less than 1 minutes

6. Reliable and superior optical performance

7. Cable Tensile test complies with Telcordia GR-326-COR

Application:

1. Distribution frames

2. Maintenance or emergency restoration of fiber networks

3. Patch panels

4. FTTH Outlets

5. Field word

ITEM	Technical Parameters
Applicable for	Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter	SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75°C
On-line tensile strength (20 N)	IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)	IL ≤ 0.
