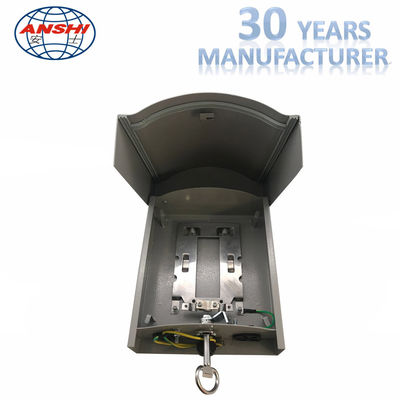

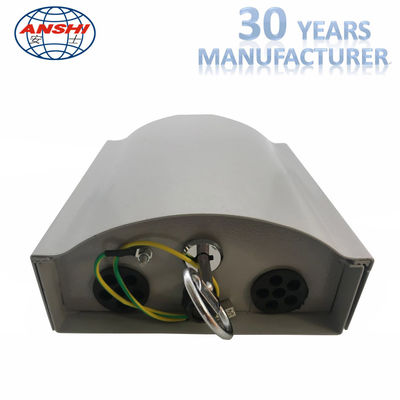

Grey Color Optical Termination Box / Telecom Distribution Box 10 Pairs

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO 90001, SGS, DAS
Minimum Order Quantity Can Discuss
Price Negotiable
Supply Ability 5000 Pieces per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Copper Outdoor Termination Box Material Metal
Color Grey Type 10 Pairs
Lock Key
Highlight

ftth distribution box

,

indoor distribution box

Leave a Message
Product Description

10 Pairs Metal Distribution Box with earthing system with LSA Profile Module




Specifications:

1. Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;
2. The modules are compatible with KRONE LSA-PLUS modules.
3. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires
4. Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
5. Internal diameter of connection wire: 0.4-0.6 mm
6. The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard

7. Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections
8. Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition
9. Intermediate resistance: no more than 3m ohm under standard examination condition
10. Dielectric strength: according to industry standard
11. Specification:60-100 pairs,Waterless,every specification has connection or disconnection types
12. Life: durability 200 cycles
