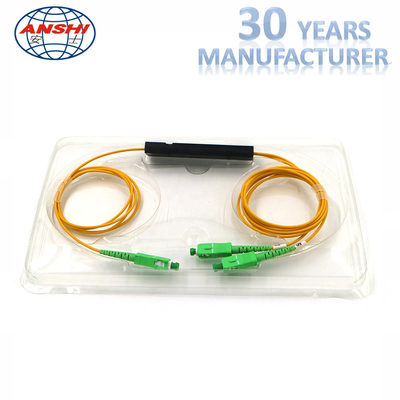

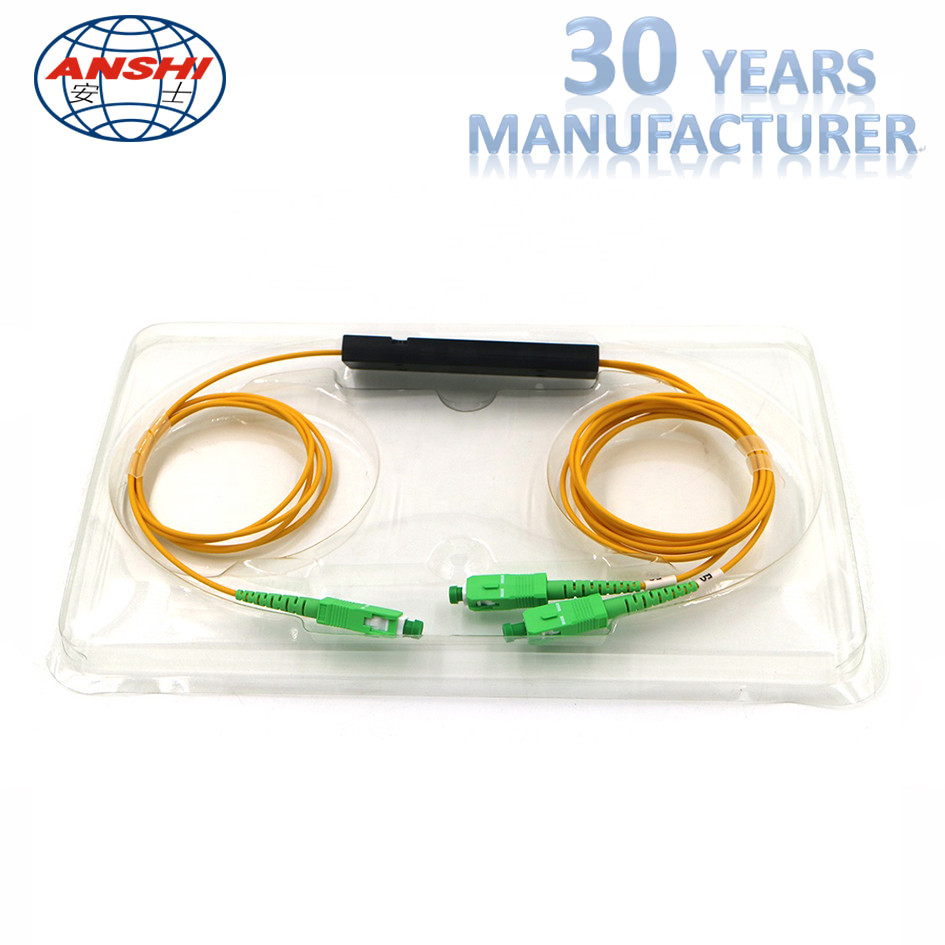

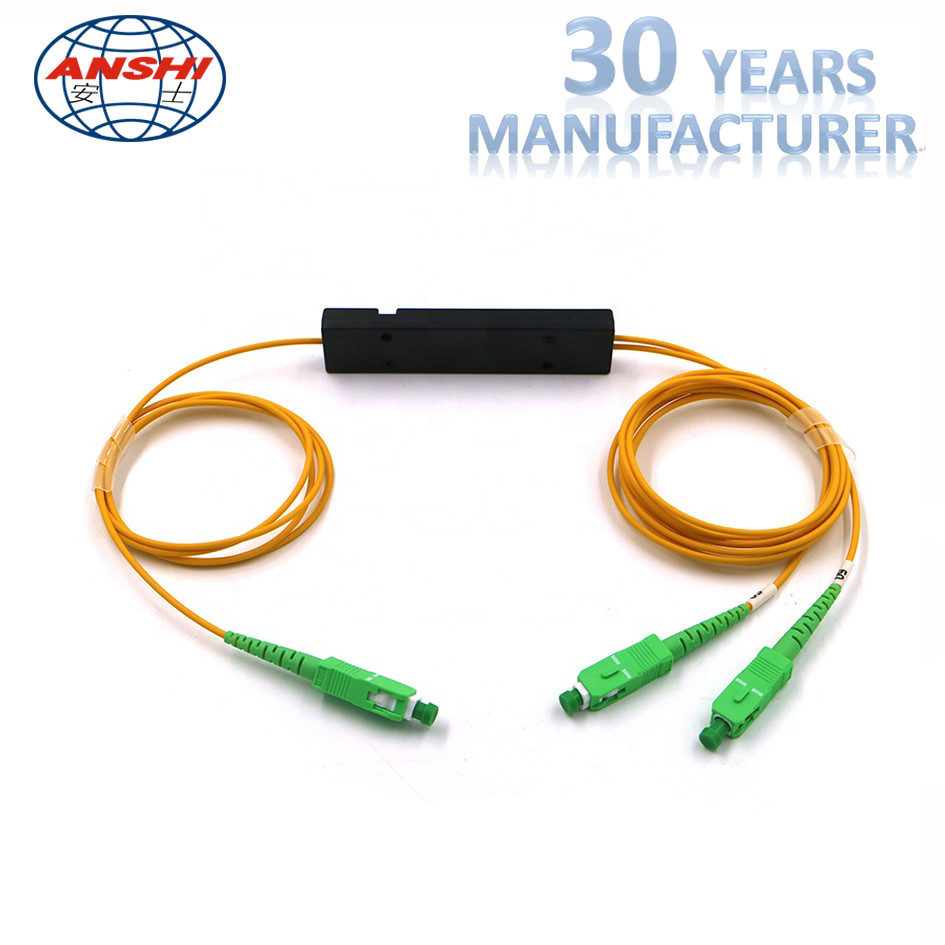

1x2 PLC Splitter FTTH Fiber Optic Splitter

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | 1X2 Optic Plc Splitter | Connector Type | SC/APC |
---|---|---|---|
Channel Number | 2 Way | Insertion Loss | ≤0.20 |
Wavelength | 1310nm/1490nm/ 1550nm | Application | CATV/FTTH/LAN/PON |
Highlight | Fiber Optic Distribution Box,Outdoor Distribution Box |
PLC splitter is a quartz substrate integrated waveguide optical power distribution device featuring compact size, broad working wavelength range, high reliability, and excellent light uniformity. It is specifically designed for passive optical networks (EPON, BPON, GPON) to connect local and terminal equipment while distributing optical signals.
The bare PLC splitter consists of a PLC splitter chip and input/output optical fiber arrays housed in a square metal tube, available with 0.9mm or 250μm bare fiber outputs. These fibers can be welded or processed with various types of optical fiber connectors.
Qingdao APT offers a comprehensive series of 1xN and 2xN splitters for specialized applications. All products comply with YD/T1117-2001 and YD-T 2000-209 standards and are TLC certified for network deployment.
Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
---|---|---|---|---|---|---|
Operating Wavelength (nm) | 1260~1650 | |||||
Fiber Type | G657A1 or customer specified | |||||
Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature Stability (-40~85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Operating Temperature (℃) | -40~85 | |||||
Storage Temperature (℃) | -40~85 | |||||
Device Dimension (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 | 60×12×4 |
- Continuous coverage with different fibers
- Full fiber core structure
- Reusable design
- Optional fiber types
- Low additional loss
- Minimal insertion loss
- Multiple configuration options (2×2, 1×2, 1×4, up to 1×128)
- Optical Signal Distribution
- Data Communications
- LAN and CATV Systems
- FTTX Deployment
- FTTH Network Infrastructure
- Passive Optical Networks (PON)
- Measuring Systems and Laser Systems
- DWDM and CWDM Systems
